Disassembly and Reassembly

HUB AND BEARING
Tools Required
KM-266-A Installer

Disassembly Procedure
1. Raise and suitably support the vehicle.
2. Remove the hub and bearing assembly from the vehicle.

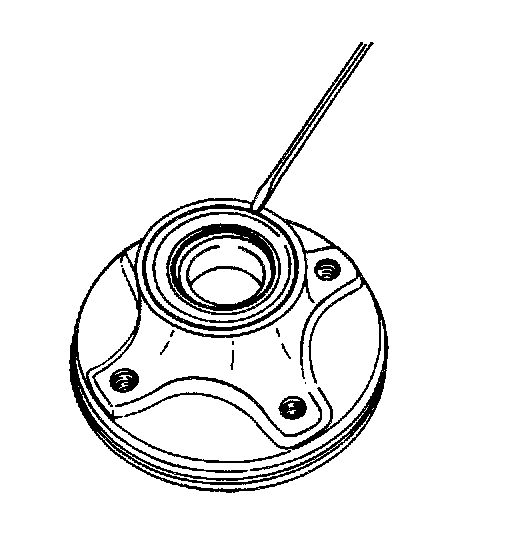

3. Pry off the oil seal from the hub and bearing assembly with a screwdriver.

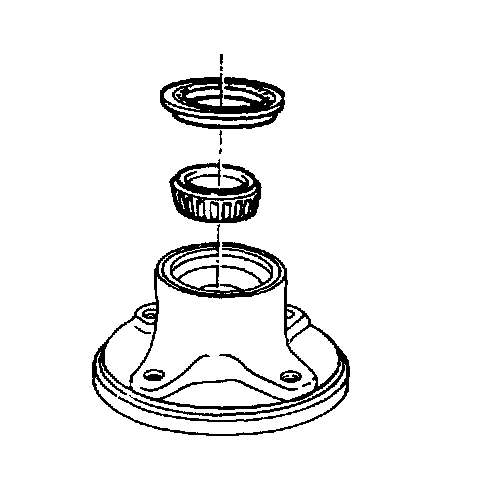

4. Remove the oil seal and the inner tapered roller bearing.

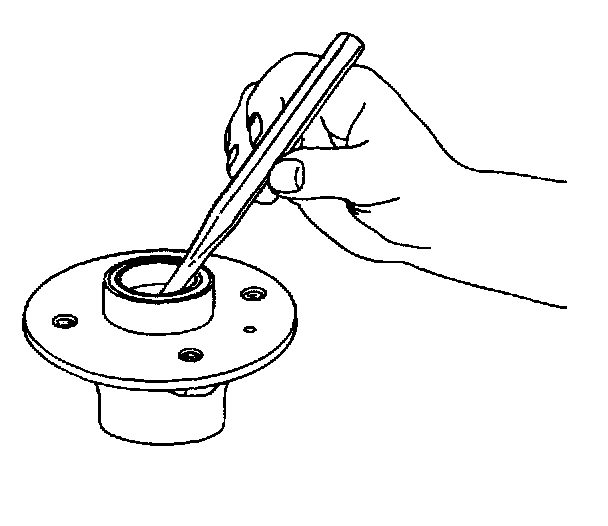

5. Remove the inner race of the outer tapered roller bearing.

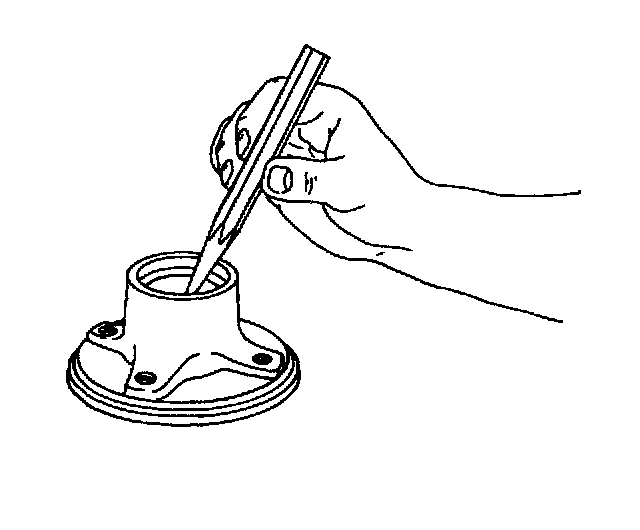

6. Remove the outer race of the inner tapered roller bearing.

Assembly Procedure

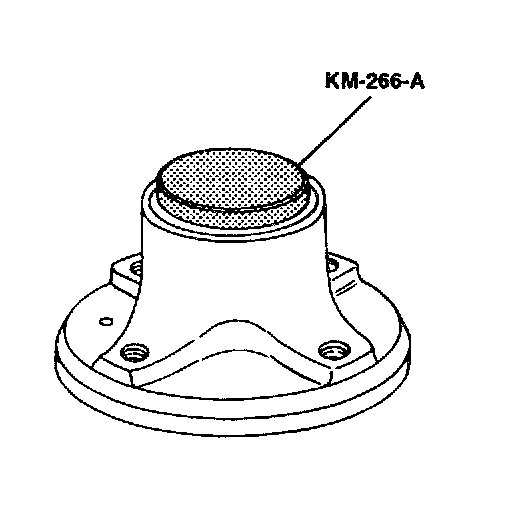

1. Install the outer race of the inner tapered roller bearing with the installer KM-266-A.

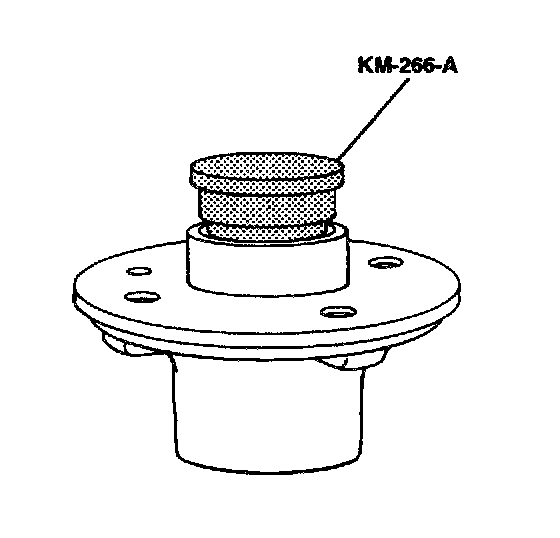

2. Press the inner race of the outer tapered roller bearing with the installer KM-266-A.





3. Install the inner tapered roller bearing and the oil seal.
4. Install the hub and bearing assembly onto the vehicle.
5. Lower the vehicle.
