Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.
2. Disconnect the intake air temperature (IAT) sensor connector.

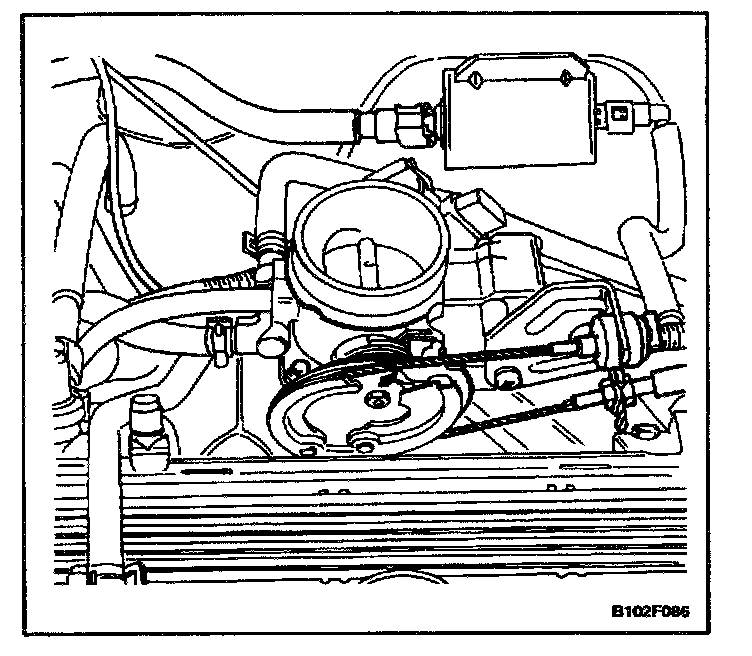

3. Disconnect the breather hose from the valve cover.

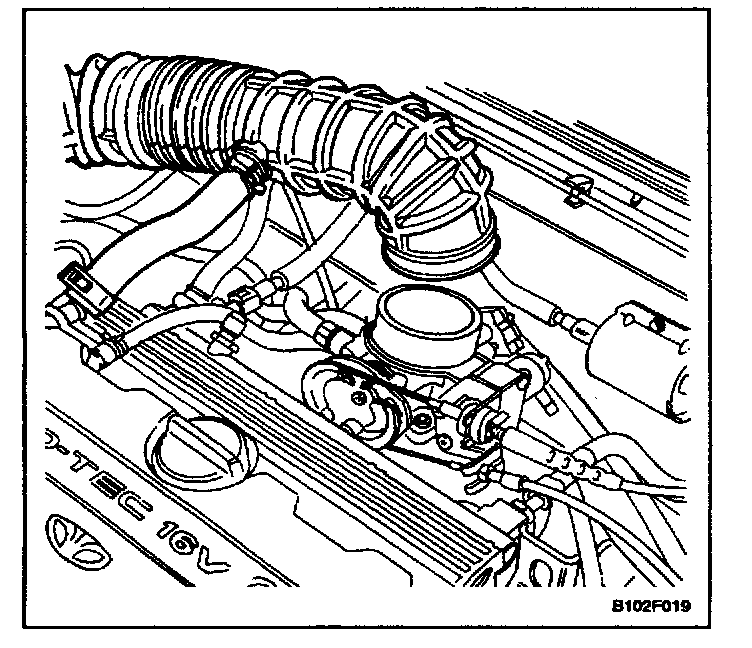

4. Remove the air intake tube.




5. Disconnect the throttle cable from the throttle body and bracket.

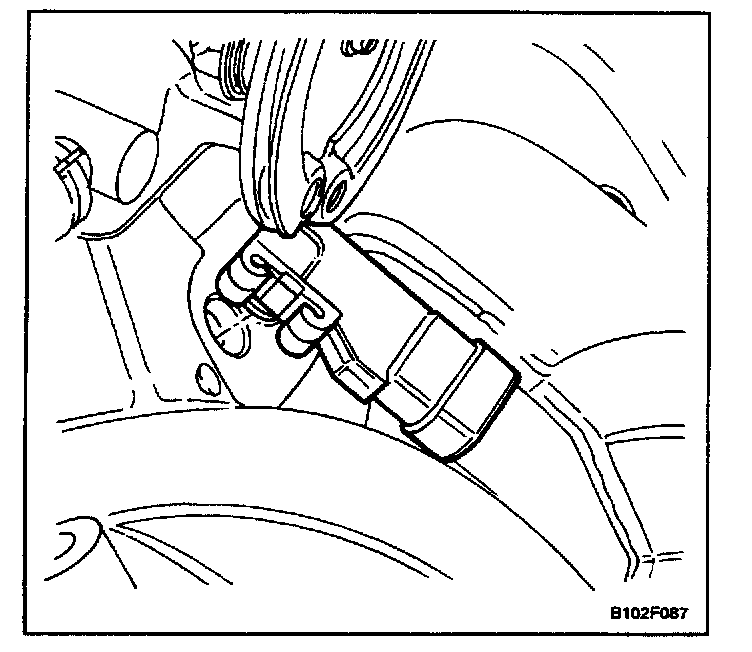

6. Remove the manifold absolute pressure (MAP) sensor from the intake manifold.
7. Disconnect the MAP sensor harness from the MAP sensor.

INSTALLATION PROCEDURE




1. Connect the MAP sensor harness to the MAP sensor.
2. Install the MAP sensor into the intake manifold.

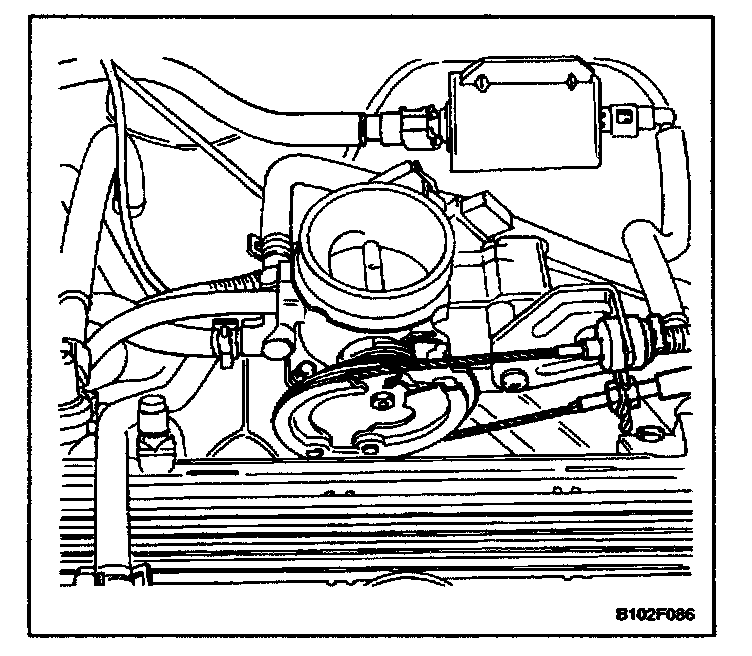

3. Connect the throttle cable to the throttle body and bracket.

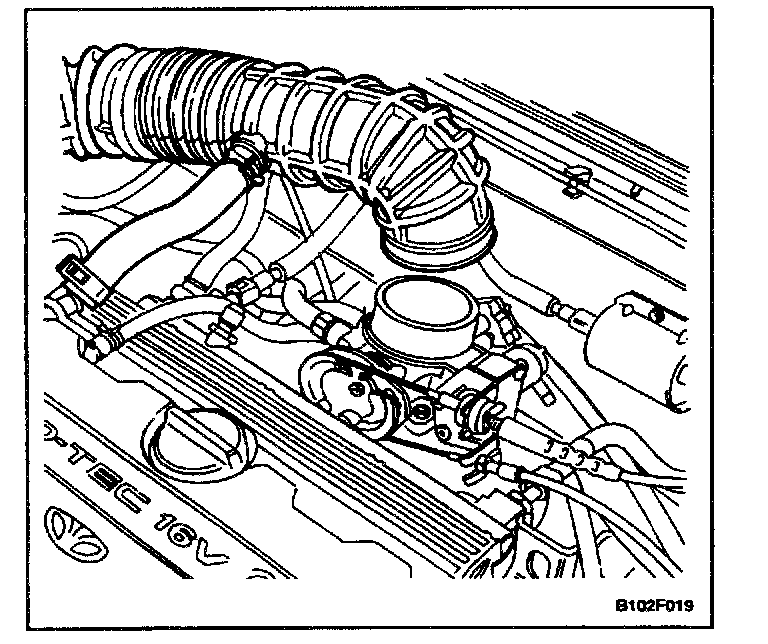

4. Install the air intake tube.
5. Connect the breather hose to the valve cover.
6. Connect the IAT sensor connector.
7. Connect the negative battery cable.
