Rear

Removal Procedure
1. Raise and suitably support the vehicle.

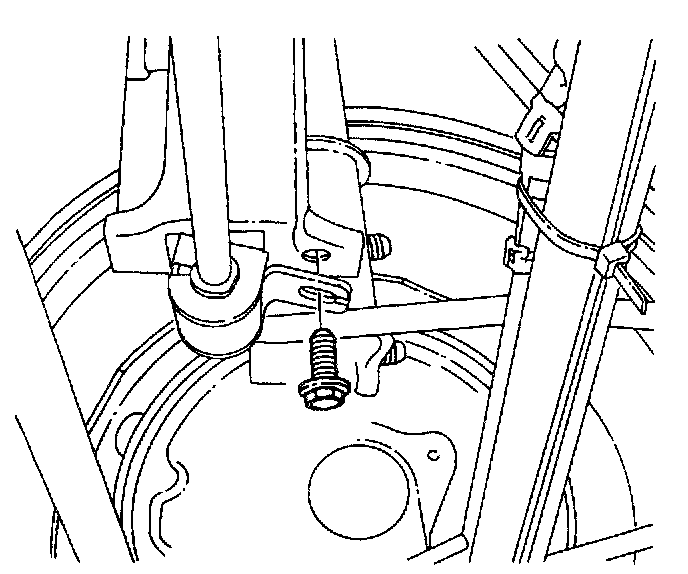

2. Remove the stabilizer shaft clamp bolts.

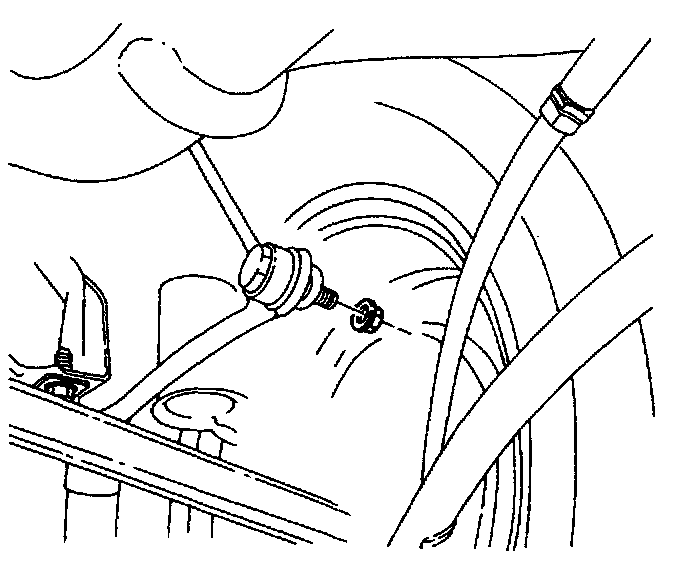

3. Remove the stabilizer shaft-to-stabilizer link nuts.
4. Remove the stabilizer shaft clamps, the insulators, and the stabilizer shaft from the vehicle.

Installation Procedure
1. Install the stabilizer shaft, the insulators, and the stabilizer shaft clamps.





2. Install the stabilizer shaft-to-stabilizer link nuts.
Tighten
Tighten the stabilizer shaft-to-stabilizer link nuts to 44 Nm (32 ft. lbs.).

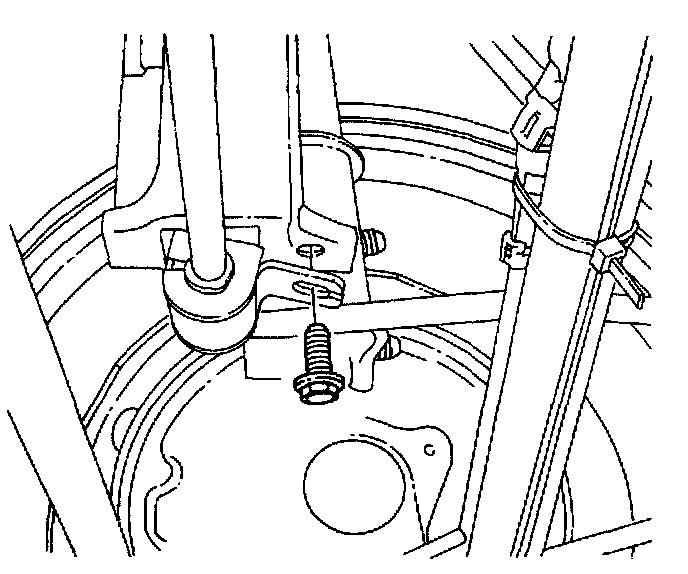

3. Install the stabilizer shaft clamp bolts.
Tighten
Tighten the stabilizer shaft clamp bolts to 20 Nm (15 ft. lbs.).
4. Lower the vehicle.
