Final Drive Pinion End Play Check

FINAL DRIVE PINION END PLAY CHECK

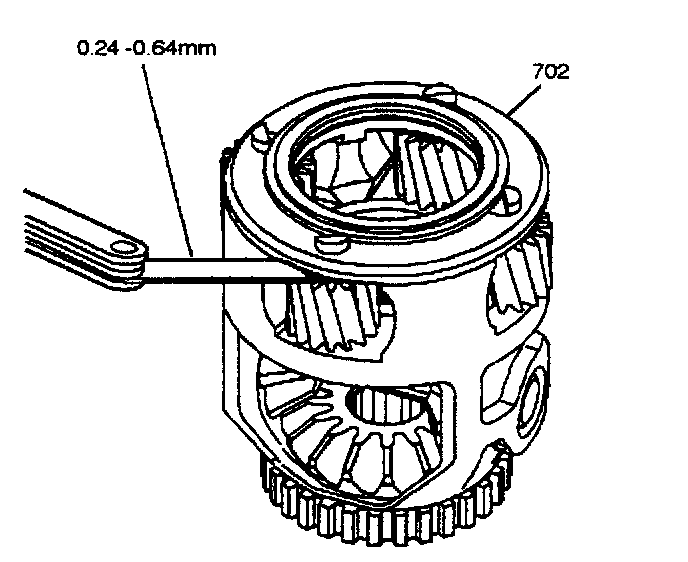

1. Inspect the end play with a feeler gauge for proper clearance. Proper clearance is 24 - 62 mm (0.009 - 0.024 inch).
2. If the clearance is out of specification on the low side, repair the differential assembly as necessary.
3. If the clearance is out of specification on the high side, replace the differential assembly.
