Wiring Harness Removal

WIRING HARNESS REMOVAL

Tools Required
J 41101 Pass-Through Connector Remover

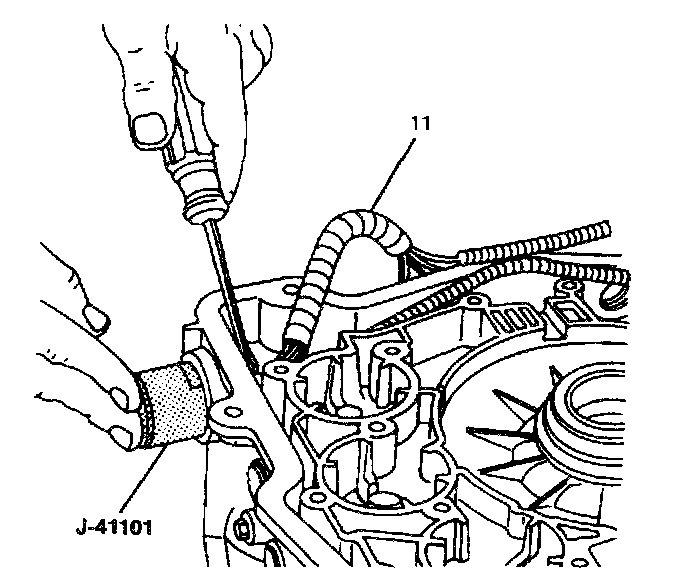

1. Push the J 41101 onto the pass-through connector from the outside of the transmission case in order to compress the pass-through connector's retaining tabs.
2. With the retaining tabs compressed, use a screwdriver in order to remove the pass-through connector through the inside of the transmission case.
3. Remove the wiring harness (11).
