Windshield Washer Reservoir

(Typical)

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the front left wheel.

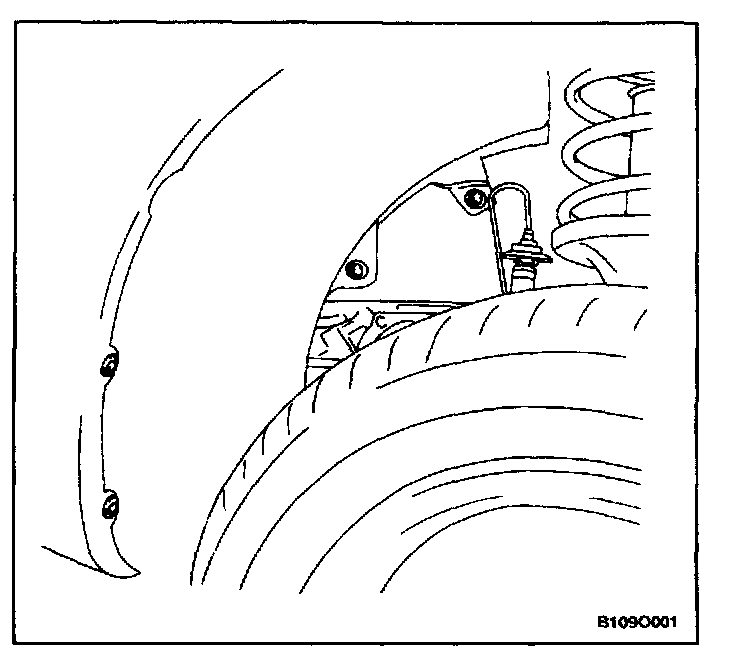

3. Remove the bolts and the screws and the front wheel well splash shield.

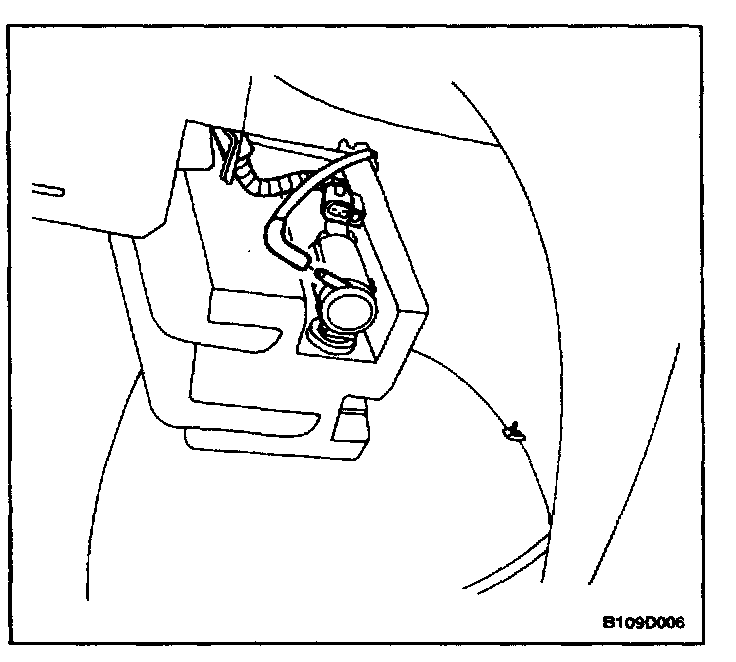

4. Disconnect the washer hose from the washer pump.
5. Disconnect the reservoir pump electrical connector.

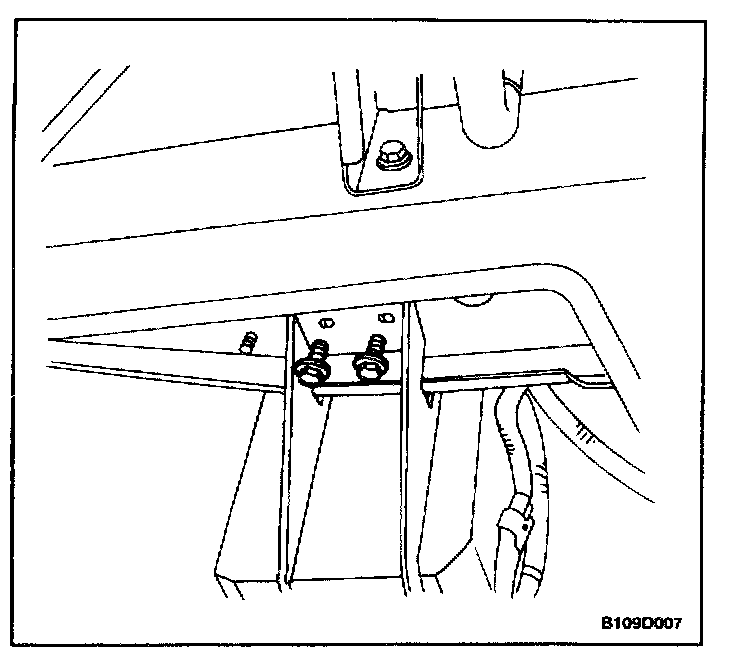

6. Remove the bolts and the reservoir.

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the reservoir with the bolts.

Tighten
Tighten the washer fluid reservoir bolts to 15 Nm (11 lb.ft).

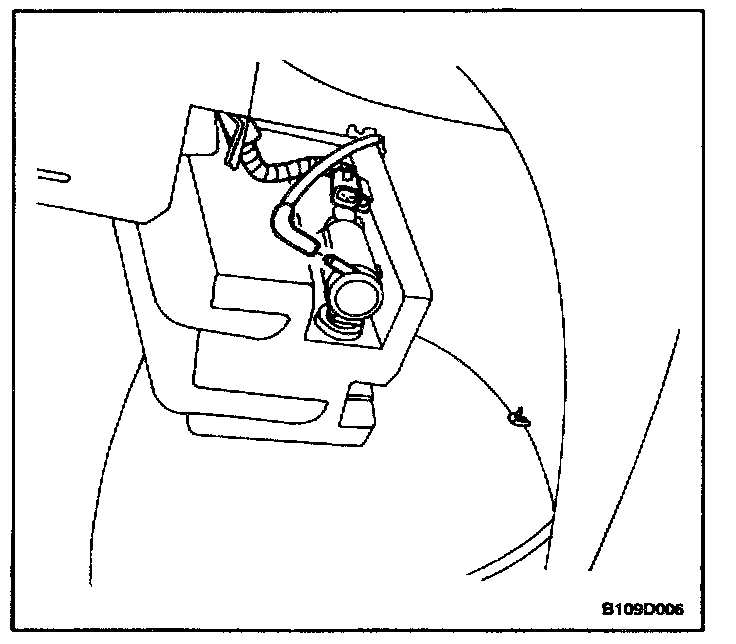

2. Connect the reservoir pump electrical connector.
3. Connect the washer hose to the washer pump.




4. Install the front wheel well splash shield with the bolts and the screws.

Tighten
Tighten the front wheel well splash shield bolts to 1.5 Nm (13 lb.in).

5. Install the front left wheel.
6. Connect the negative battery cable.
