Home >> Daewoo >> 2000 >> Lanos S Hatchback L4-1.6L DOHC D-TEC MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications >> Torque

Torque

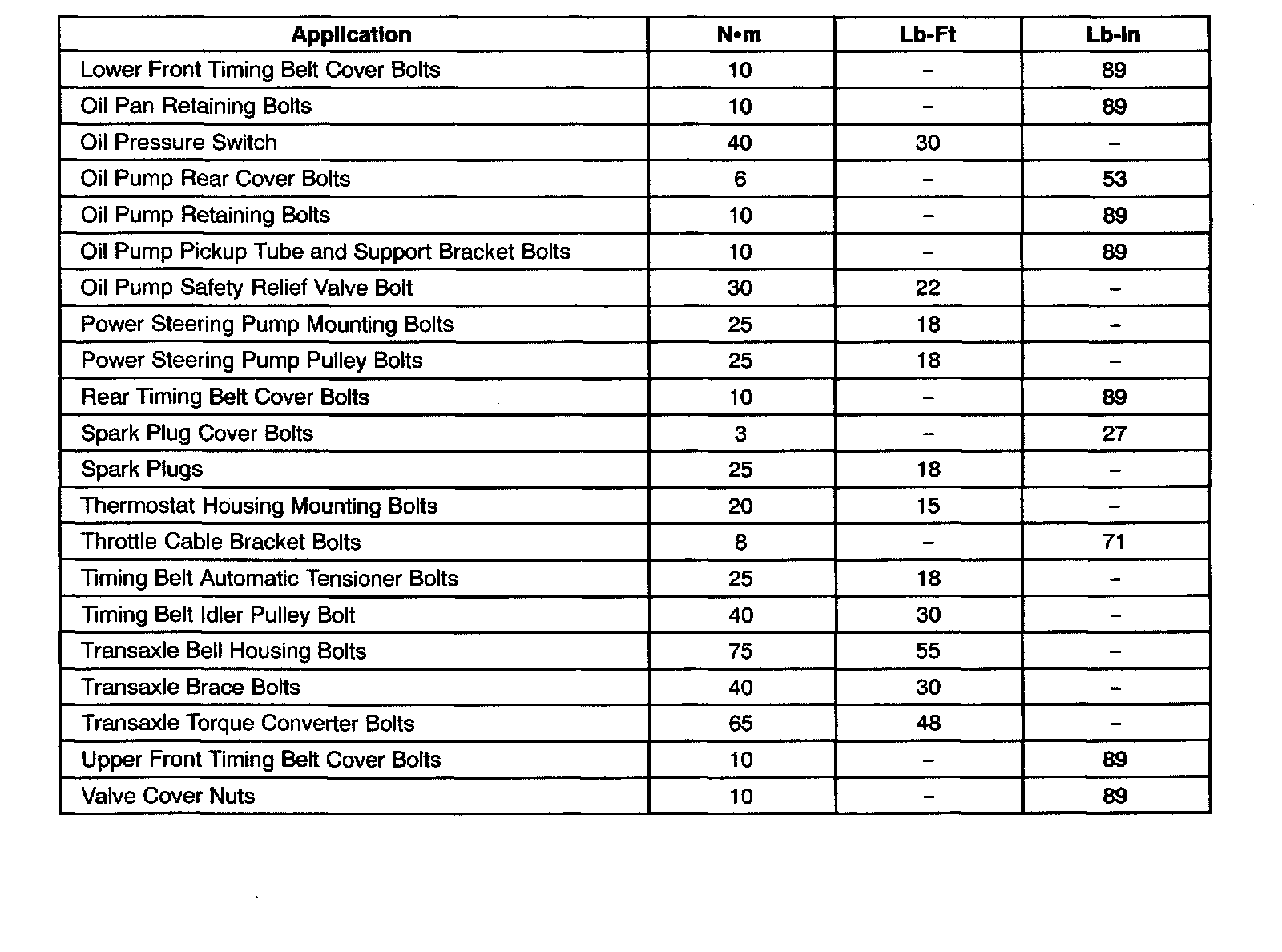

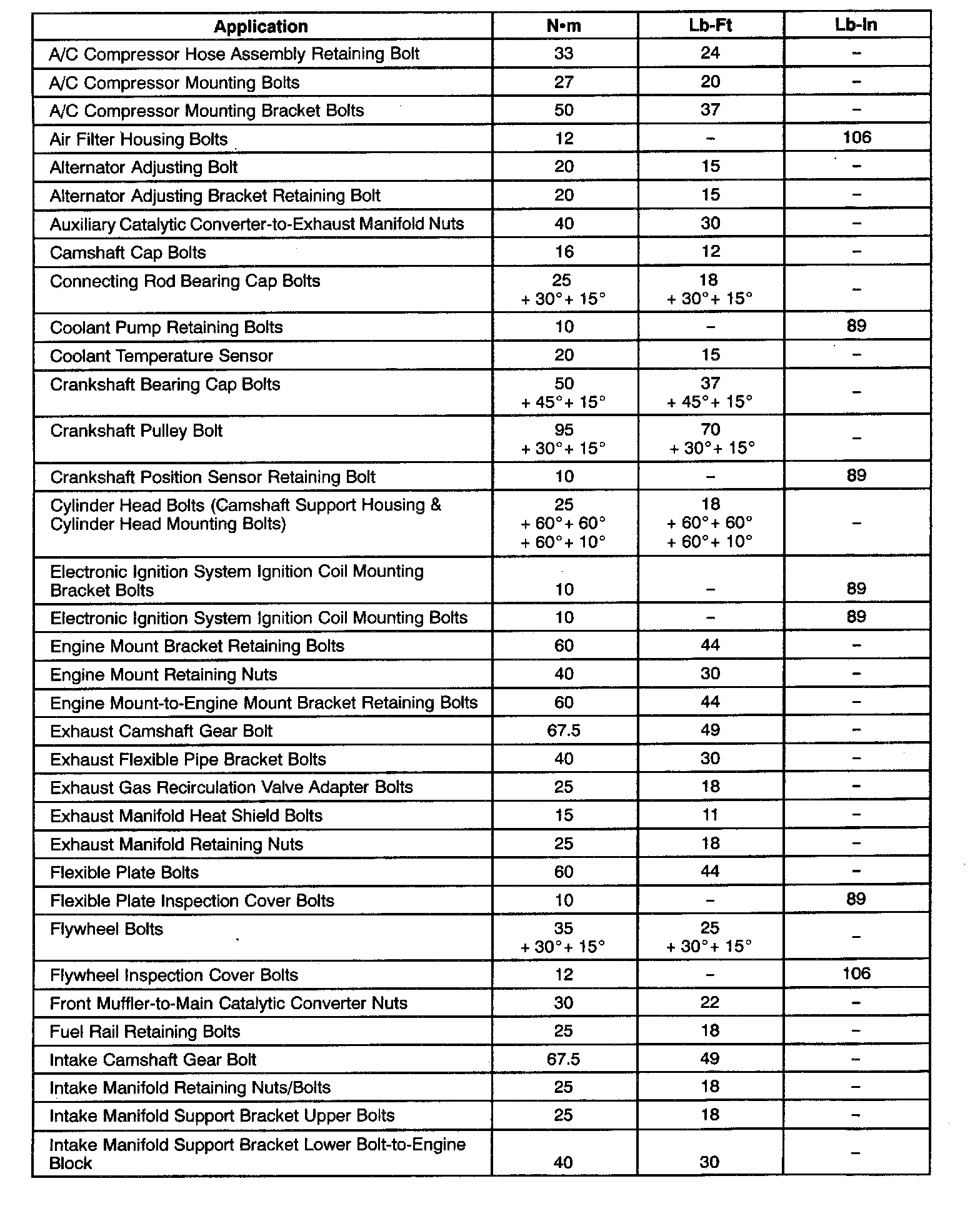

Fastener Tightening Specifications

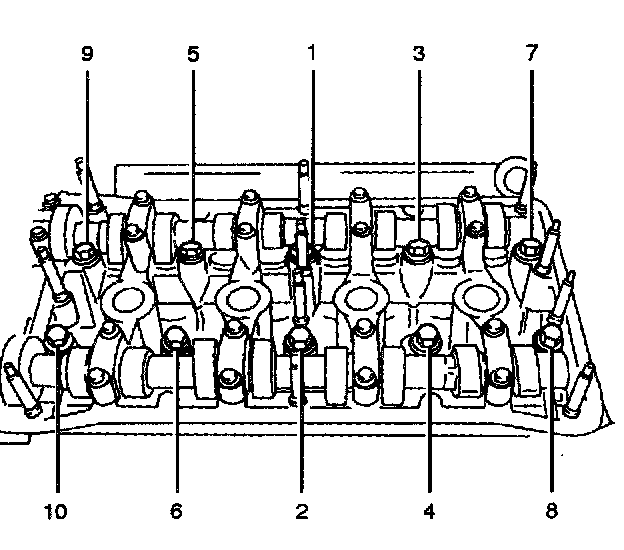

Cylinder Head Tightening Sequence

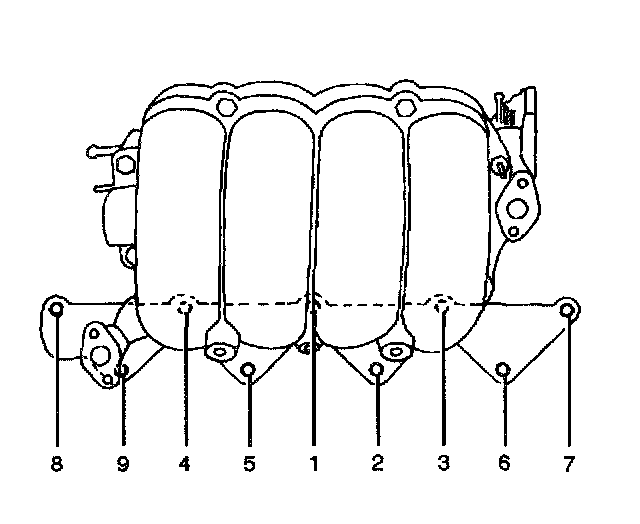

Intake Manifold Tightening Sequence

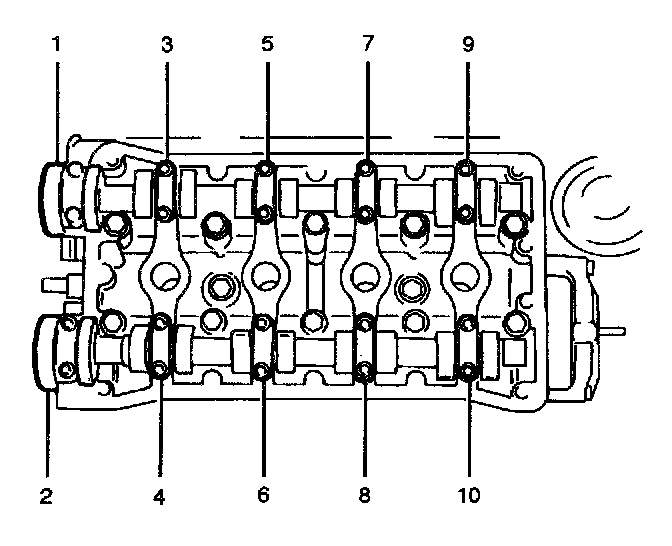

Camshaft Tightening Sequence

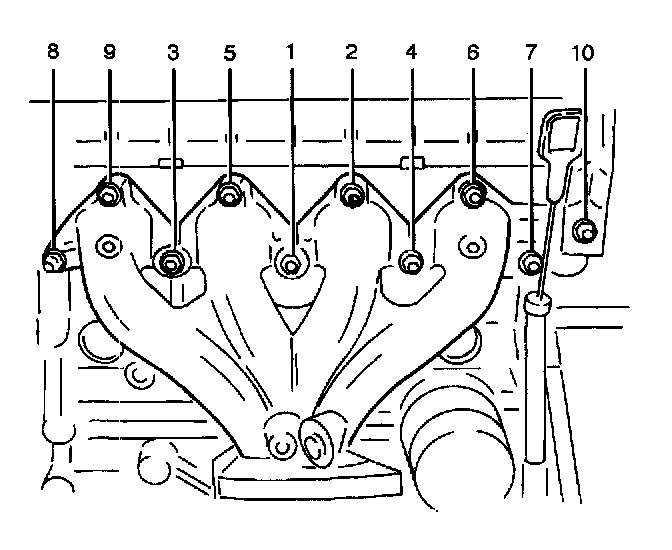

Exhaust Manifold Tightening Sequence
