Front Door Lock

Removal Procedure




1. Disconnect the negative battery cable.

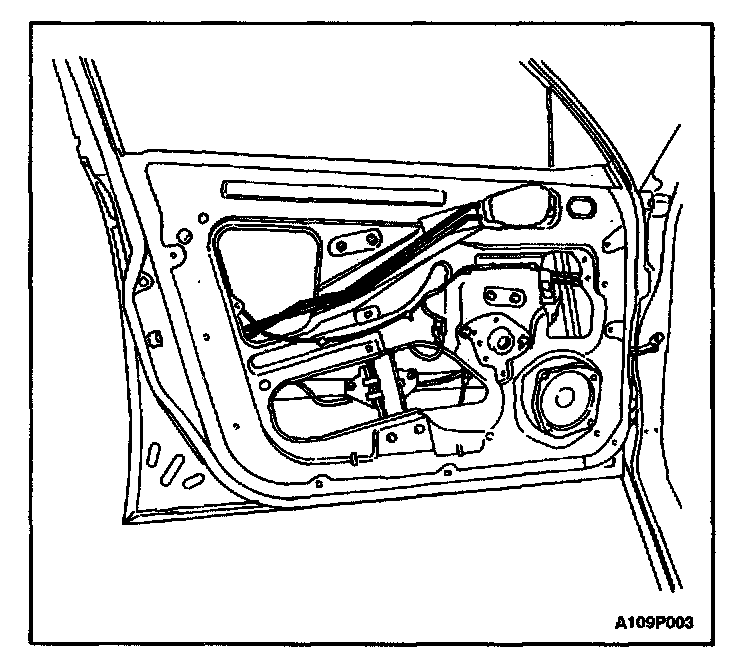

2. Remove the seal trim.

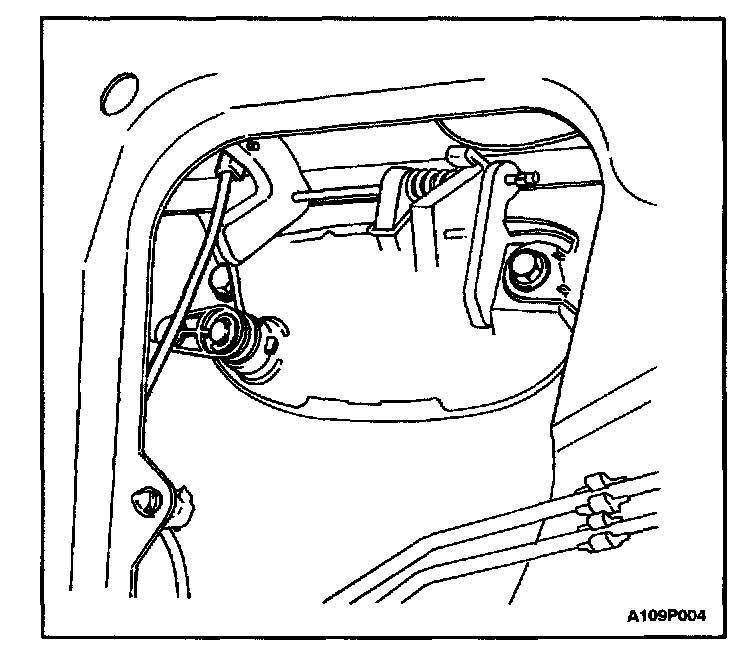

3. Disconnect the inside door handle and the lock rods.




4. Disconnect the outside door handle and the lock rods.




5. Remove the bolts and the guide rail.

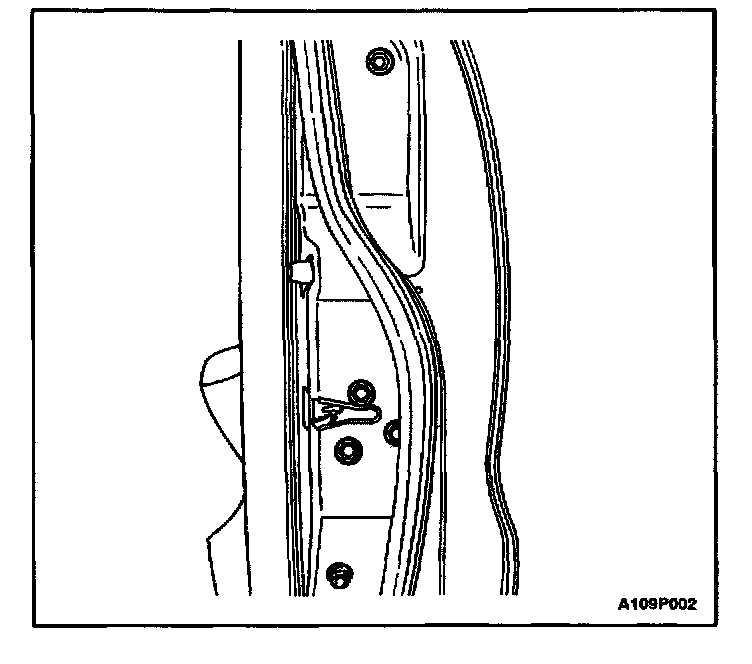

6. Remove the screws and the front door lock.
7. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.
2. Connect the inside door handle and the lock rods.
3. Connect the outside door handle and the lock rods.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

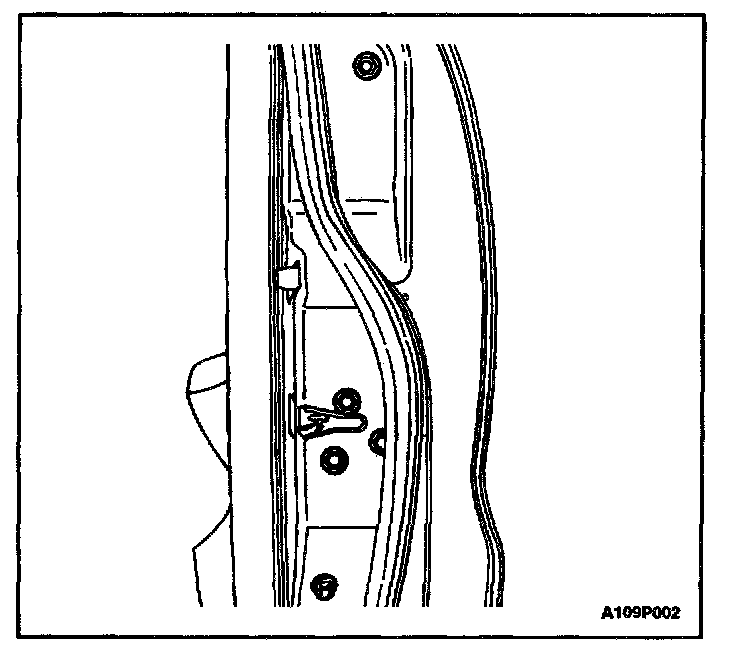

4. Install the front door lock with the screws.
Tighten
Tighten the front door lock screws to 8 N.m (71 lb.in).

5. Install the guide rail with the bolts.
Tighten
Tighten the guide rail bolts to 7 N.m (62 lb.in).

6. Install the seal trim.
7. Connect the negative battery cable.
