Panel Illumination Control Module: Locations

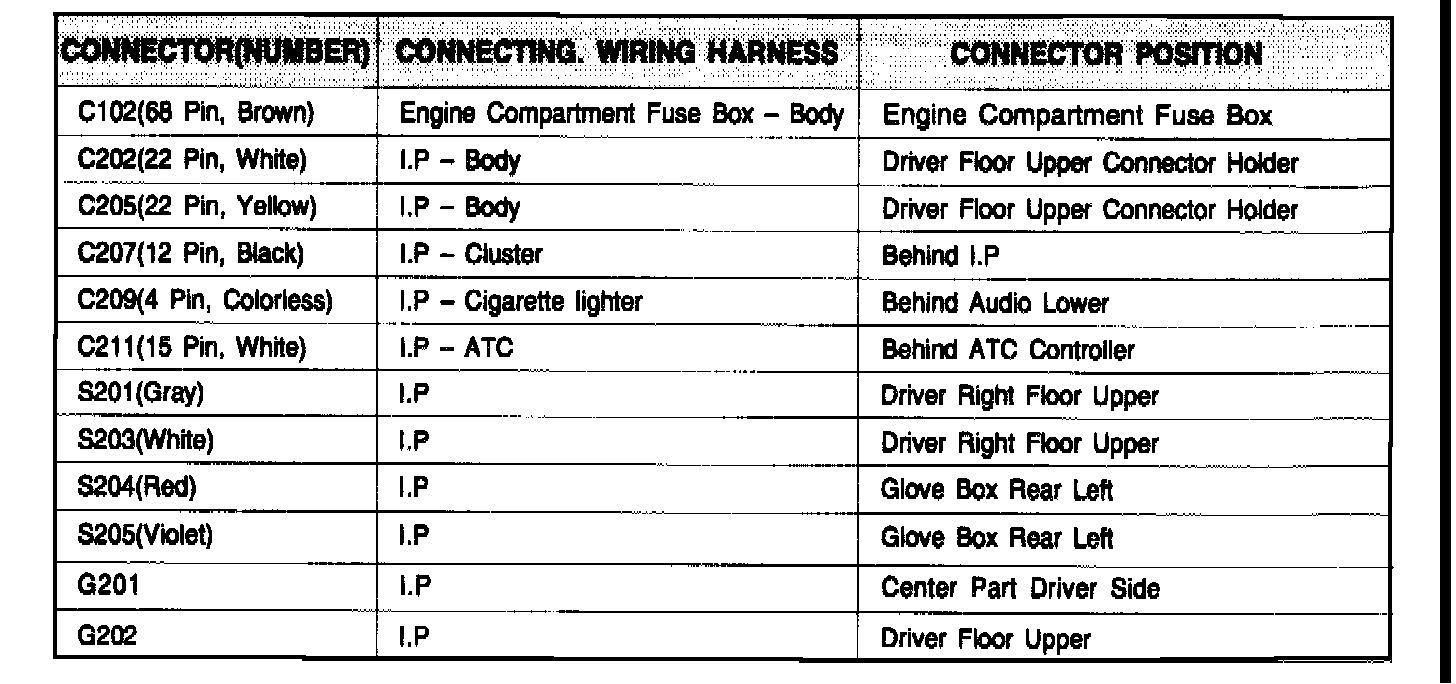

Connector Information:

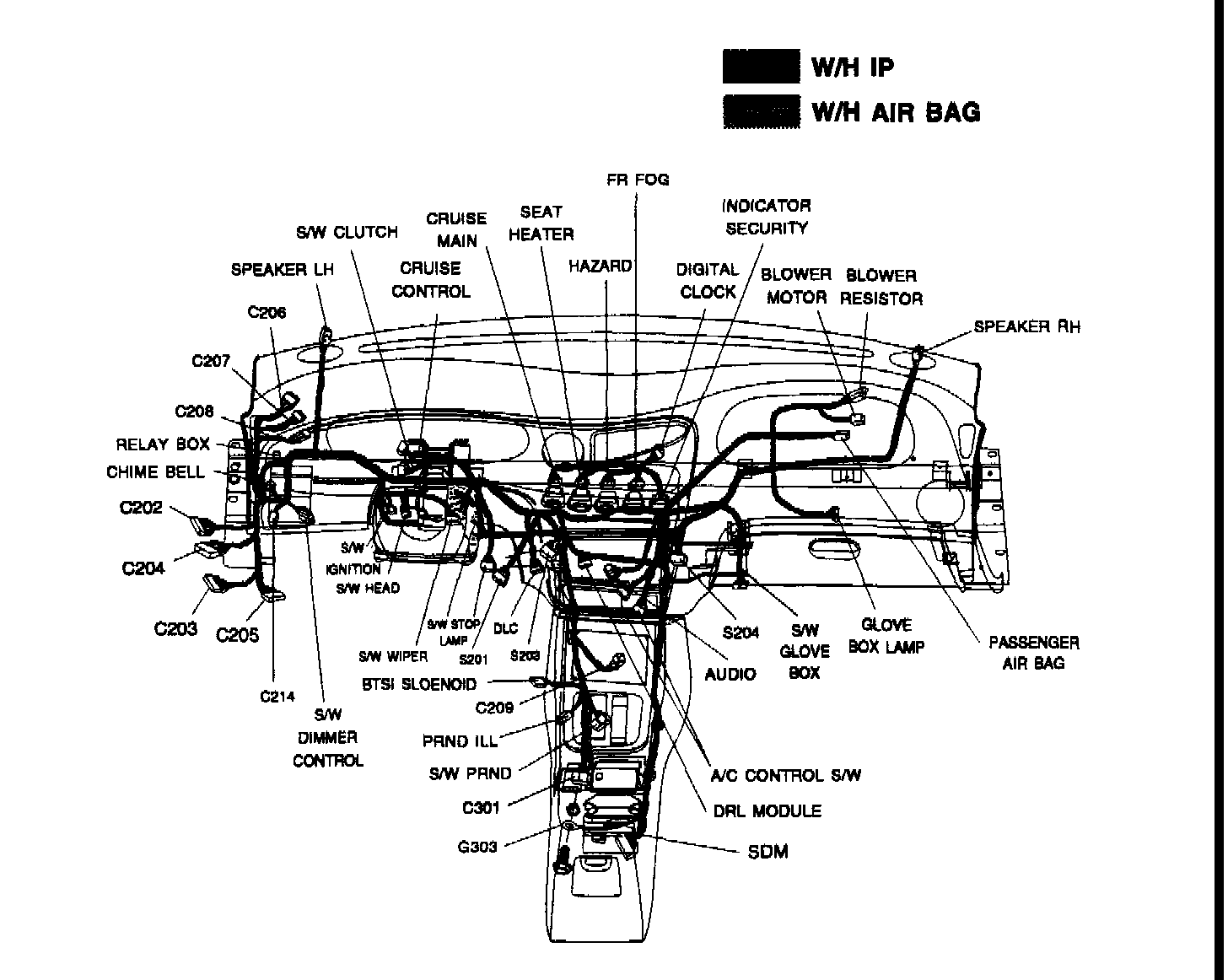

Position Of Connectors And Grounds (W/H Instrument Panel):
