Panel Illumination Control Module: Service and Repair

Removal Procedure

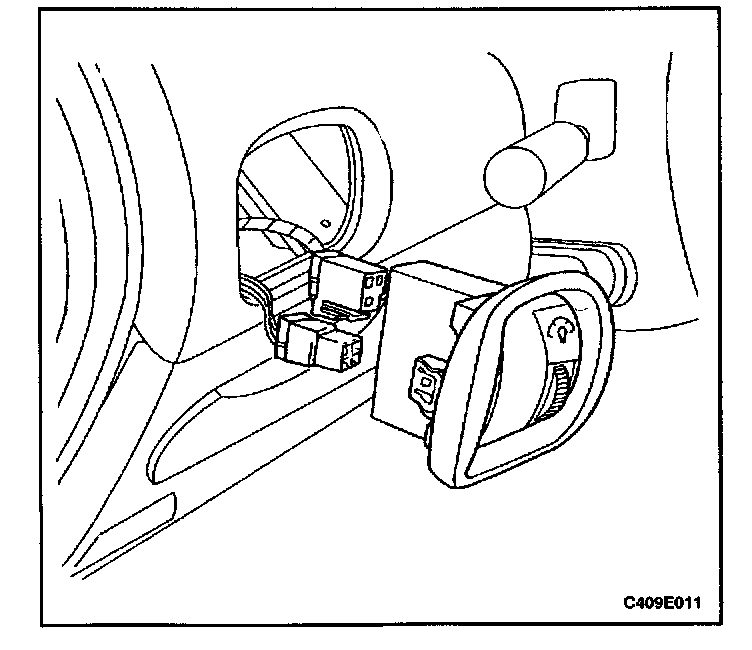

1. Remove the instrument cluster dimmer switch assembly.
2. Disconnect the electrical connectors.

Installation Procedure




1. Replace the appropriate switch.
2. Connect the electrical connectors.
3. Install the instrument cluster dimmer switch assembly.
