Rear Combination Lamp Removal and Installation

Removal Procedure

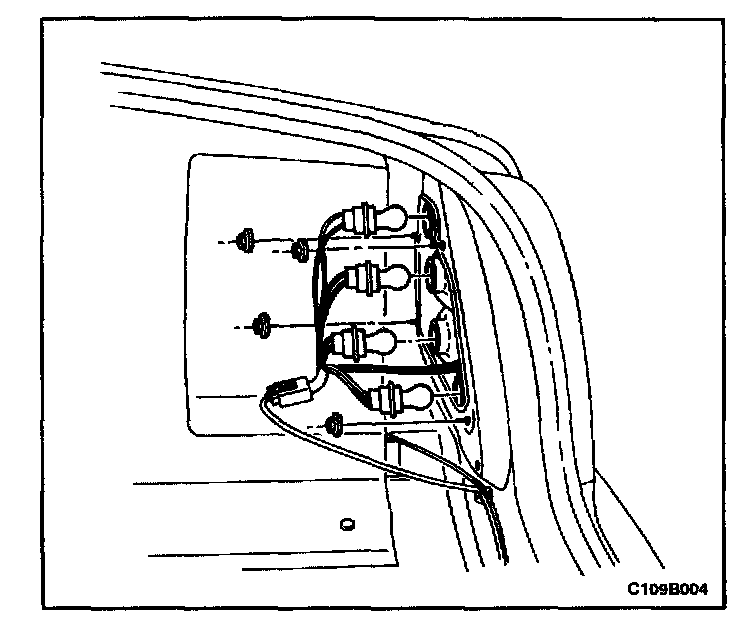

1. Disconnect the negative battery cable.
2. Remove the rear luggage compartment trim panel.
3. Disconnect the electrical connectors.
4. Remove the nuts and the lamp assembly.
5. Remove any inoperative bulb.

Installation Procedure

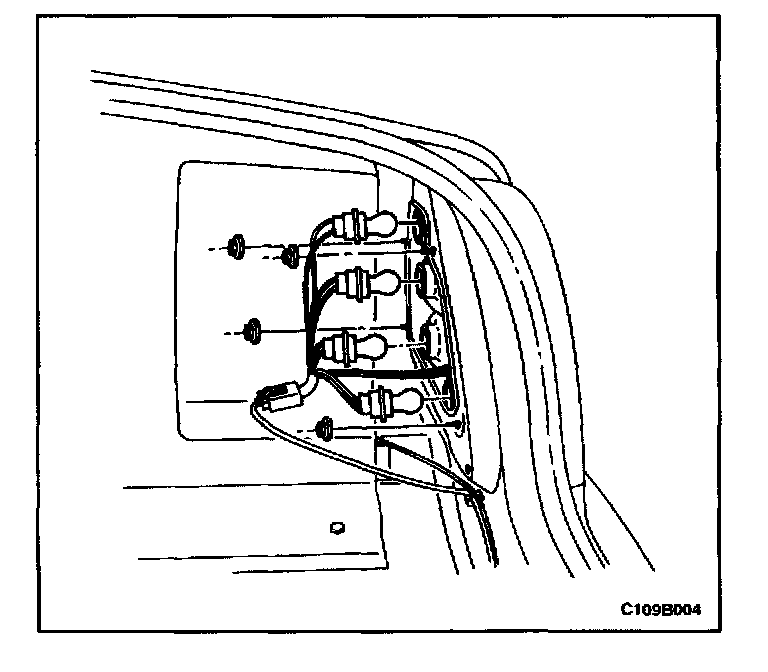

1. Install the replacement bulbs.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

2. Install the lamp assembly with the nuts.

Tighten
Tighten the rear combination lamp assembly nuts to 2 N.m (18 lb.in).

3. Connect the electrical connectors.
4. Install the rear luggage compartment trim panel.
5. Connect the negative battery cable.
