Engine Control Module: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the right side kick panel. Refer to Interior Trim.

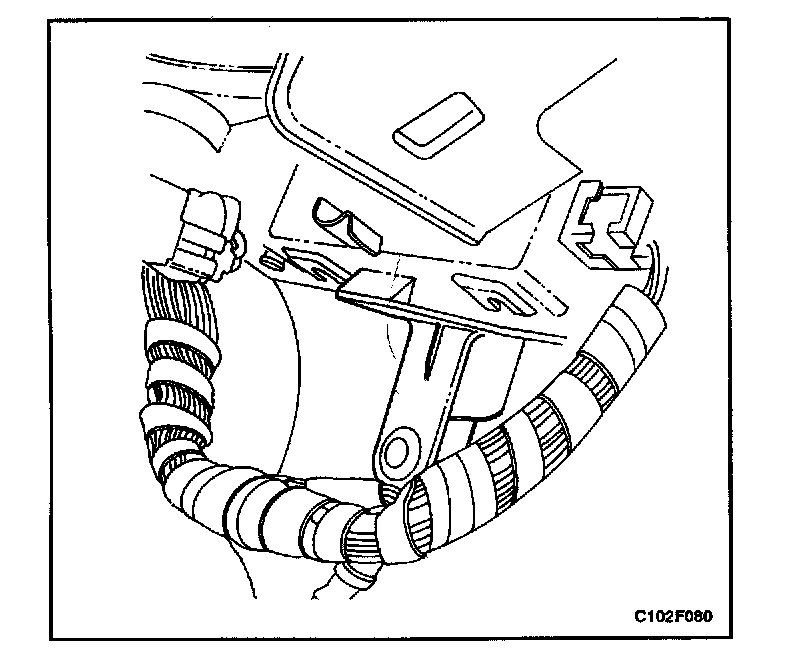

3. Remove the engine control module (ECM) bracket trim locks.
4. Pull the ECM down from the ECM mounting base.

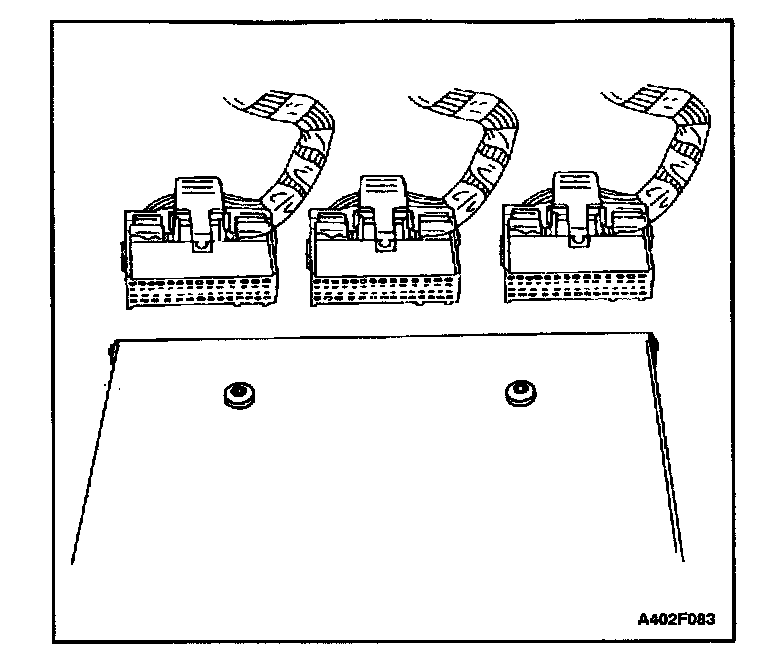

5. Disconnect the ECM connectors from the ECM.




Installation Procedure
1. Connect the ECM connectors to the ECM.

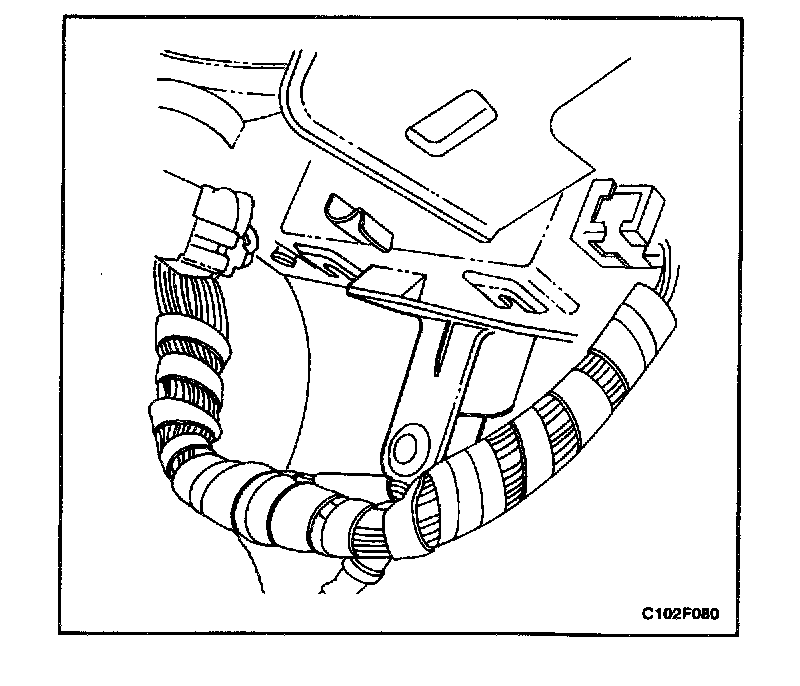

2. Align the ECM into the mounting base.
3. Snap the ECM into its mounting base.
4. Install the ECM trim locks.
5. Install the passenger side kick panel. Refer to Interior Trim.
6. Connect the negative battery cable.
7. Perform a crankshaft position system variation learning procedure. Refer to "DTC P1336".
