Disassembly and Reassembly

HUB AND BEARING

IMPORTANT: The rear bearings are not serviceable. If the bearings must be replaced, the hub and bearing assembly must be replaced as a unit.

Disassembly Procedure
1. Raise and suitably support the vehicle.
2. Remove the hub and bearing assembly from the vehicle.

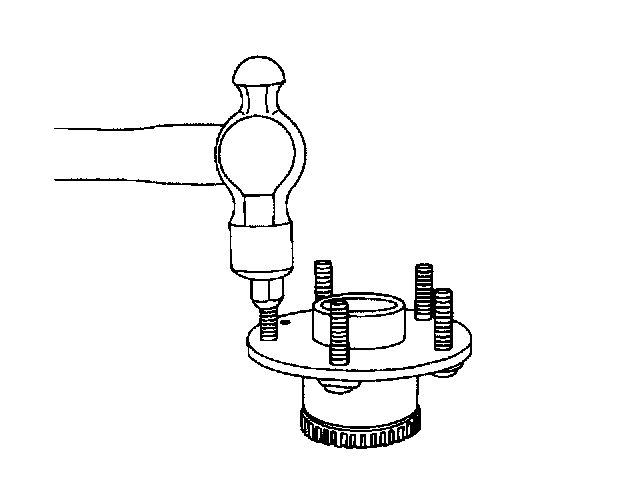

3. Use a hammer to drive out any damaged hub studs.

Assembly Procedure

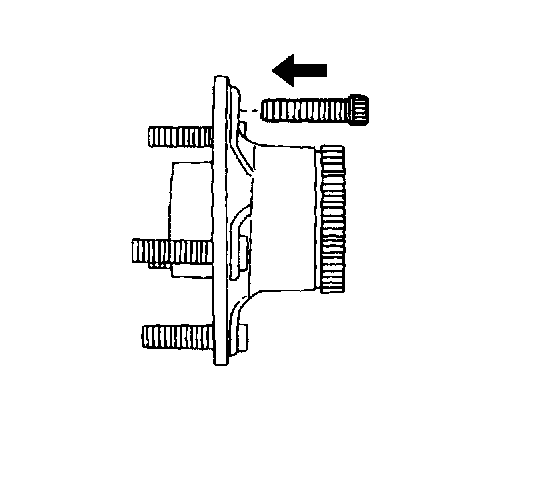

1. Replace any damaged hub studs with a new hub stud.
