Removal and Installation

Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the wheel.
3. Remove the rear brake caliper and the rear brake rotor.

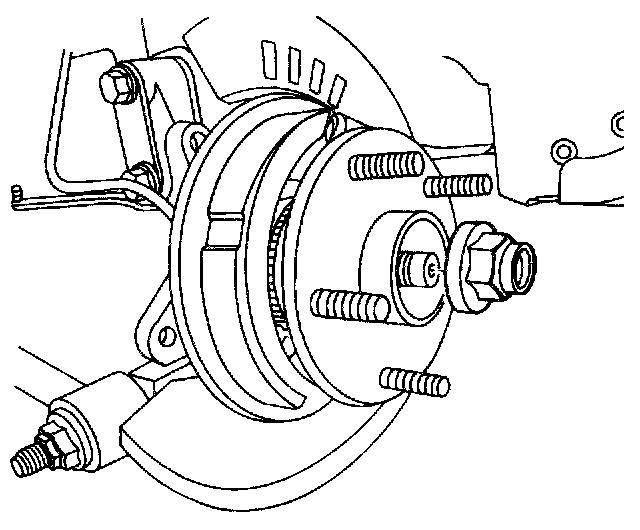

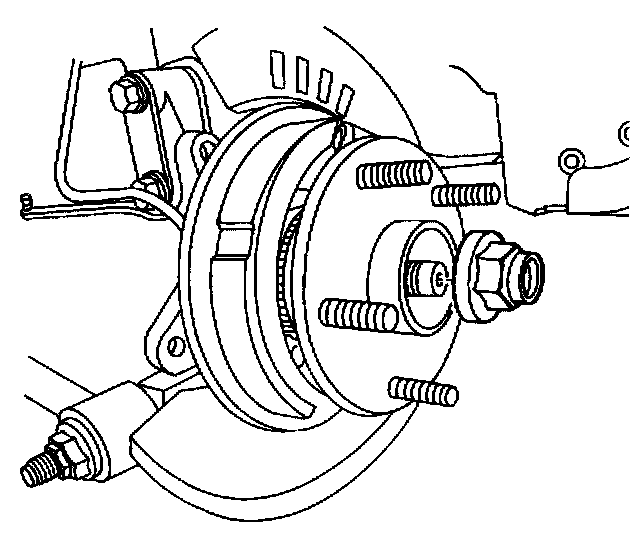

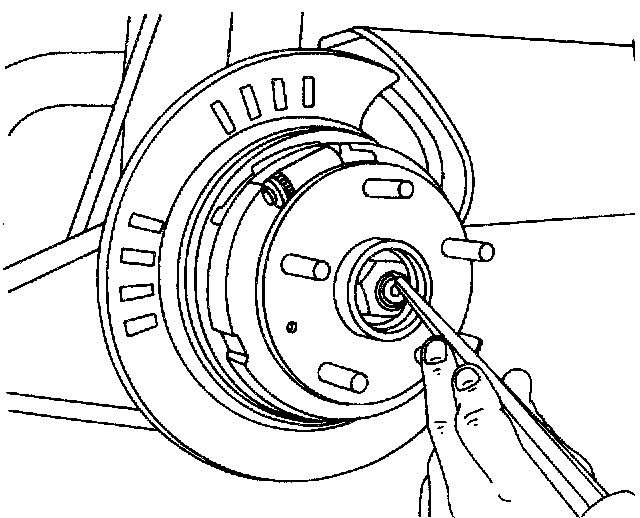

4. Remove the dust cap and straighten the indent in the caulking nut with a drift and a hammer.





5. Remove the caulking nut.

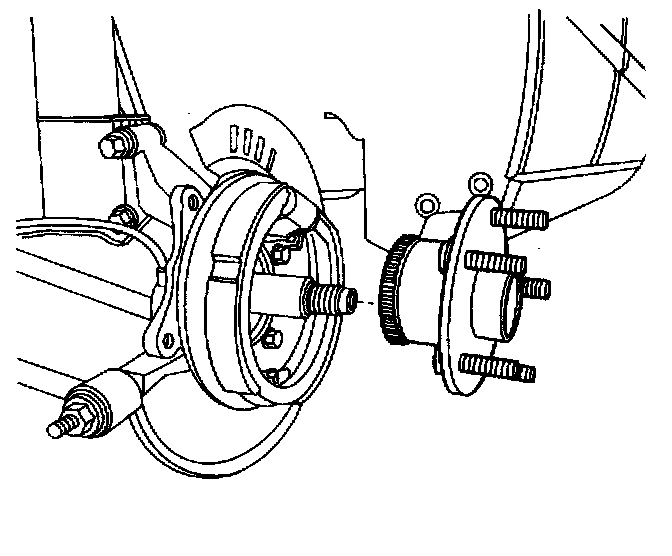

6. Remove the hub and bearing assembly.

Installation Procedure

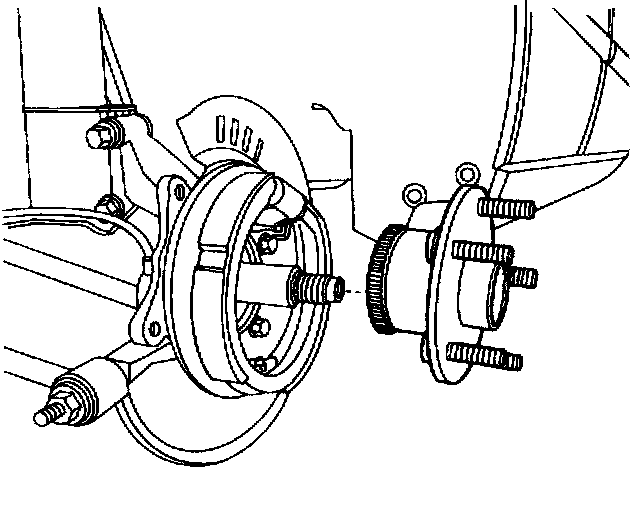

1. Install the hub and bearing assembly.





2. Install a new caulking nut.
Tighten
Tighten the caulking nut to 285 Nm (210 ft. lbs.).

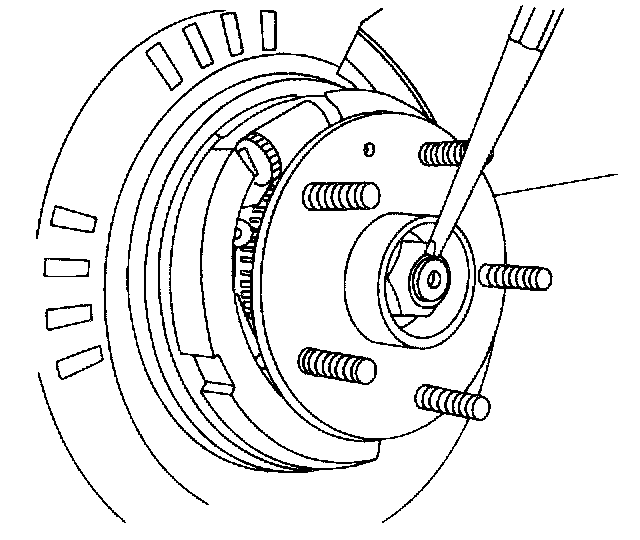

3. Indent the caulking nut onto the spindle.
4. Install the rear brake rotor and the rear brake caliper.
5. Install the wheel.
6. Lower the vehicle.
