Siren

SIREN

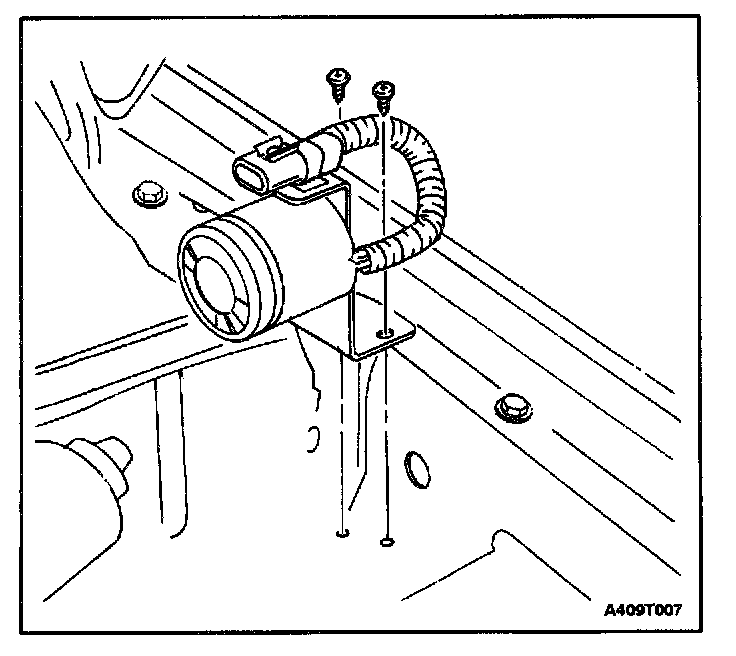

REMOVAL PROCEDURE




1. Remove the siren electrical connector.

2. Remove the siren bracket mounting screws and siren.

INSTALLATION PROCEDURE




1. Install the siren with the mounting screws.

Tighten
Tighten the siren mounting screws to 4 N.m (35 lb-in).

2. Connect the siren electrical connector.
