Rear Door Latch Lockout: Service and Repair

CHILDPROOF REAR DOOR LOCK

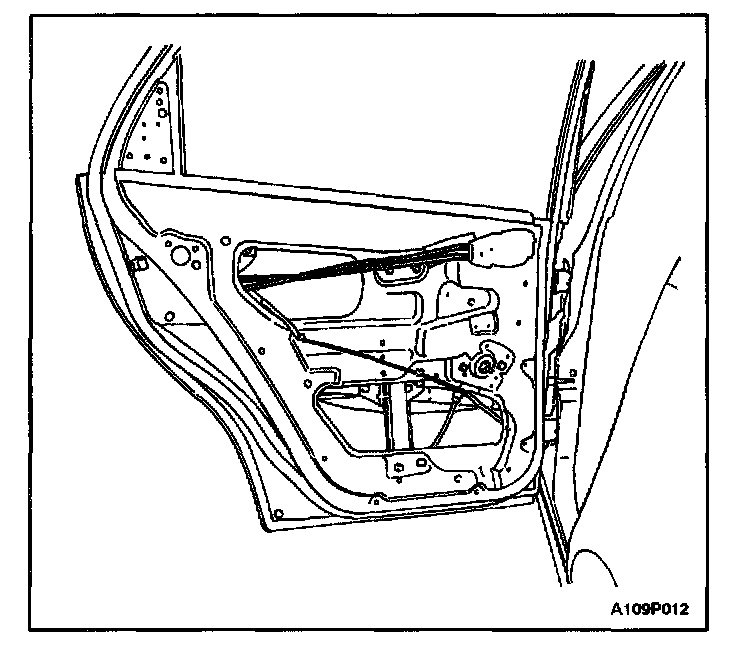

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

2. Remove the door seal trim. Refer to "Door Seal Trim".

3. Disconnect the inside door handle and the lock rods.




4. Disconnect the outside door handle and the lock rods.




5. Remove the bolts and the guide rail.




6. Remove the screws and the lock.

7. Disconnect the electrical connector.

8. Disconnect the lock rods at the lock.

INSTALLATION PROCEDURE

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the rear door lock with the screws.

Tighten
Tighten the rear door lock screws to 8 N.m (71 lb-in).




2. Connect the electrical connector.

3. Install the guide rail with the bolts.

Tighten
Tighten the guide rail bolts to 7 N.m (62 lb-in).




4. Connect the outside door handle and the lock rods.




5. Connect the inside door handle and the lock rods.

6. Install the door seal trim. Refer to "Door Seal Trim".

7. Connect the negative battery cable.
