Lanos S Sedan L4-1.6L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Indicator Lamp & Cluster Illumination Lamp Circuit
Indicator Lamp & Cluster Illumination Lamp Circuit
Connector Identification Symbol & Pin Number Position:

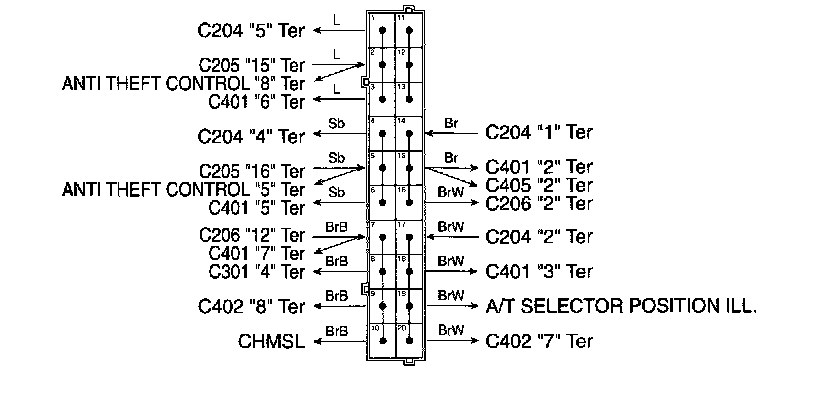

Splice Pack - S202 (Orange):
Splice Pack - S203 (Red):
Splice Pack - S204 (Red):
Splice Pack - S301 (Orange) - Notch Back:
