Sensor (Engine RPM, ISS, VSS) Circuit
Sensor (Engine RPM, ISS, VSS) Circuit

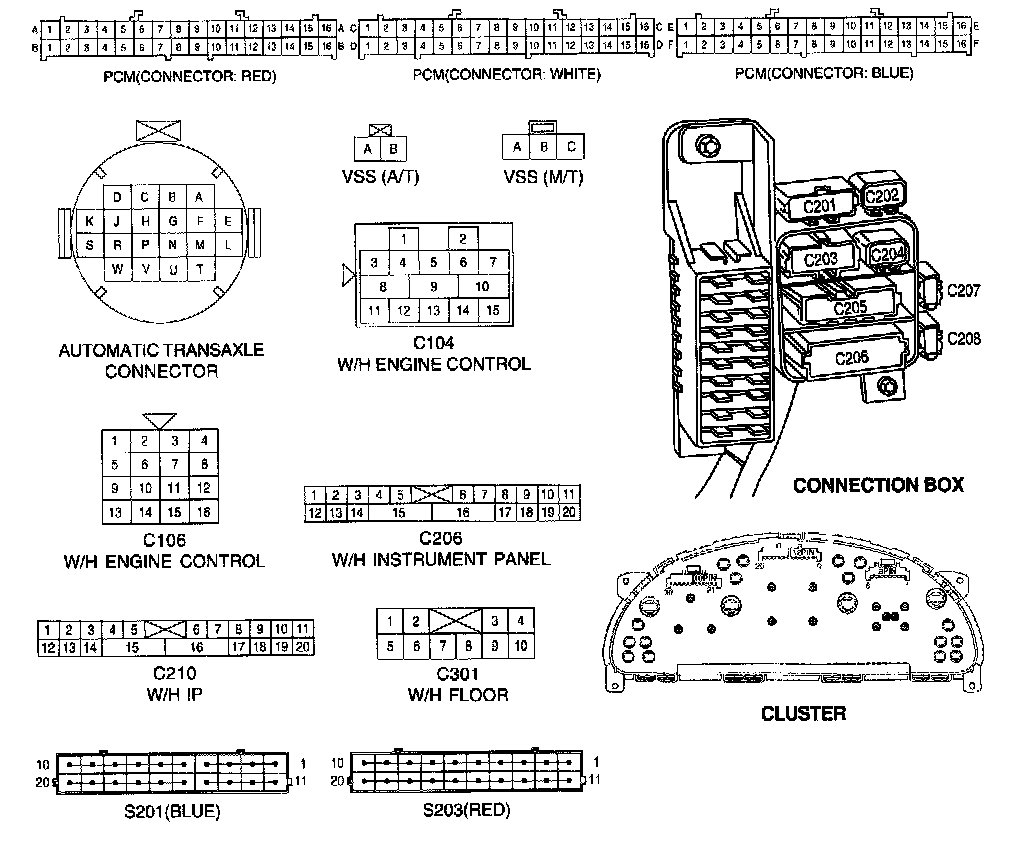

Connector Identification Symbol & Pin Number Position:

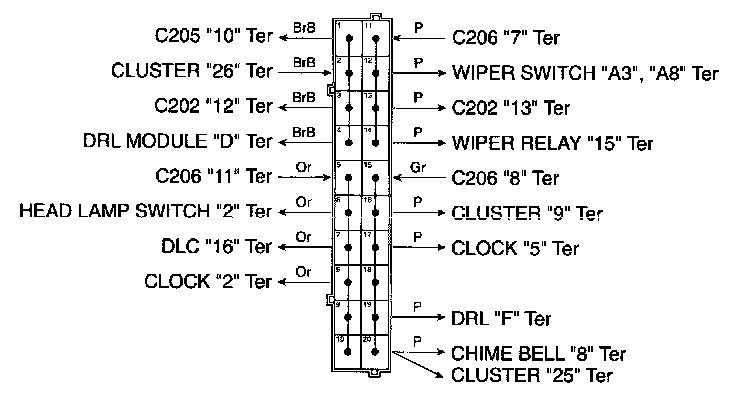

Splice Pack - S201 (Blue):
Splice Pack - S203 (Red):
