Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

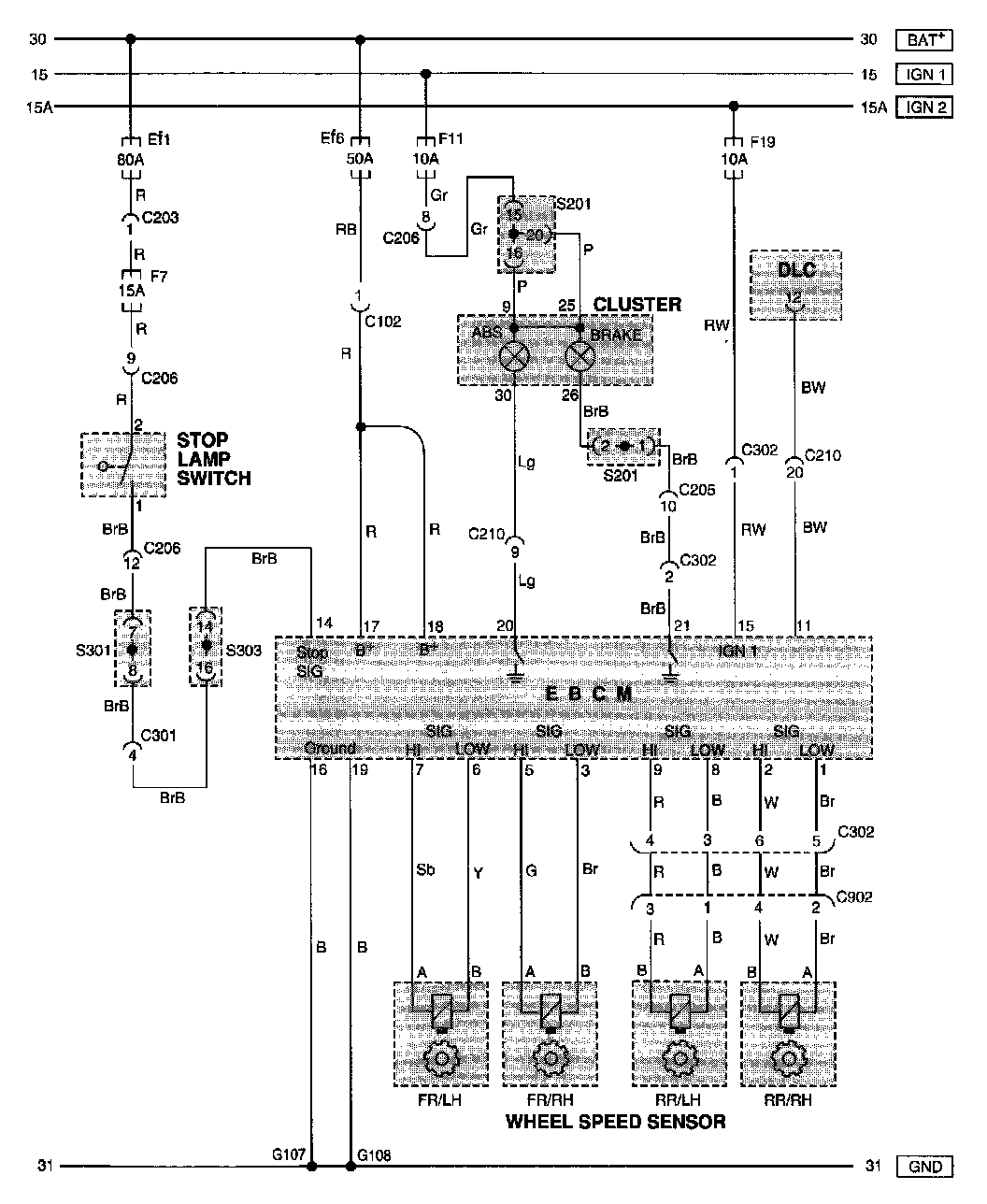

Electrical Wiring Diagram:
