Transaxle Brace

TRANSAXLE BRACE
- Tools Required

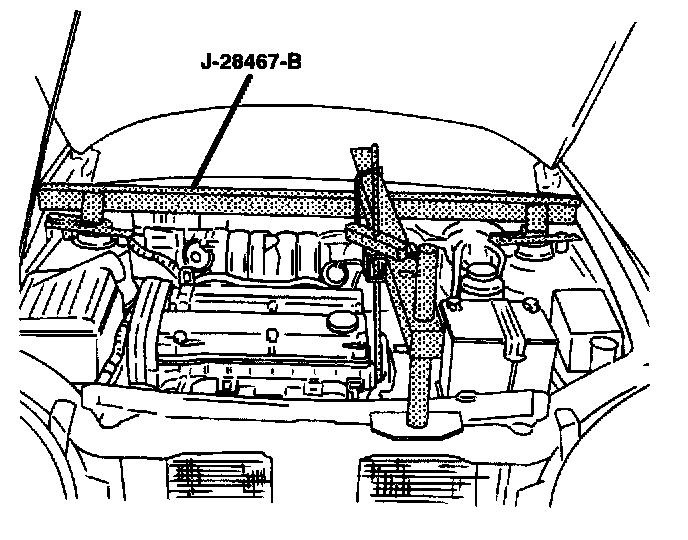

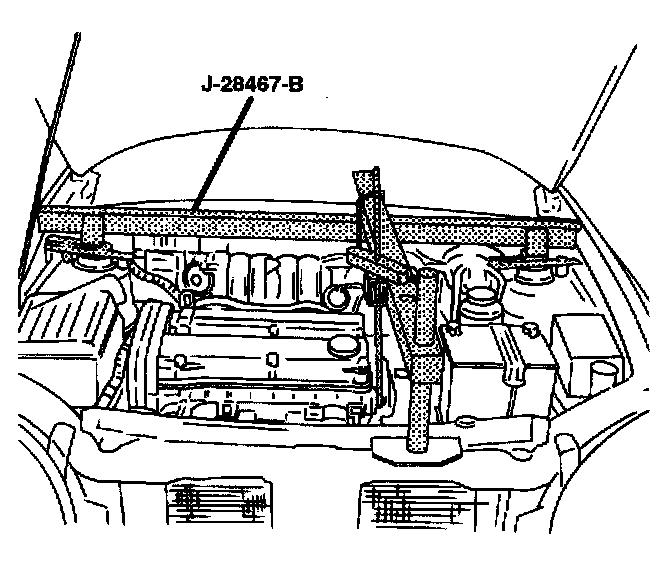

- J-28467-B Engine Support Fixture

Removal Procedure
1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the right front wheel.
4. Remove the right splash shield.





5. Install the engine support fixture J-28467-B.





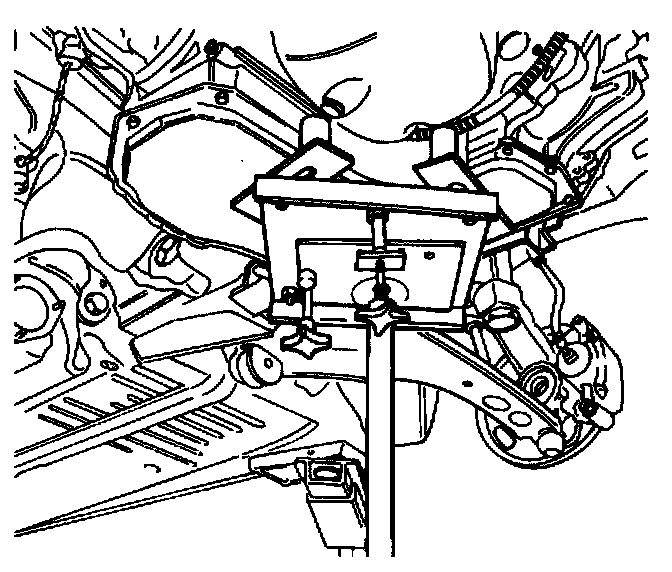

6. Install the transaxle support jack.

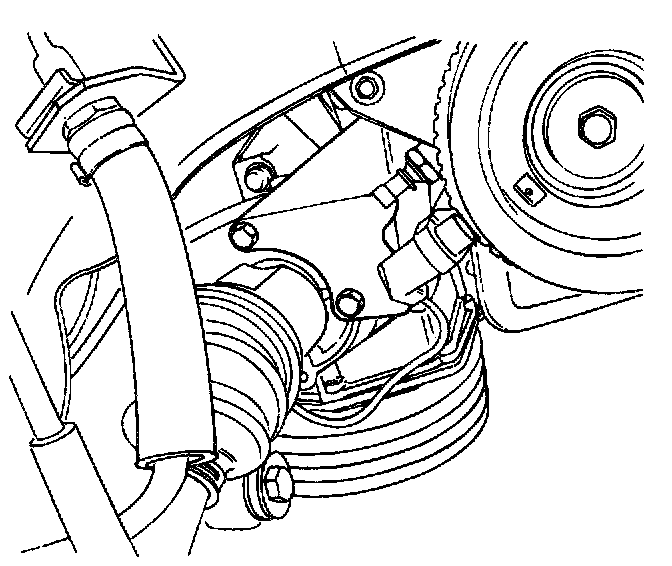

7. Remove the side transaxle mounting bolts.





8. Remove the engine mounting bolts.
9. Remove the transaxle brace.

Installation Procedure

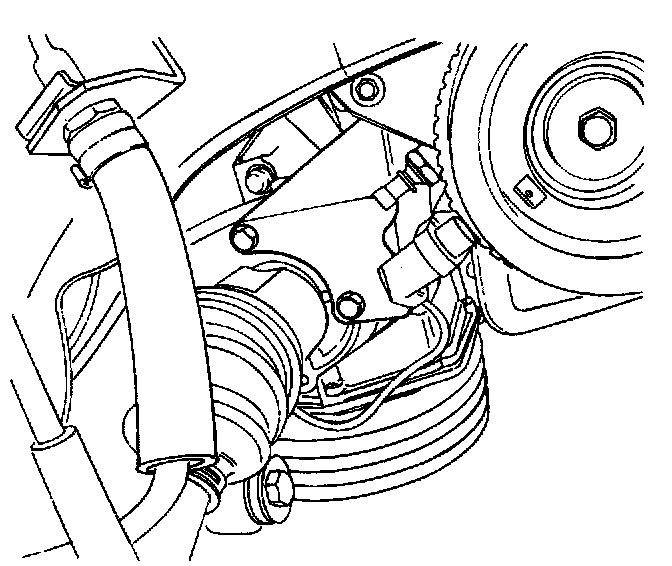

1. Install the transaxle brace.
2. Loosely install the side transaxle mounting bolts.





3. Install the engine mounting bolts.
- Tighten the transaxle mounting bolts to 75 Nm (55 ft. lbs.)
- Tighten the engine mounting bolts to 75 Nm (55 ft. lbs.).





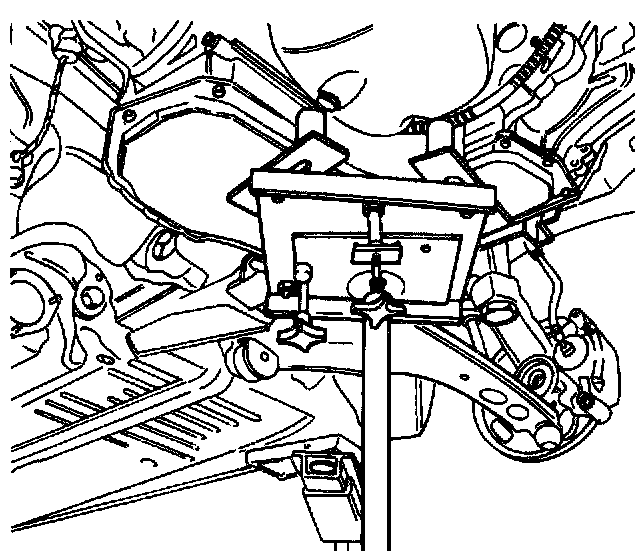

4. Remove the transaxle support jack.





5. Remove the engine support fixture J-28467-B.
6. Install the right splash shield.
7. Install the right front wheel.
8. Lower the vehicle.
9. Connect the negative battery cable.
