Low/Reverse Servo Assembly Assemble

LOW/REVERSE SERVO ASSEMBLY ASSEMBLE

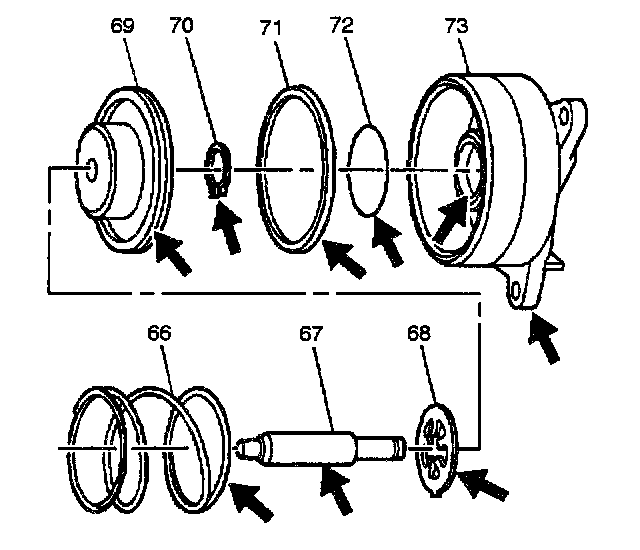

1. Assemble the servo cushion springs (68) and servo piston (69) onto the servo pin (67).
2. Install the snap ring onto the servo pin (67) in order to retain the servo cushion springs (68) and the servo piston (69).
3. Assemble the new seals (71, 72) onto the servo piston (69) and the servo cover (73).
4. Assemble the servo piston assembly (67-70) into the servo cover (73). Lubricate the piston seals with transmission fluid in order to aid in assembly.
