Leganza CDX L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>

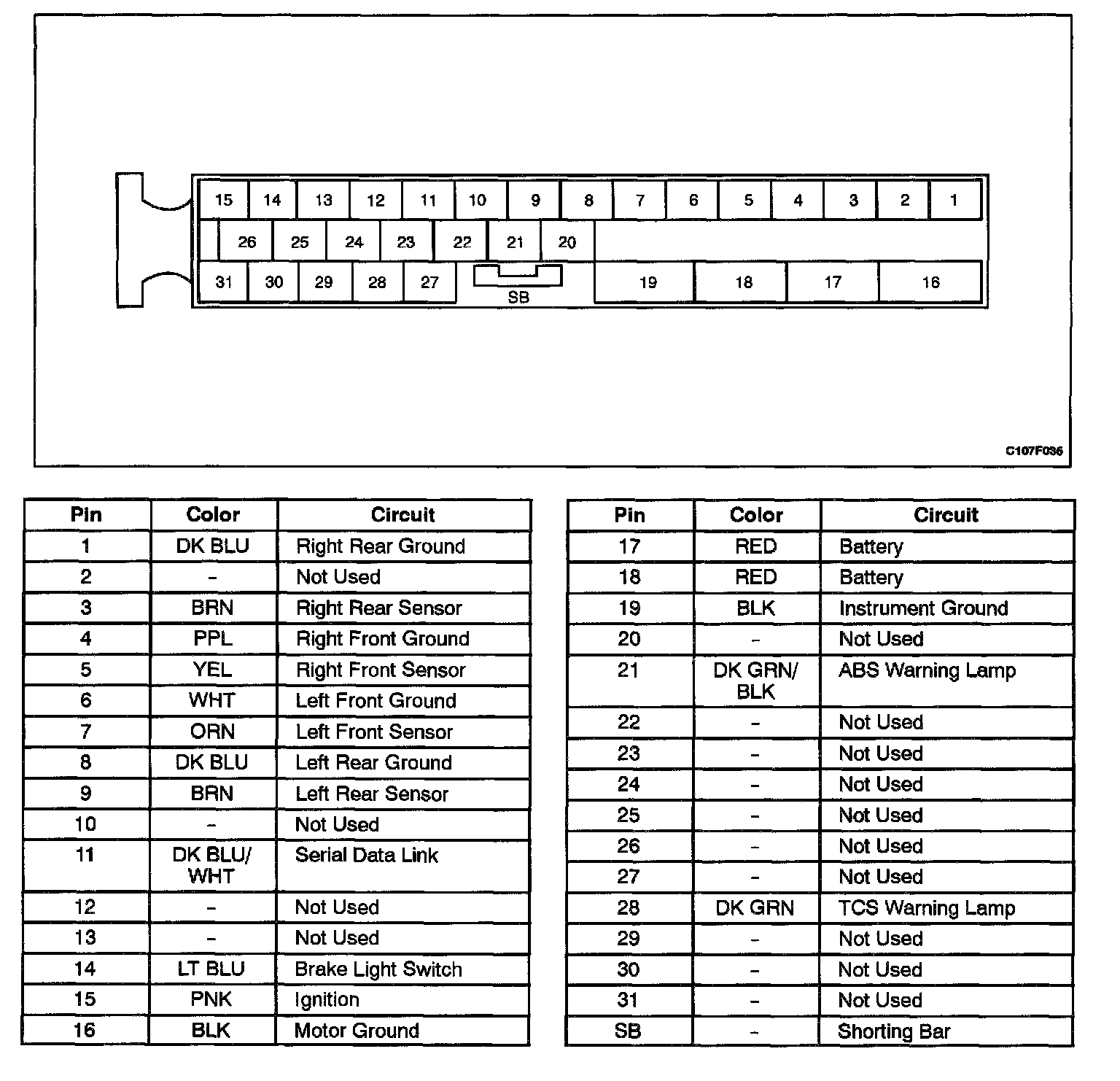

EBCM Connector Face View (With Traction Control System)
EBCM Connector Face View (With Traction Control System)
