Ignition Tests

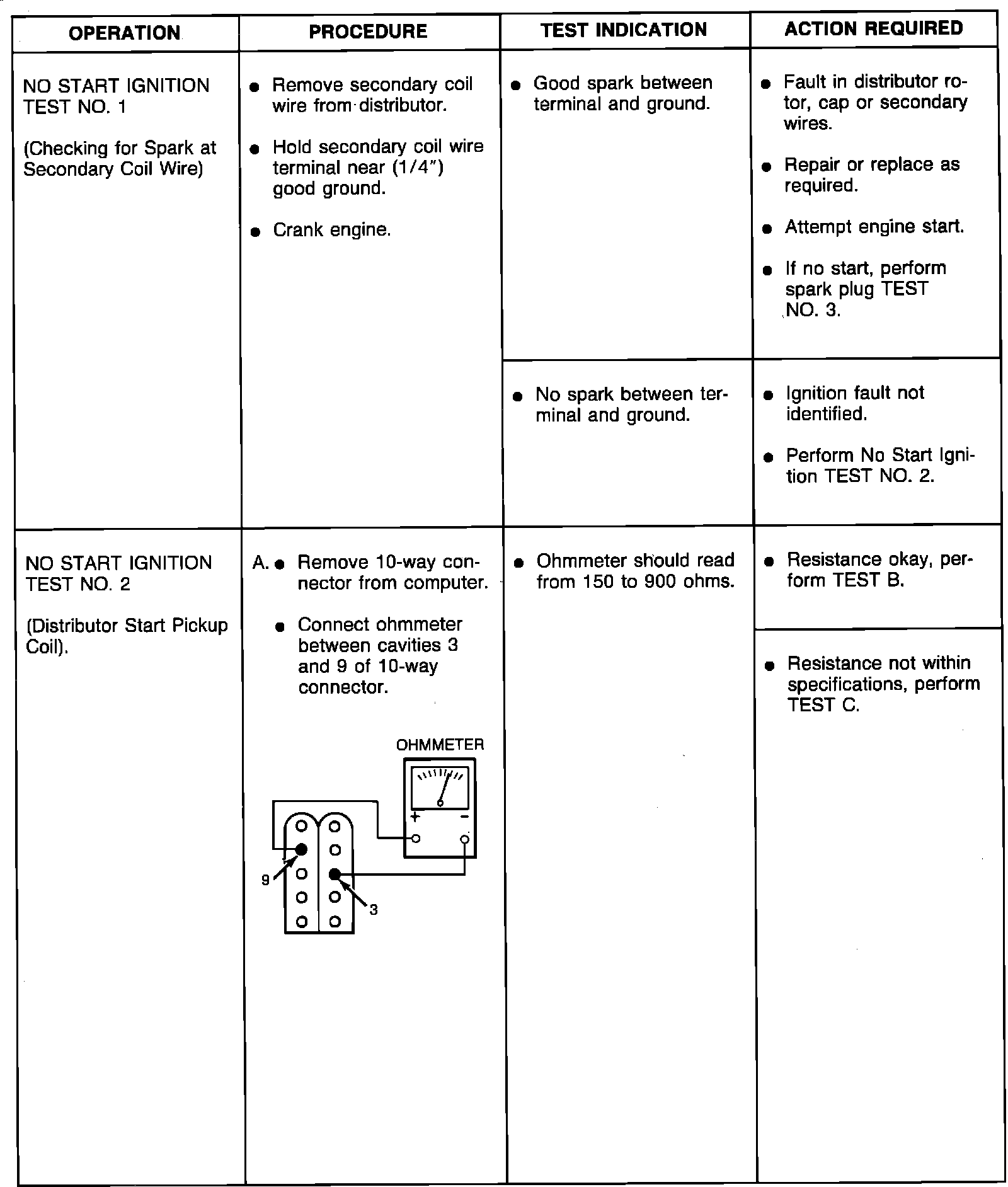

Test 1 & 2-Step A:

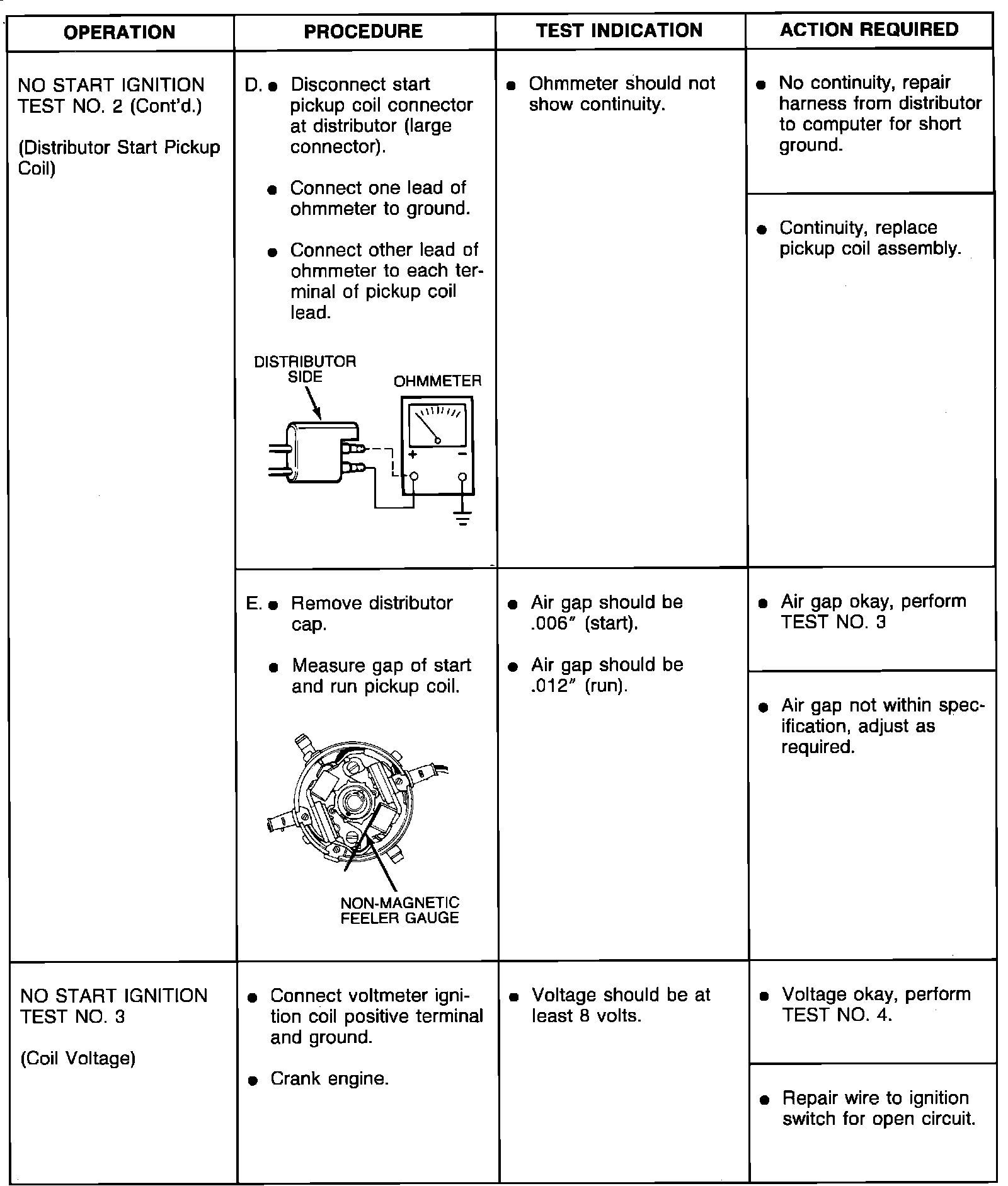

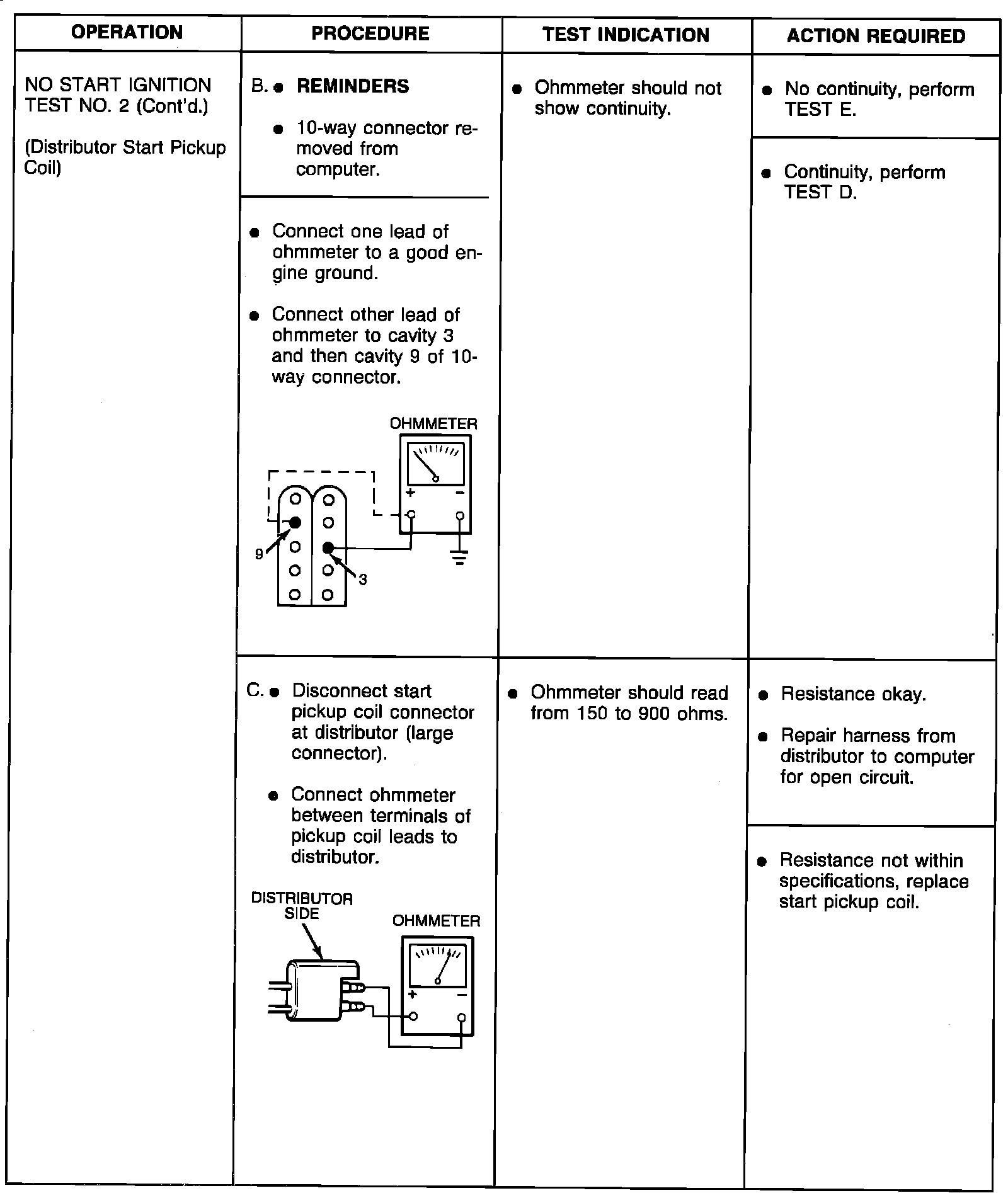

Test 2-Step B & C:

Test 2-Step D & E, Test 3:

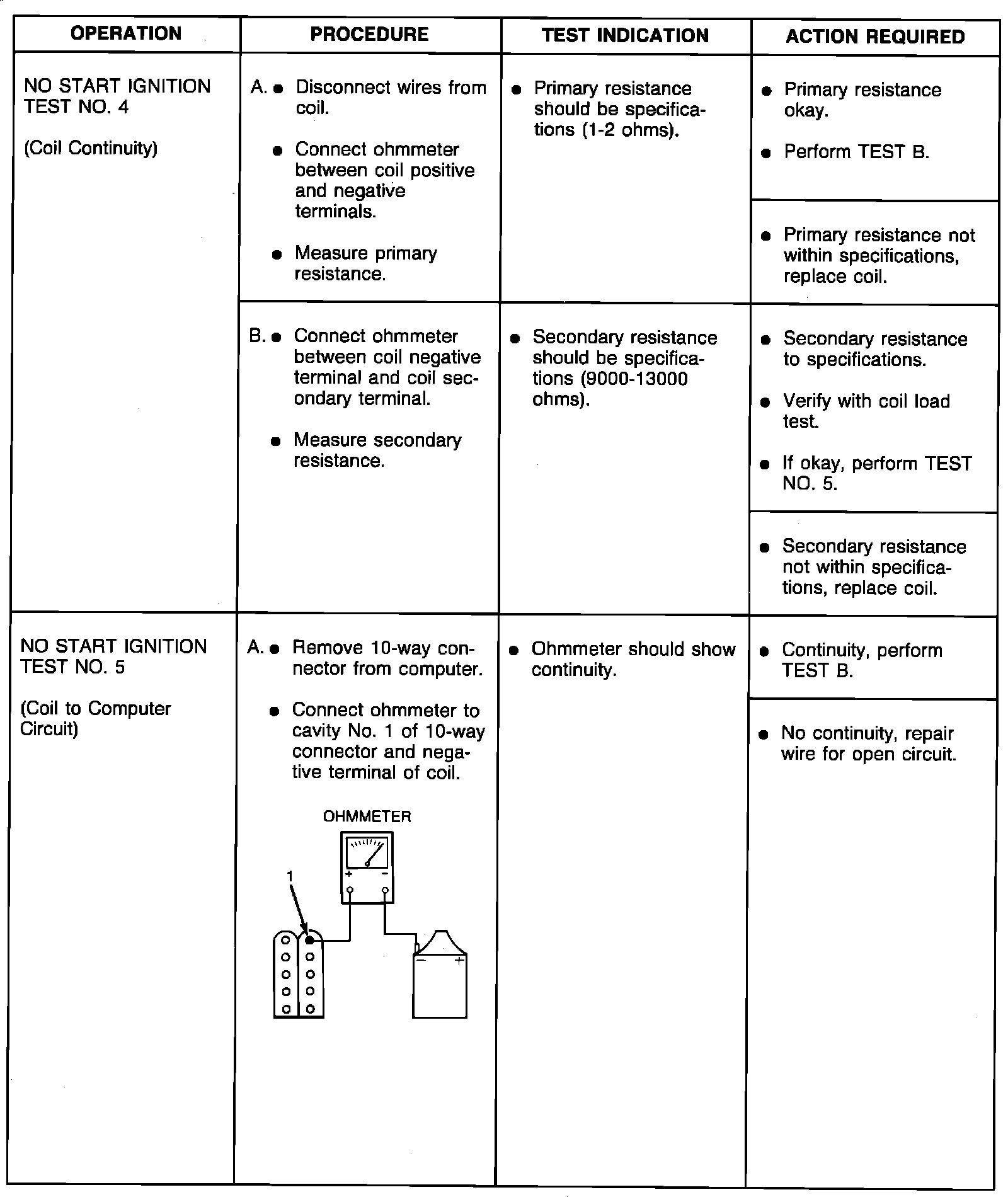

Test 4-Step A & B, Test 5-Step A:

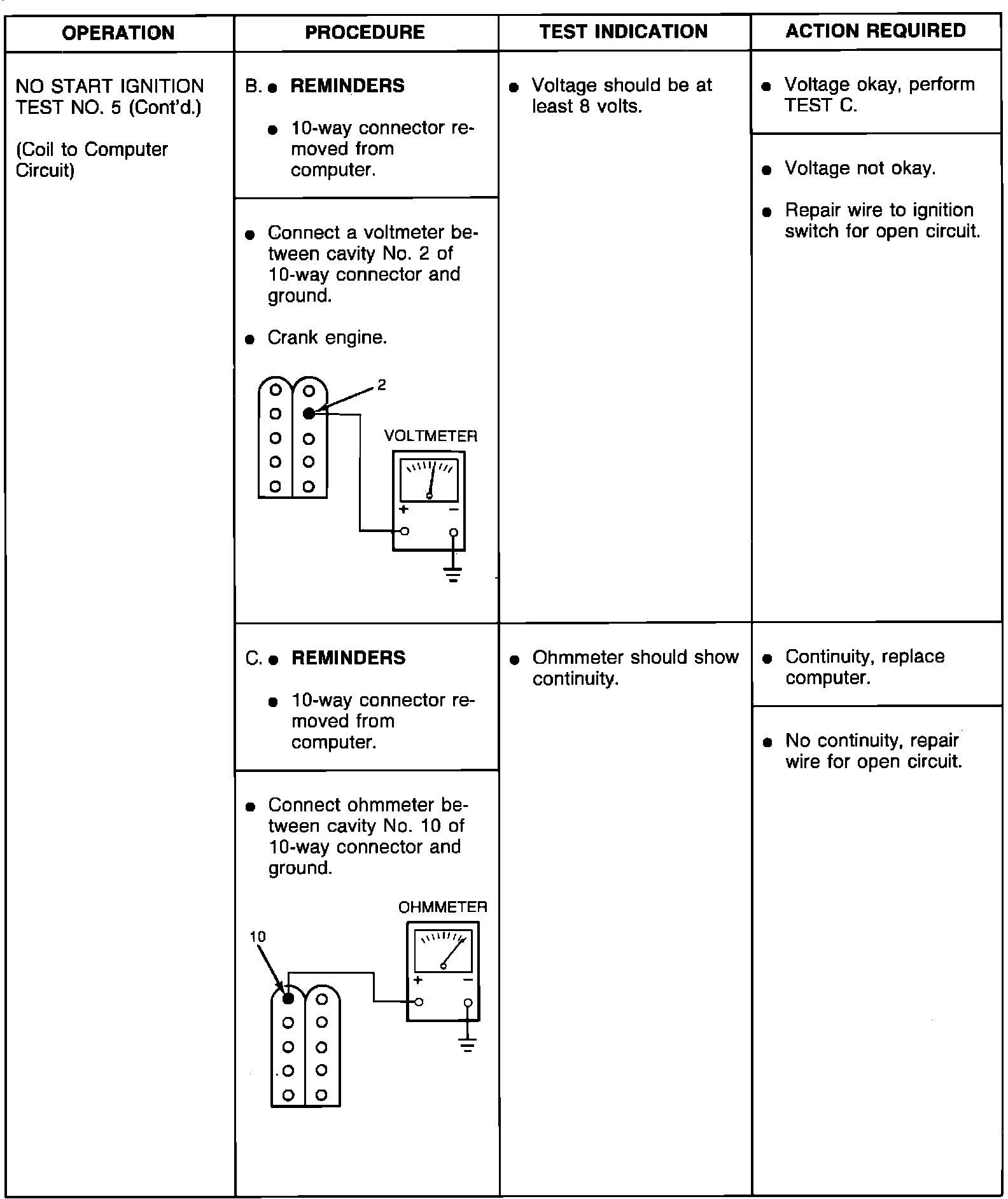

Test 5-Step B & C:
