Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge and Ram
>>
1984
>>
Mini Ram Van L4-134 2.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Component Locations
>>

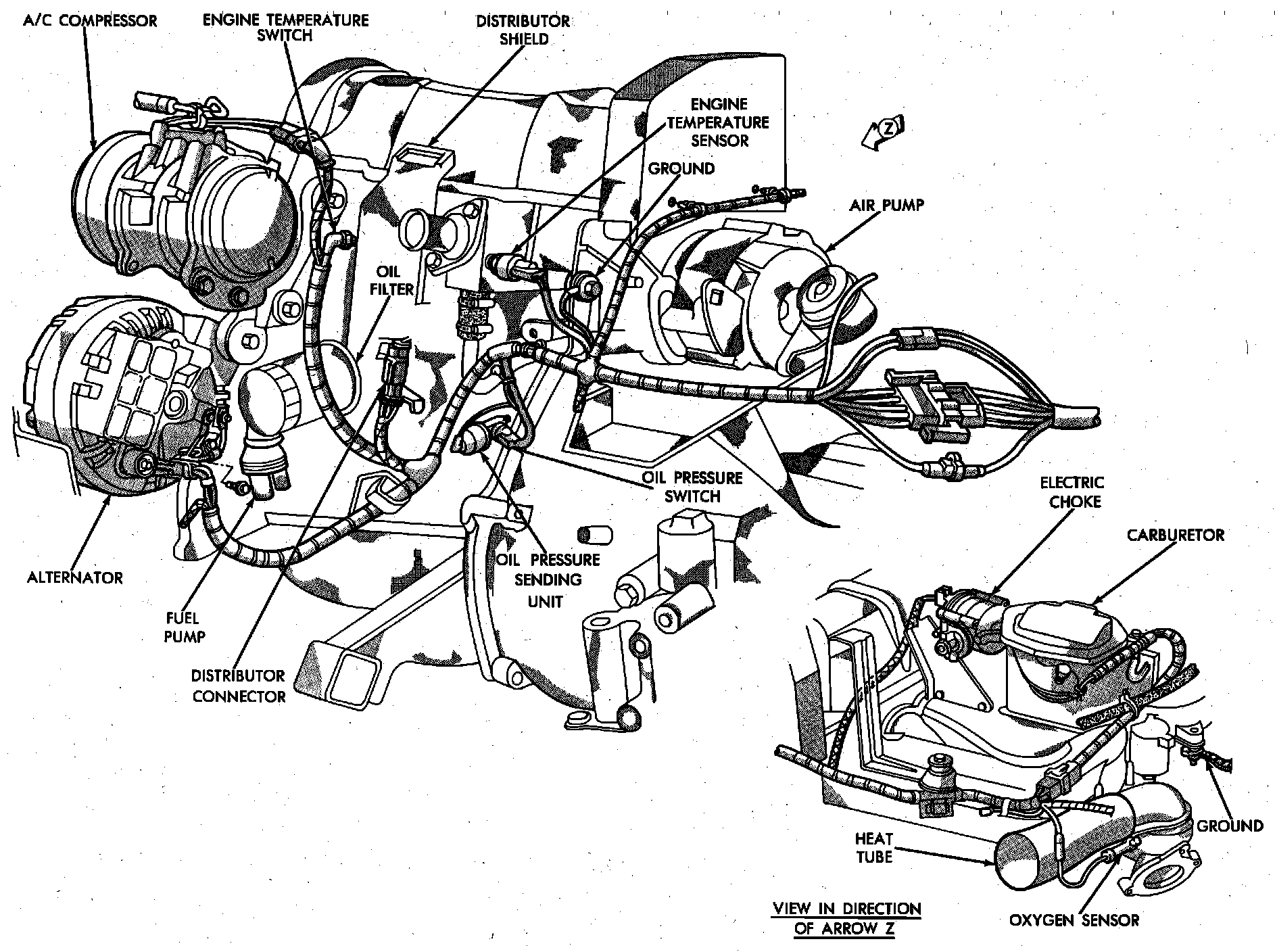

Coolant Temperature Sensor
Coolant Temperature Sensor
Engine Electrical & Related Components.:
Upper RH Side Of Engine
Applicable to: 1984-85 w/2.2L Engine
