Disassembly and Assembly

Transaxle (Left Side):

Transaxle (Right Side):

Transaxle (Front End View):

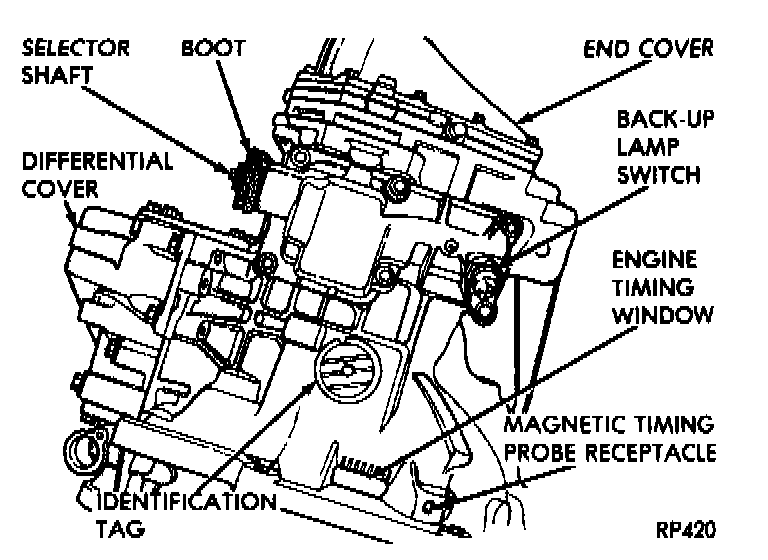

Transaxle (Top View):

Transaxle (Rear End View):

Remove/Install 2 Extension Outer Bolts:

Remove/Install 3 Differential Bearing Retainer Outer Bolts:

Remove/Install Differential Cover Bolts:

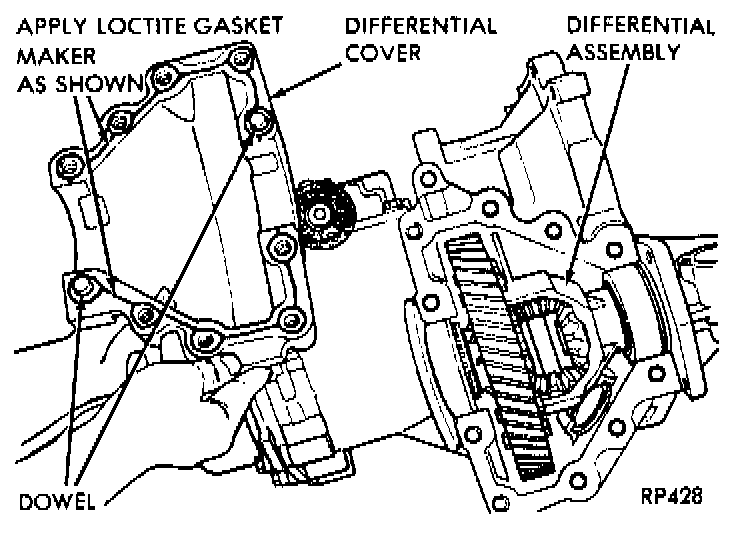

Remove Differential Cover:

Differential Cover Removed:

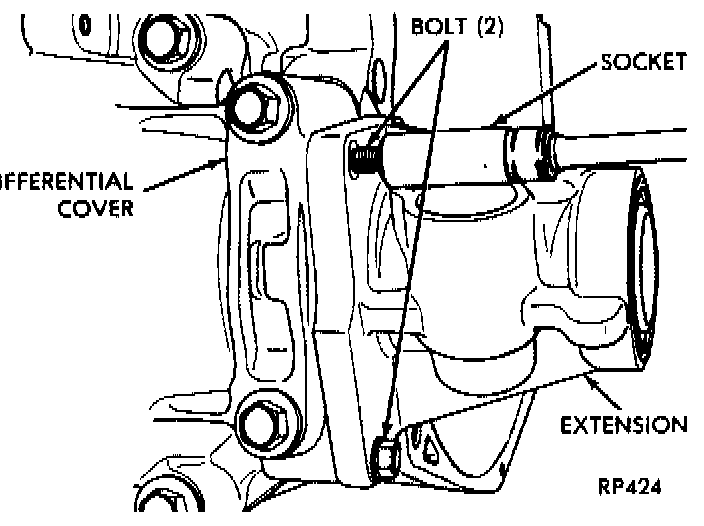

Remove/Install 2 Extension Bolts:

Remove/Install Extension:

Remove/Install 3 Differential Bearing Retainer Bolts:

Remove/Install Differential Bearing Retainer:

Differential Assembly - Removed:

Remove/Install Selector Shaft Housing:

Selector Shaft Housing Assembly:

Rear End Cover Bolts:

Remove/Install Rear End Cover:

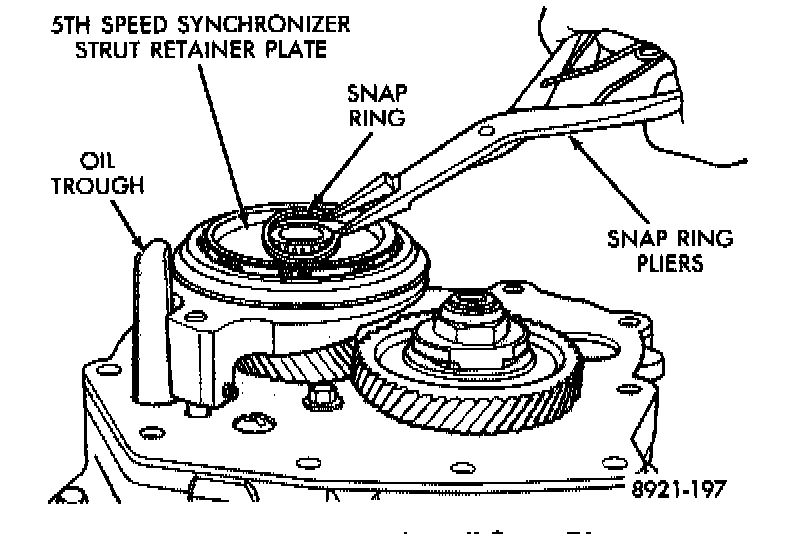

Remove/Install Snap Ring:

Remove/Install 5th Fork Set Screw:

CAUTION: Mark the synchronizer sleeve and hub for reassambly.

Remove/Install 5th Speed Synchronizer Sleeve And Shift Fork:

Remove 5th Speed Gear And Synchronizer With Struts:

Install 5th Speed Synchronizer With Struts:

Intermediate Shaft 5th Speed Gear:

Holding Transaxle To Remove/Install Nut:

Remove/Install Input Shaft 5th Speed Gear Nut:

CAUTION: Tool 6252 must be used to remove/install this nut. Always install a new nut and torque to 258 Nm (190 ft. lbs.).

Bearing Support Plate Bolts:

CAUTION: Do not damage bearing support plate.

Pry Off Bearing Support Plate:

Remove/Install Snap Ring:

Tap Bearing Retainer Plate To Remove:

Bearing Retainer Plate - Removed:

5th Speed Shifter Guide Pin:

1st-2nd Shift Fork Set Screw:

Remove/Install Shift Fork Rail:

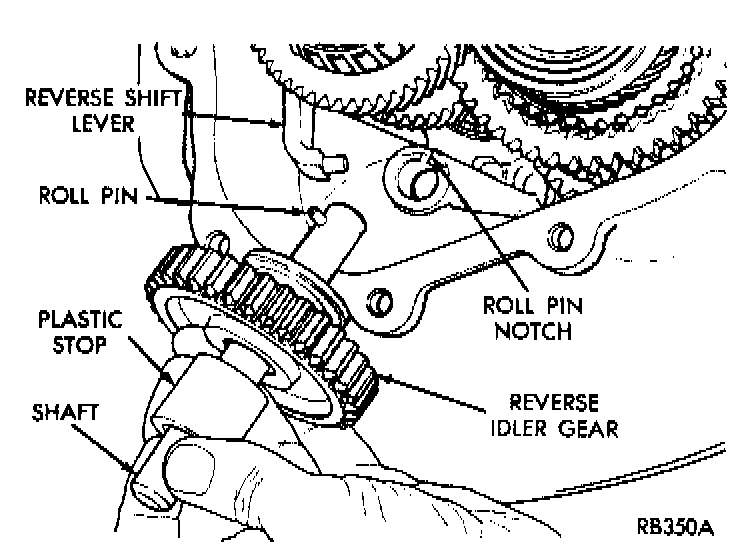

Remove/Install Reverse Idler Gear Shaft And Gear:

Reverse Idler Gear Shaft And Plastic Stop:

Remove/Install Gear Set:

Gear Set - Removed:

Remove Retaining E-Clip:

Remove/Install Clutch Release Shaft:

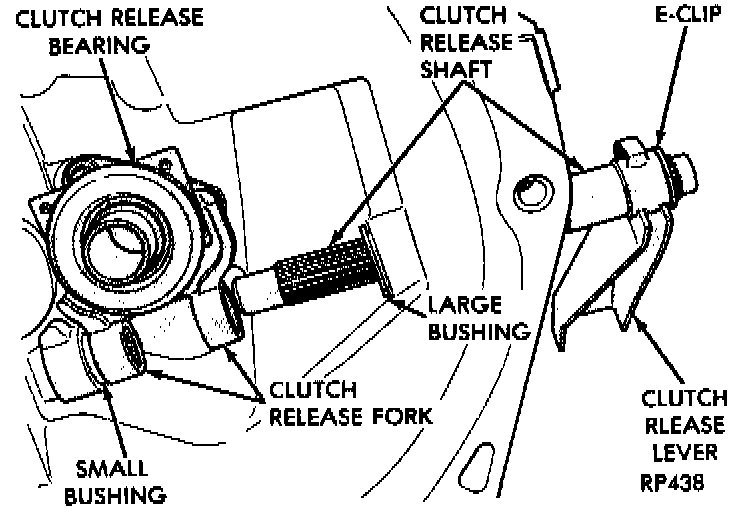

Clutch Release Shaft Components:

Remove/Install Input Shaft Seal Retainer:

Input Shaft Seal Retainer:

Install New Input Shaft Seal:

Remove/Install Reverse Shift Lever E-Clip:

Reverse Shift Lever Components:
