Data Link Connector: Locations

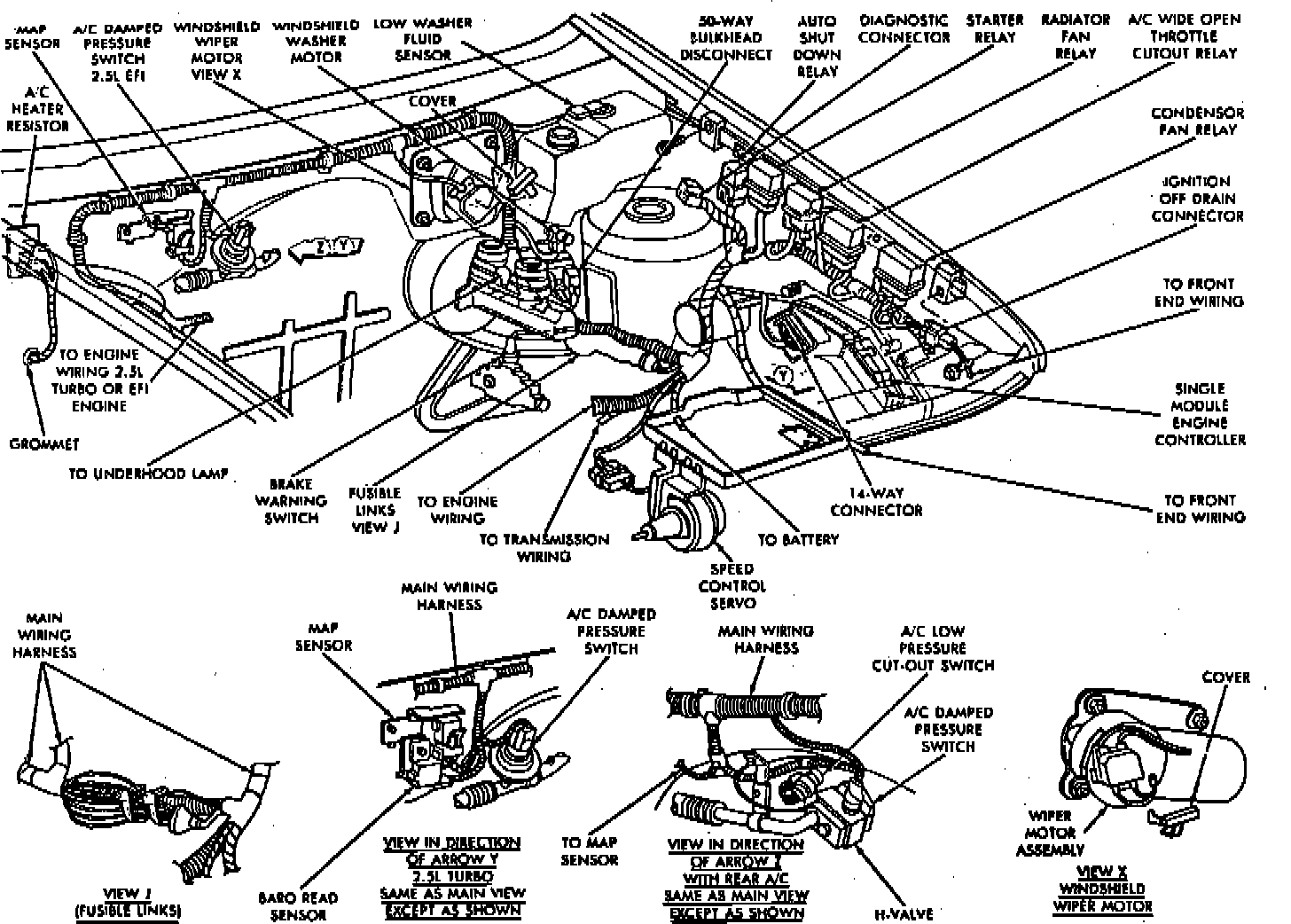

Engine Compartment Components:




The Diagnostic Connector is found on the left side of the engine compartment, behind the battery, and near the left strut tower. It is also near the Auto Shut Down (ASD) Relay.
