Cruise Control Switch: Testing and Inspection

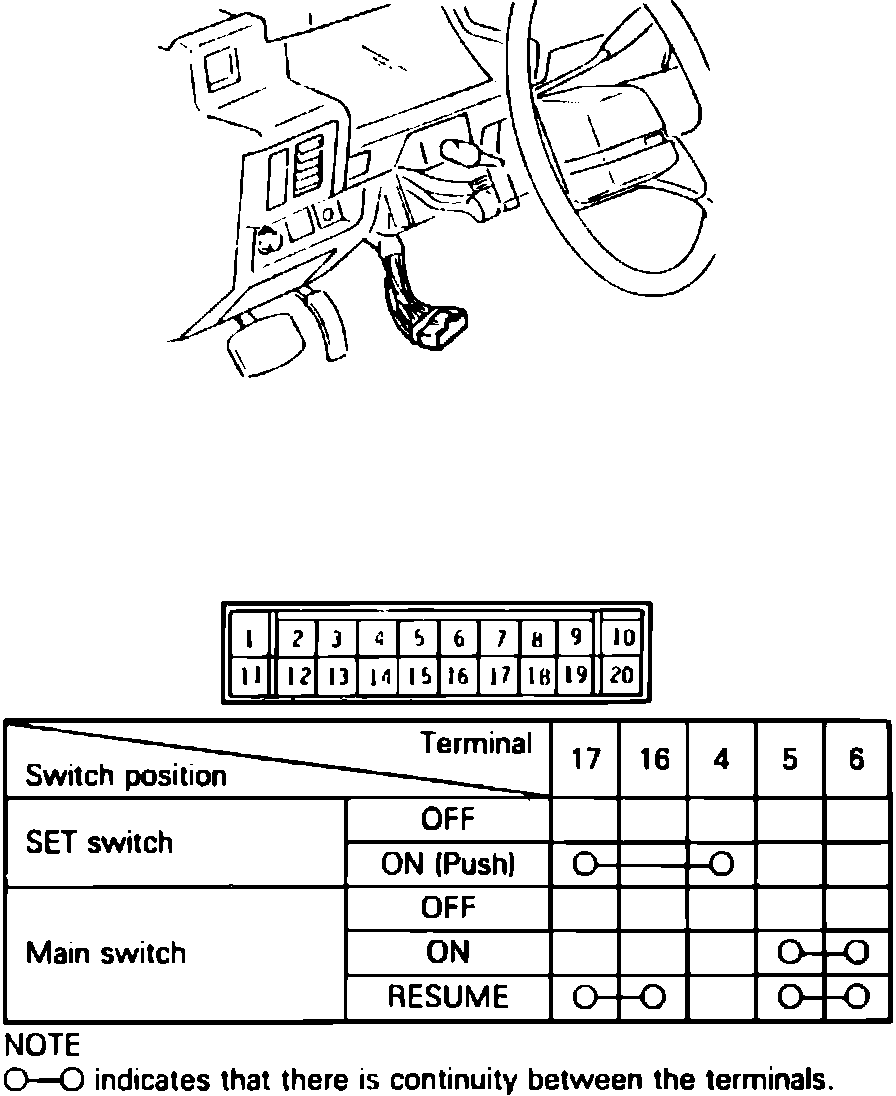

Ram Raider Control Switch Continuity Test:

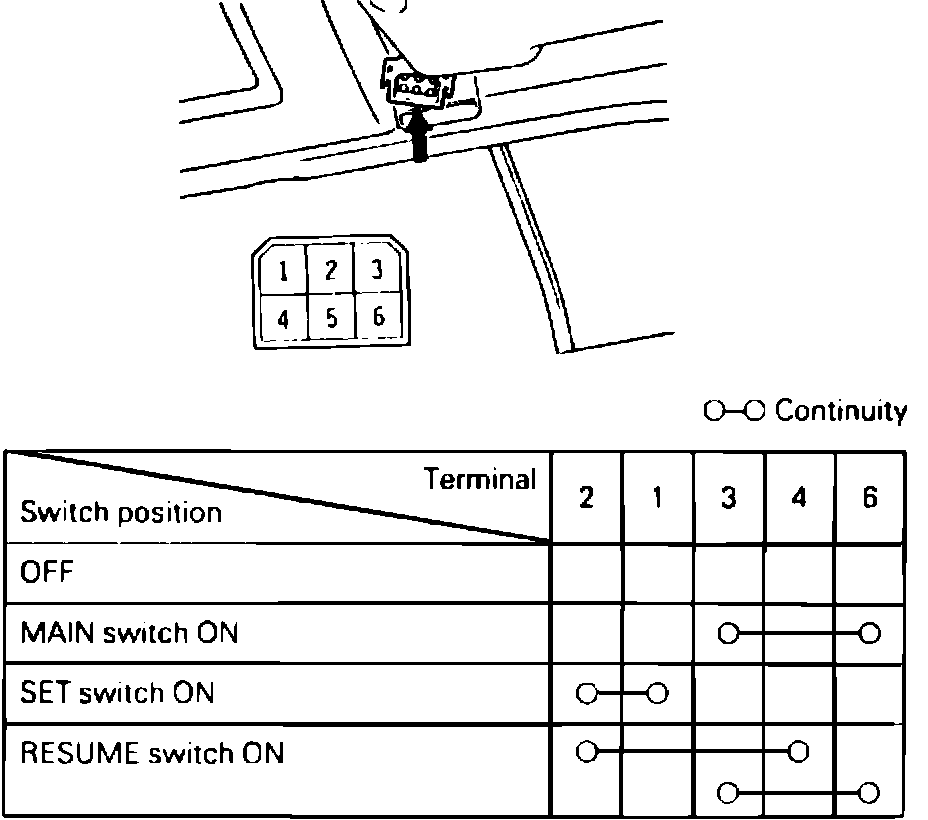

Ram 50 Control Switch Continuity Test:





Refer to applicable control switch continuity chart.
