Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch

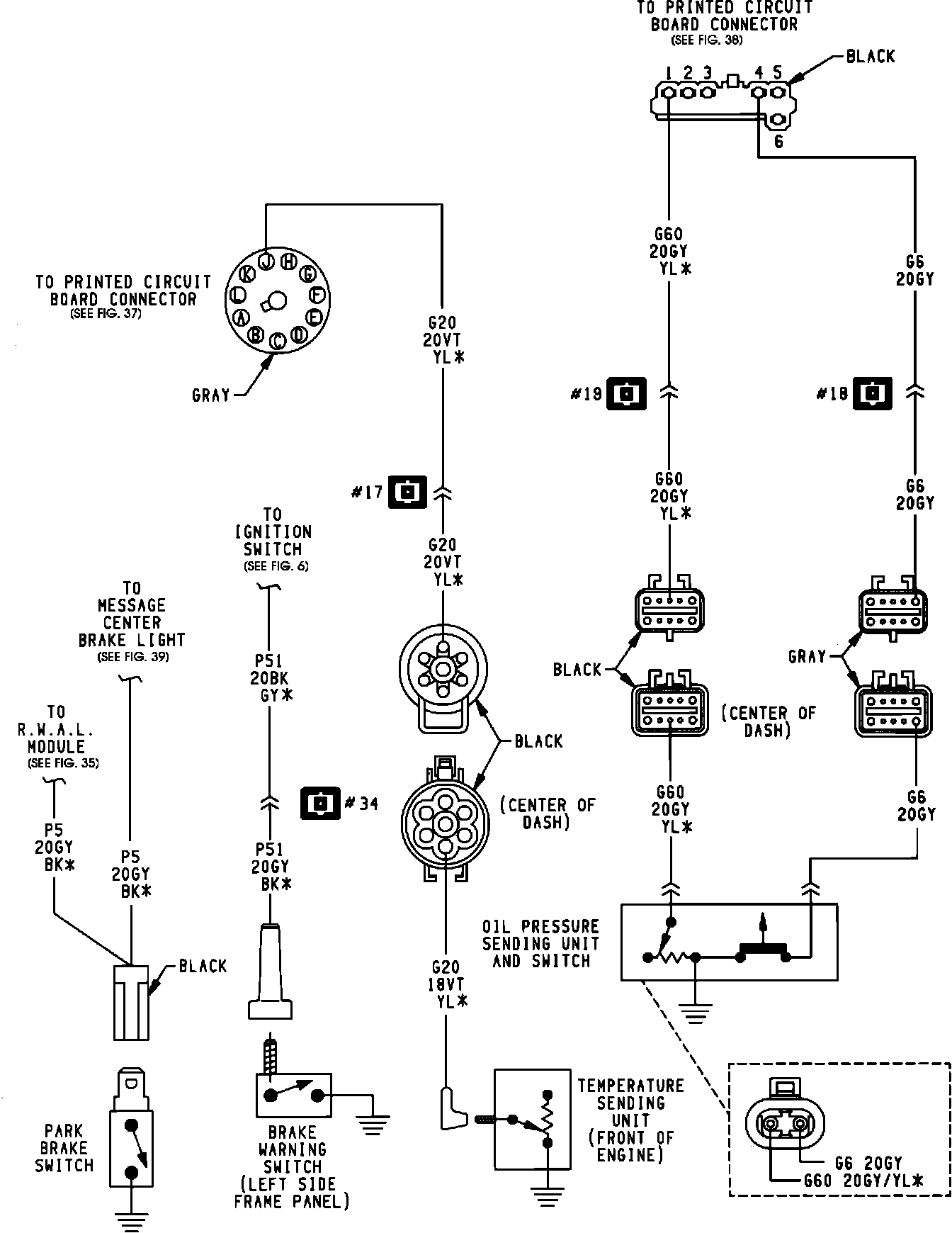

Brake, Oil & Temperature Warning Lamp System:
