Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge and Ram
>>
1990
>>
D 100 Ramcharger V8-318 5.2L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-24 "PTU Solenoid Circuit"
>>
Part 1 of 2
Do you have access to Mitchell1 Prodemand?
If you are willing to share user/password (we can pay $250), please get in contact with us ASAP: email operation-charm [[at]] tuta.io or
click to submit anonymously
. (This is the last day we'll be asking)
Part 1 of 2

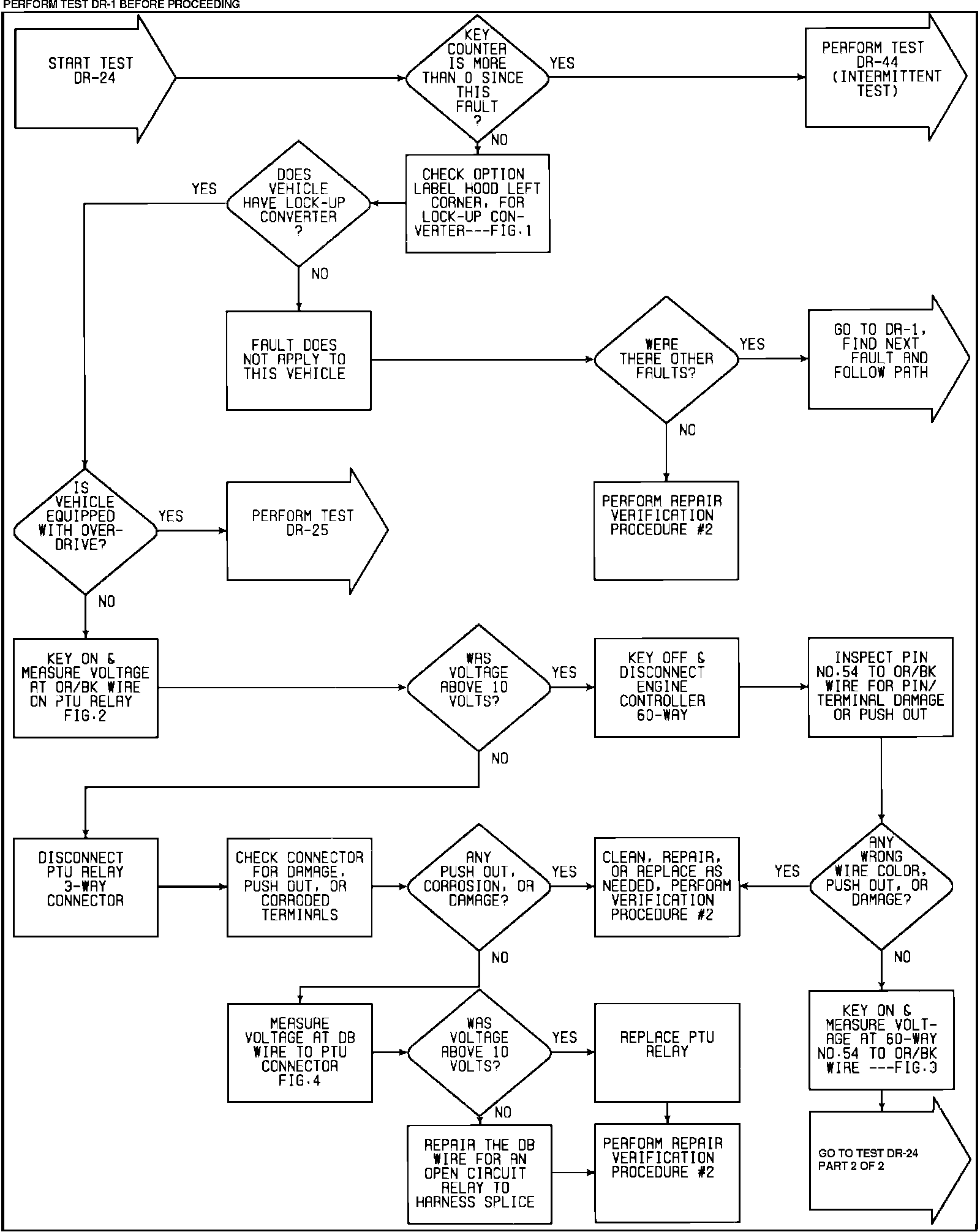

DR-24 - Repairing Fault "PTU Solenoid Circuit":

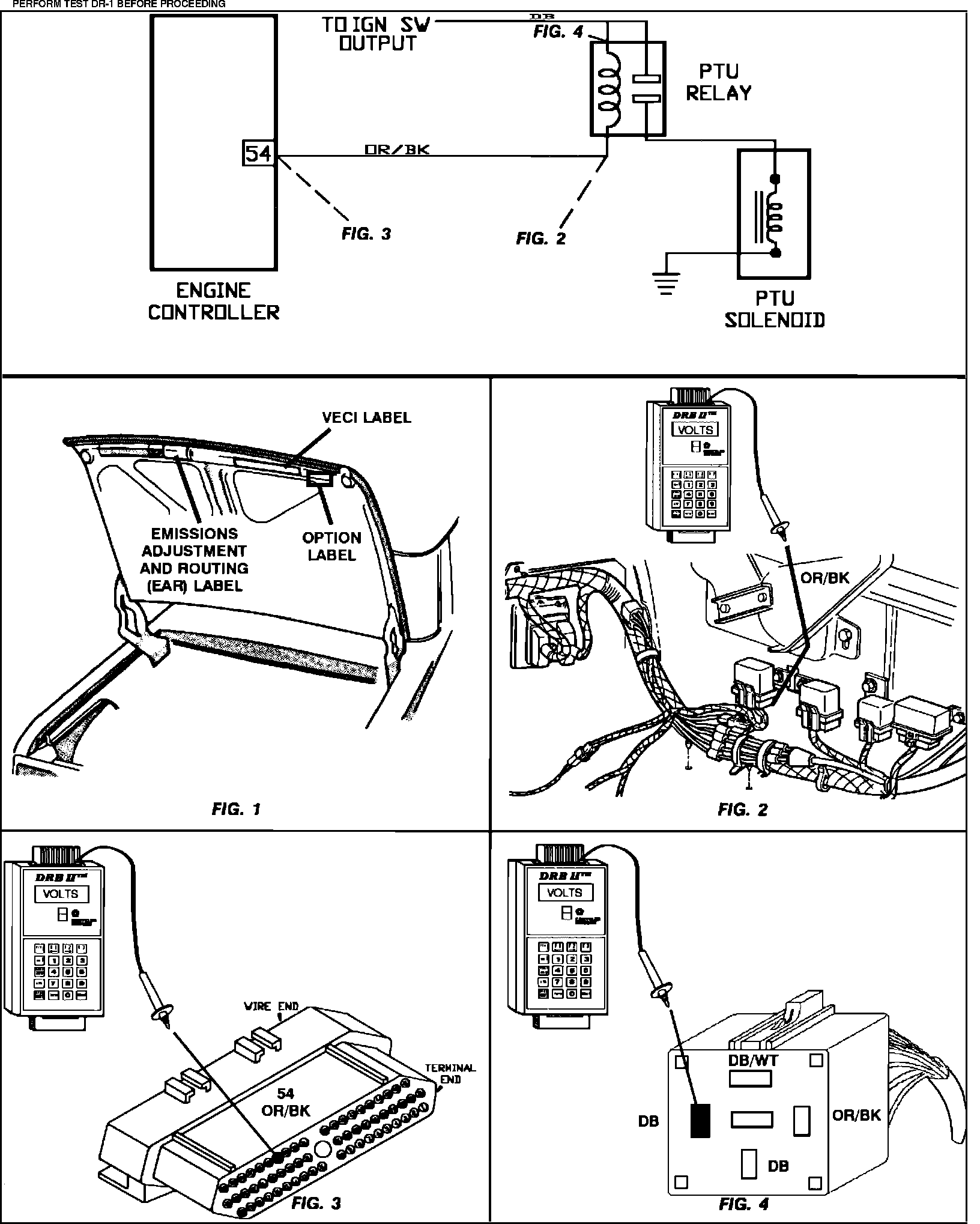

DR-24 - Repairing Fault "PTU Solenoid Circuit":
