Brake Drum Removal

For additional information see Notes, Warnings, and Hints.

Fig. 9 Release Brake Adjuster:

Fig. 6 Release type brake adjuster:

1. Remove the tire and wheel assembly.
2. Remove rear plug from brake adjusting access hole.
3. Insert a thin screwdriver into brake adjusting hole and hold adjusting lever away from notches of adjusting screw.
4. Insert Tool C-3784 or equivalent, into brake adjusting hole and engage notches of brake adjusting screw. Release brake by prying down with adjusting tool.

NOTE: The rear hubs are held on by the axle nut which should be covered by a dust cap.

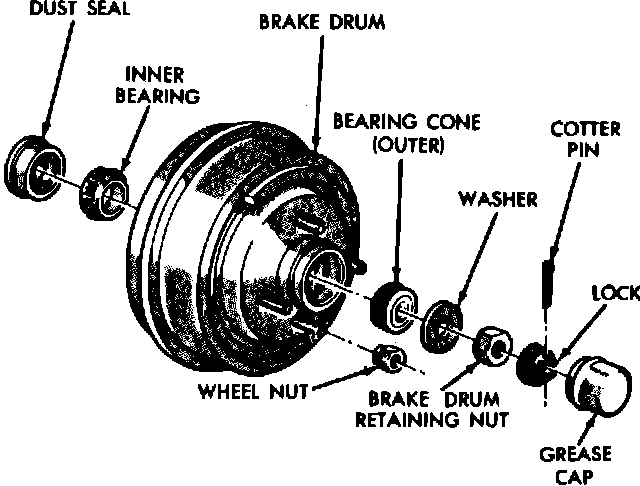

Fig. 3 Wheel bearing assembly:

5. Remove rear hub and drum assembly.
6. Inspect brake lining for wear, shoe alignment, or contamination from grease or brake fluid. Inspect wheel bearings for rust or signs of wear.
