Part 1 of 2

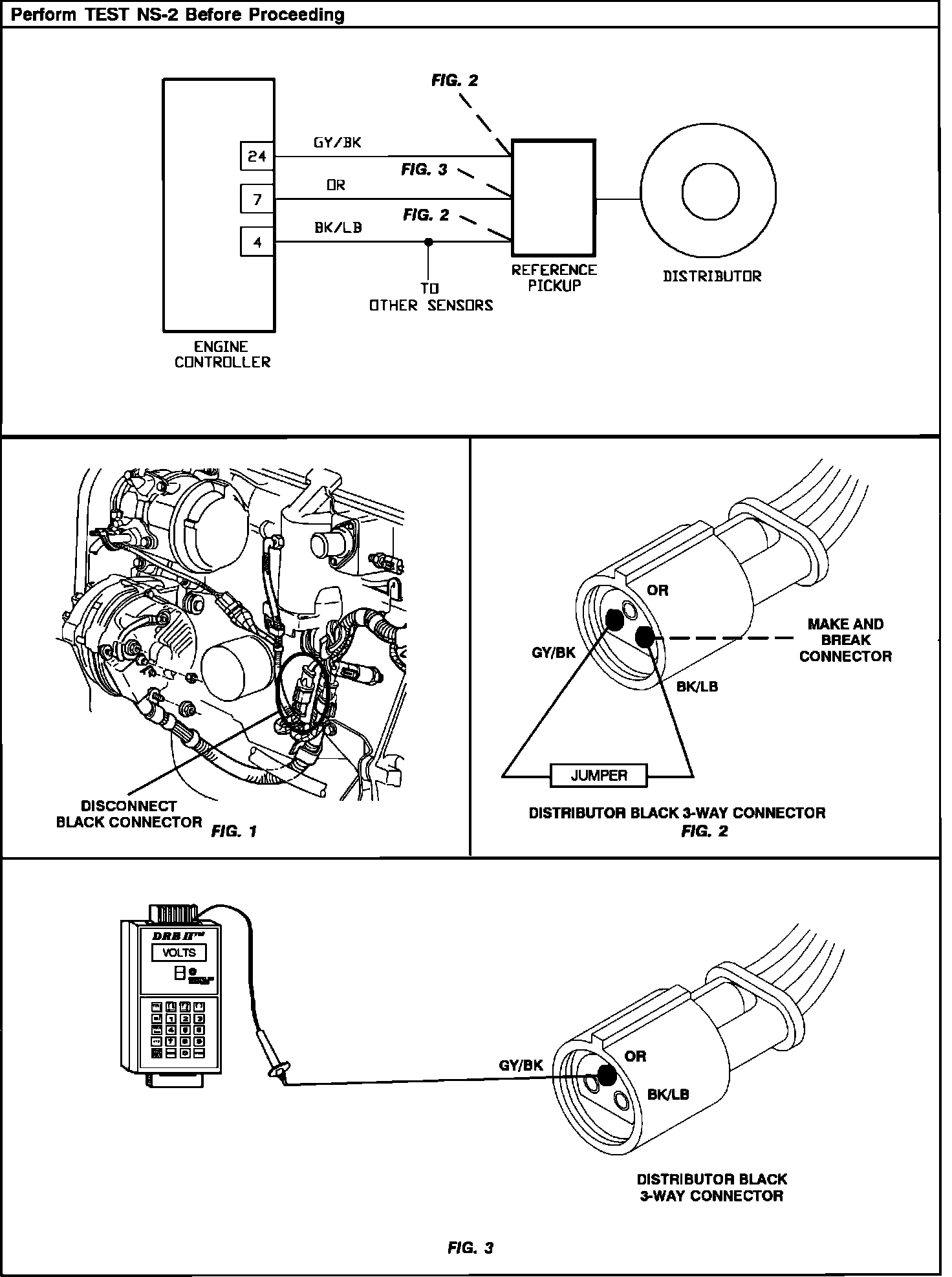

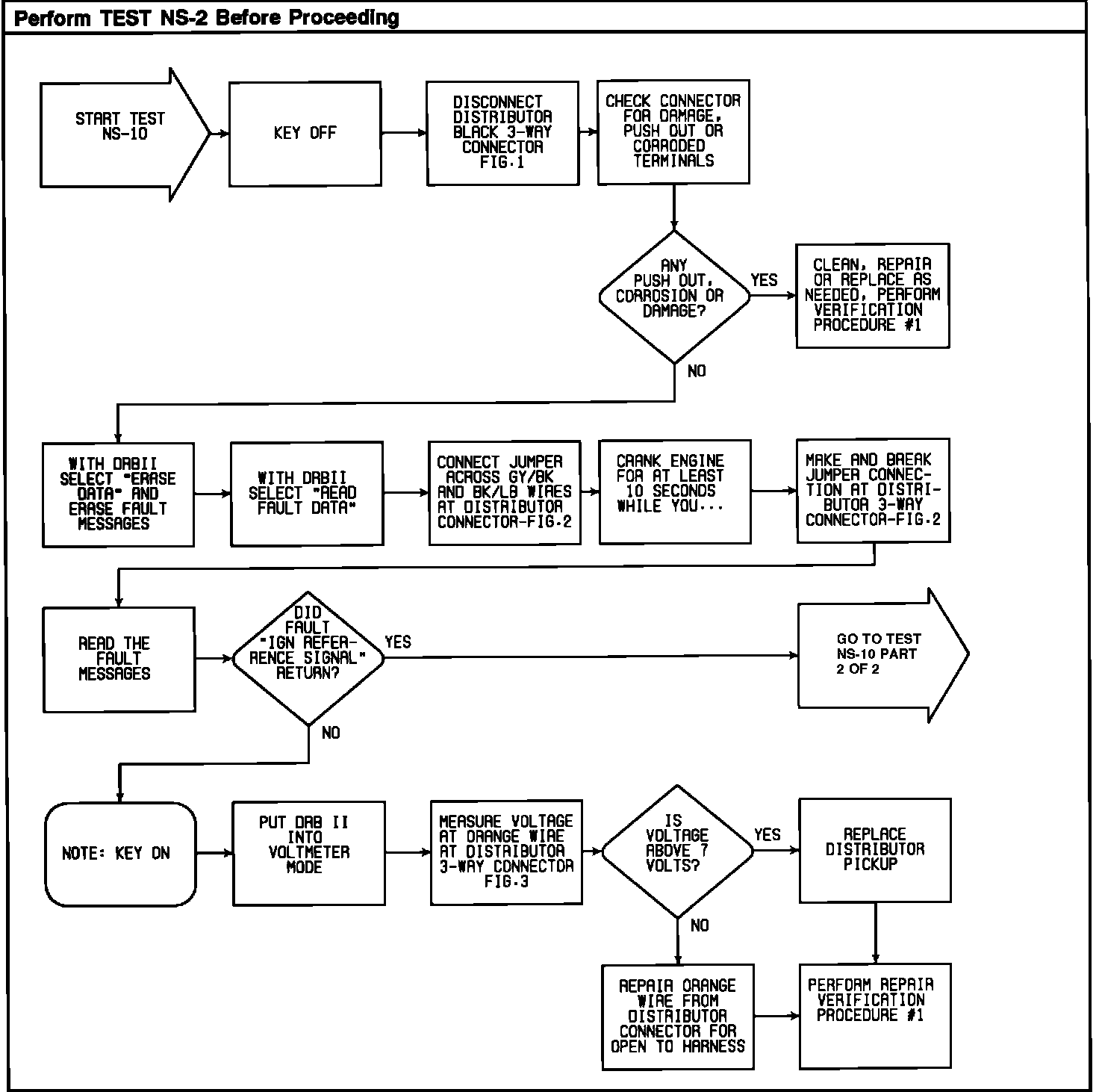

Test NS-10 - Repairing Fault Message "Ignition Reference Signal":



Test NS-10 - Repairing Fault Message "Ignition Reference Signal":
