Rear Carrier Pinion Nut - Service/Torque Revision

91chrysler01

SUBJECT: AWD Power Transfer Unit Torque Specifications And Procedure Revision


NO.: 03-01-91


GROUP: REAR AXLE


DATE: April 8, 1991


MODELS: 1991 (AS) CARAVAN/GRAND CARAVAN/CARAVAN C/V (AWD) VOYAGER/GRAND VOYAGER (AWD)

THIS BULLETIN SUPERCEDES TECHNICAL SERVICE BULLETIN # 03-02-90, WHICH SHOULD BE
REMOVED FROM YOUR FILES. ALL REVISIONS ARE INDICATED WITH > > ARROWS < <


DISCUSSION

Figure 1:

A new service procedure and torque specification has been developed for the rear carrier pinion nut to prevent torque loss (Figure 1). When performing any rear carrier servicing operation that requires the removal of the pinion nut, the following revised procedure must be used when installing the pinion nut.


REVISED SERVICE PROCEDURE:

1. Thoroughly clean the pinion nut and pinion shaft threads with a non-oily solvent, such as Mopar Brake And Carburetor Parts Cleaner PN 4318037.

2. Apply Mopar Lock and Seal Adhesive PN 4318031 to both the pinion nut and pinion shaft threads.

3. Install pinion nut and tighten to > > 380 N-m (280 ft.lbs.) < < torque.

4. Wipe off all excess adhesive.

Figure 2:

SERVICE MANUAL REVISION:

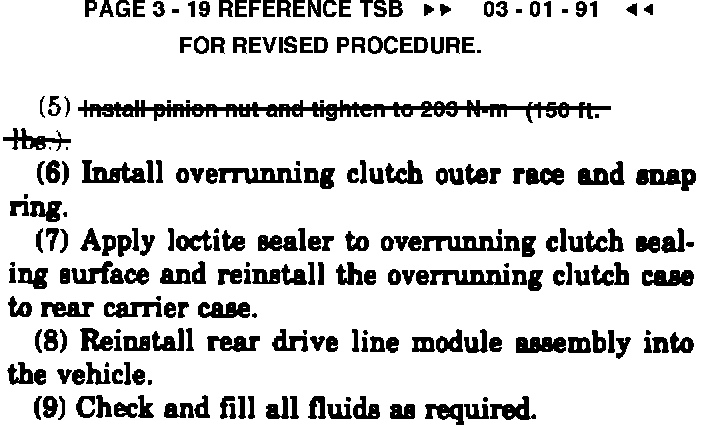

Please make reference to this Technical Service Bulletin in your 1991 Front Wheel Drive, All Wheel Drive Van/Wagon Service Manual, Publication No. 81-370-1105, on page 3-19 shown in Figure 2 and > > insert the revised pages, 3-41 and 3-42 < <.


POLICY: Information only
