Inspection

Determine if the vehicle requires the recall service package by inspecting the current high pressure hose that is on the vehicle:

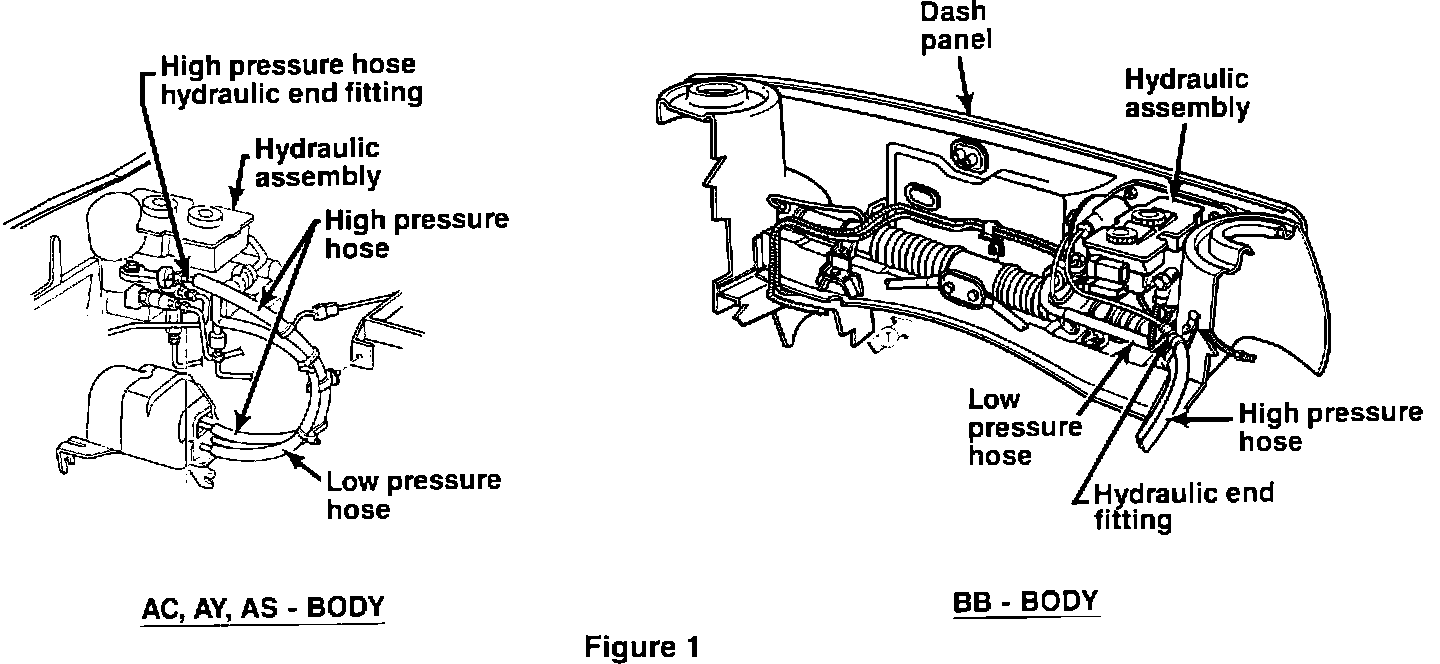

^ Check the hose by looking at the hydraulic end fitting (Figure 1).

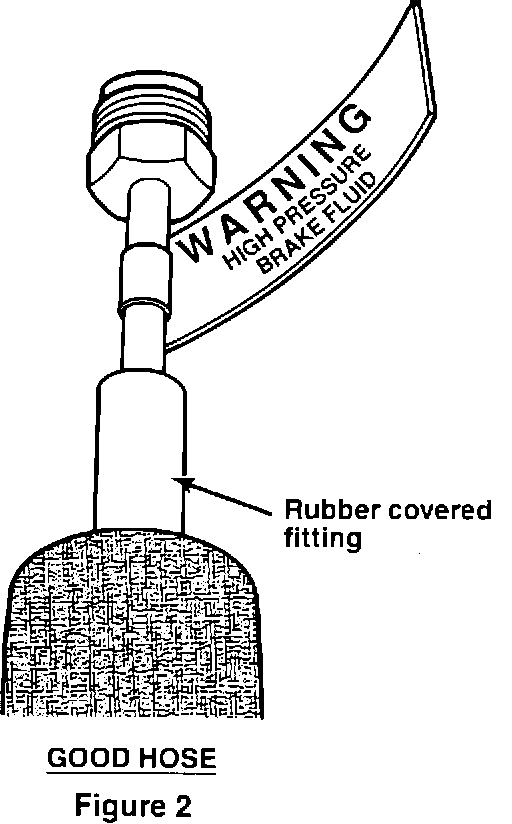

^ If the hose has a rubber covered end fitting as in Figure 2 the hose has already been replaced and does not require replacement again.

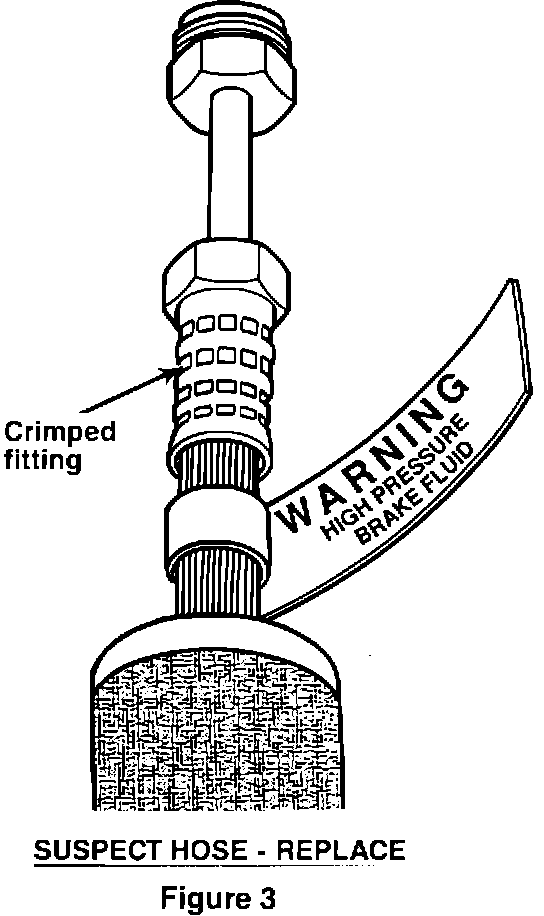

^ If the hose has a crimped end fitting end as in Figure 3 follow the replacement procedure.
