Service Procedure

1. Remove the fuse block access panel located on the lower instrument panel, to the left of the steering column.

2. Locate the relay bank to the left of the fuse block panel opening.

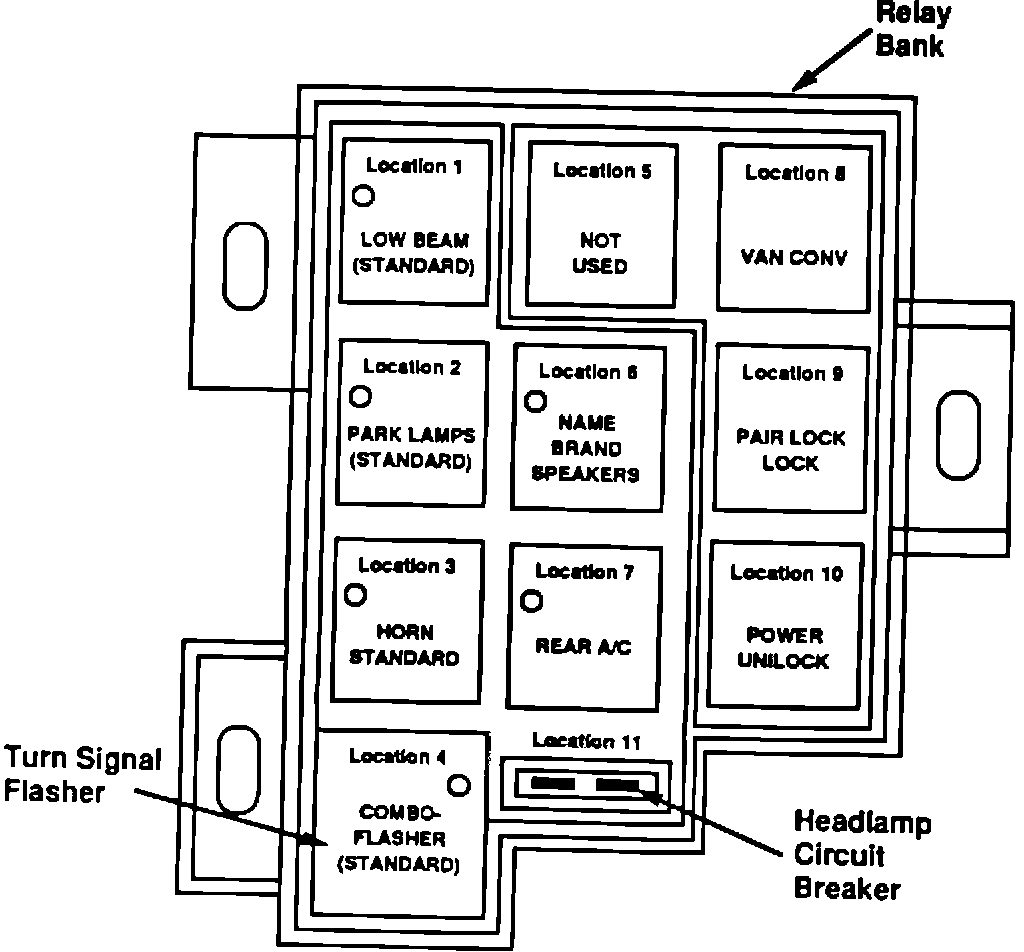

3. Remove the turn signal flasher (shown in location 4 of the relay bank illustration below) and replace ft with the supplied flasher.

NOTE: Removal of the headlamp circuit breaker will provide for better access to the turn signal flasher. If removed, be sure to reinstall the circuit breaker after replacing the flasher.

4. Reinstall the fuse block access panel.
