A. Install Buckle Cover Retaining Clips On Front

(and if equipped, Rear Quad) Seat Belt Buckles:

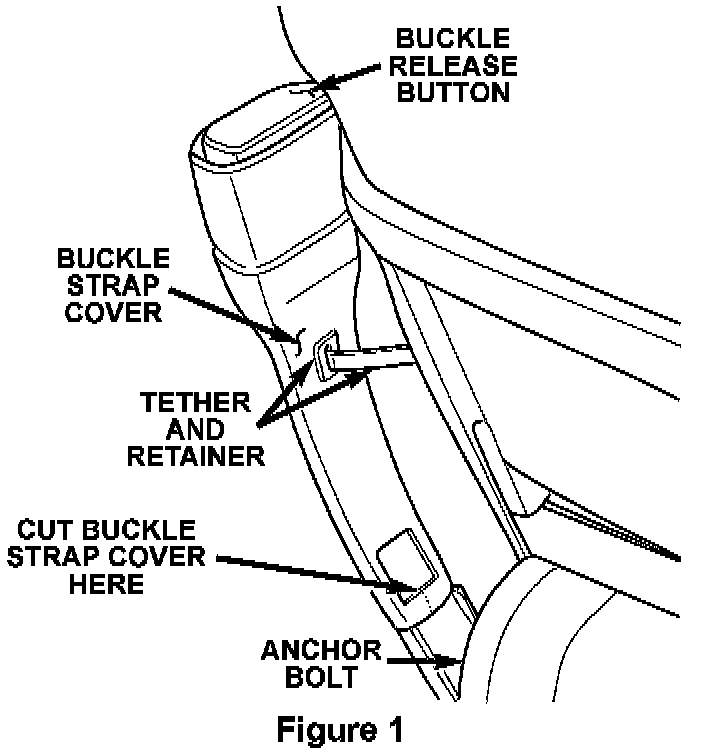

1. Pry the buckle assembly tether (elastic band) retainer out of the backside of the buckle assembly (Figure 1).

2. Rotate the buckle assembly rearward.

3. Using a utility knife, cut the narrow band on the backside of the buckle strap cover just above the anchor bolt (Figure 1).

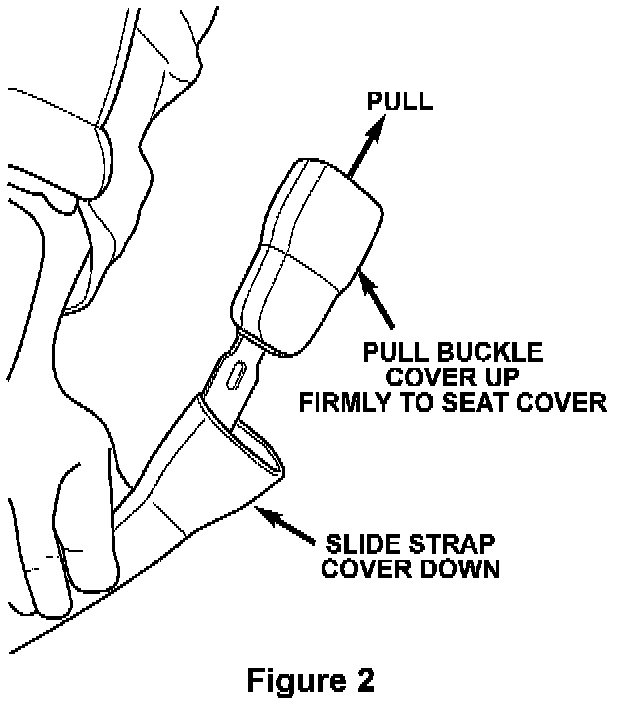

4. Slide the strap cover down as far as it will go to allow access to the buckle assembly (Figure 2).

5. Firmly pull the buckle cover up (towards the release button) to seat the cover on the buckle (Figure 2).

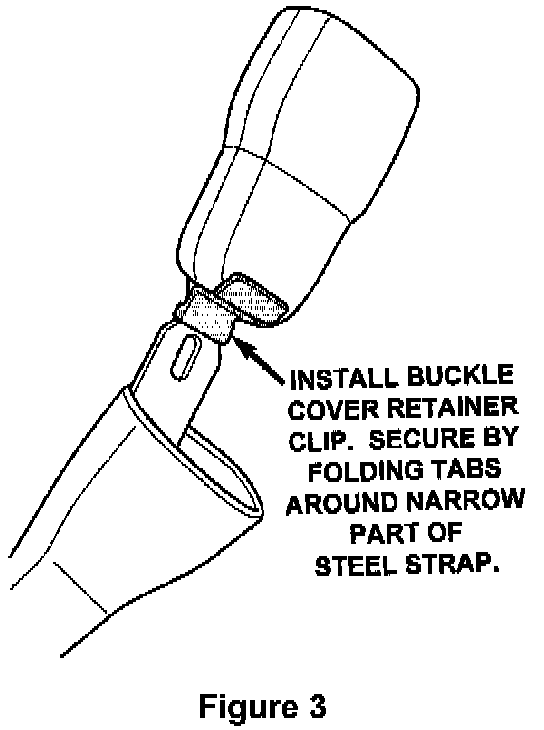

6. Install one of the supplied buckle cover retention clips on the buckle strap. Secure the clip by bending the retaining tabs around the narrow section of the steel strap (Figure 3).

IMPORTANT:
Do not pinch the seat belt switch wire on the driver's seat belt assembly.

7. Reinstall the strap cover by sliding it up to its original position.

8. Rotate the buckle assembly to the upright position.

9. Install the tether and retainer (Figure 1).

NOTE:
The elastic band must be pushed through the steel strap opening before the plastic retainer can be snapped into position.

10. Repeat Steps 1-9 on the other front seat belt buckle assembly.

11. For vehicles equipped with Quad Seats: Repeat Steps 1-9 on each rear Quad (bucket) seat belt buckle assembly using two additional clips, PN CCRR7422.
