Part 1 of 4
Part 1 of 4

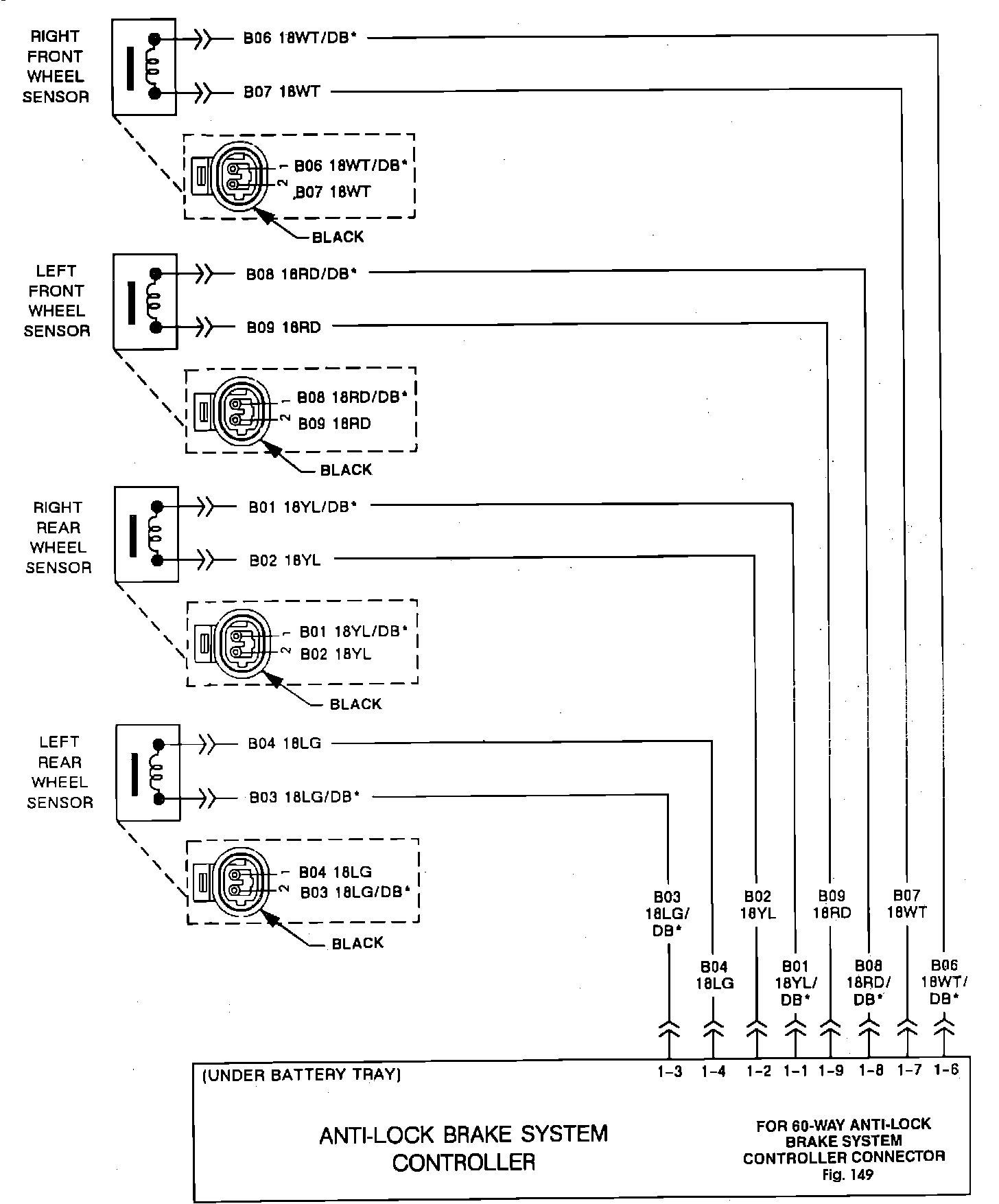

Anti-Lock Brake System:
Anti-Lock Brake System:
Anti-Lock Brake System:
Anti-Lock Brake System:
