Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge and Ram
>>
1991
>>
Daytona Shelby L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
>>

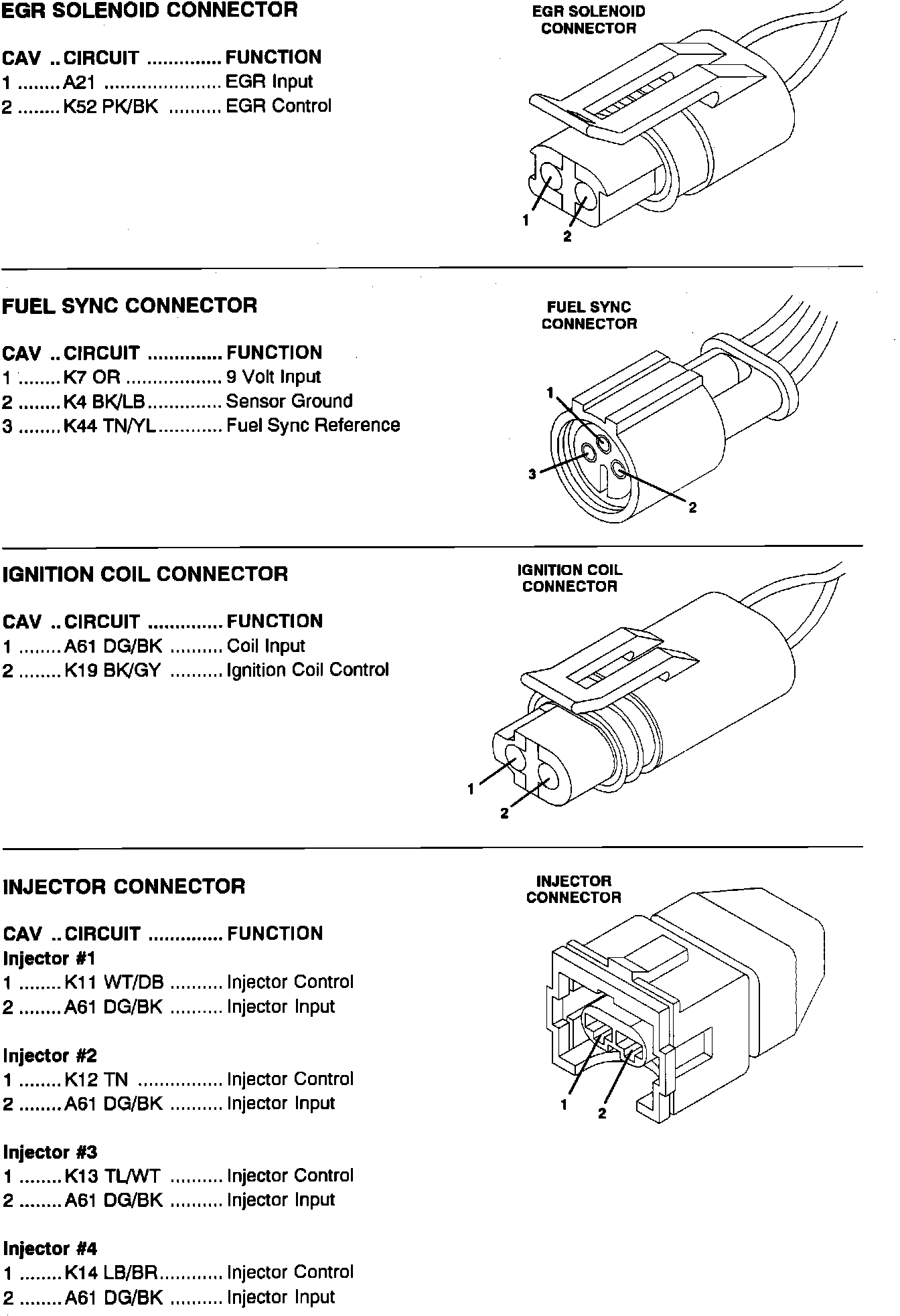

Engine Management System Connectors
Engine Management System Connectors
Component Connector Identification:
Component Connector Identification:
Component Connector Identification:
Component Connector Identification:
