Home >> Dodge and Ram >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-35A Checking Idle Speed Motor Operation >> Part 1 of 2

Part 1 of 2

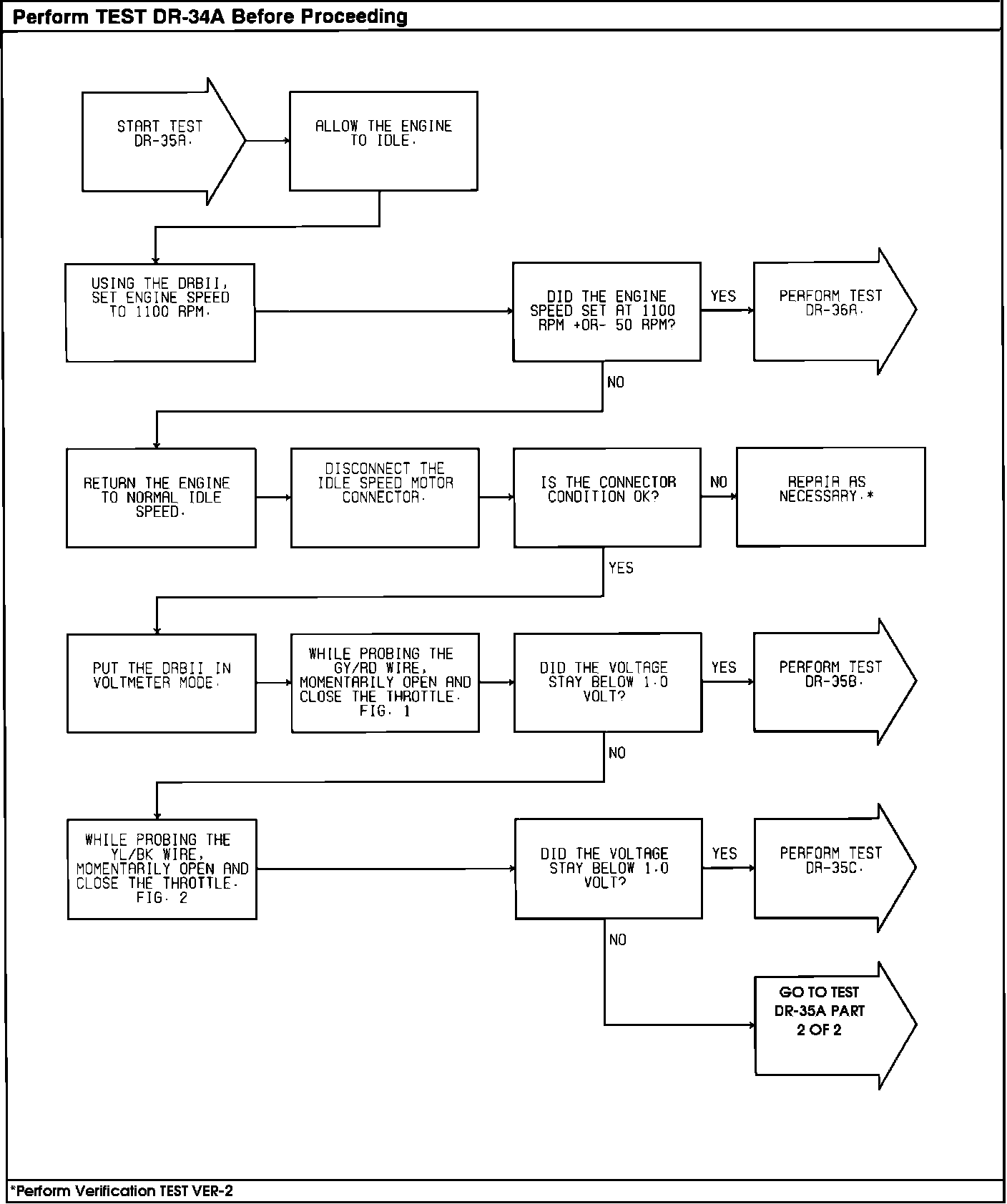

Test DR-35A - Checking Idle Speed Motor Operation:



Test DR-35A - Checking Idle Speed Motor Operation:
