Home >> Dodge and Ram >> 1991 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Rear Lighting >> Convertible

Convertible

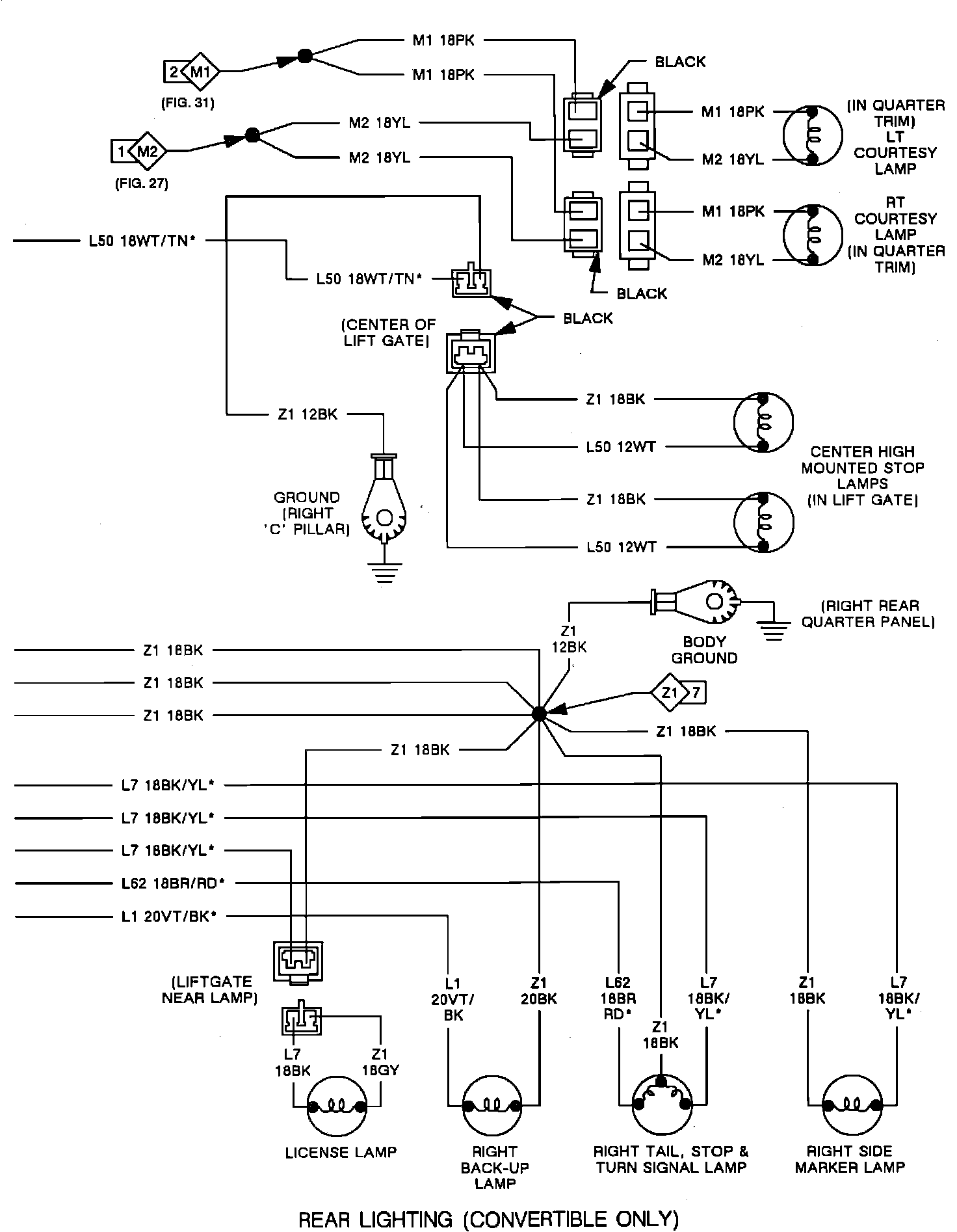

Rear Lighting (Convertible):



Rear Lighting (Convertible):
