NF-9A Checking Engine Controller Grounds

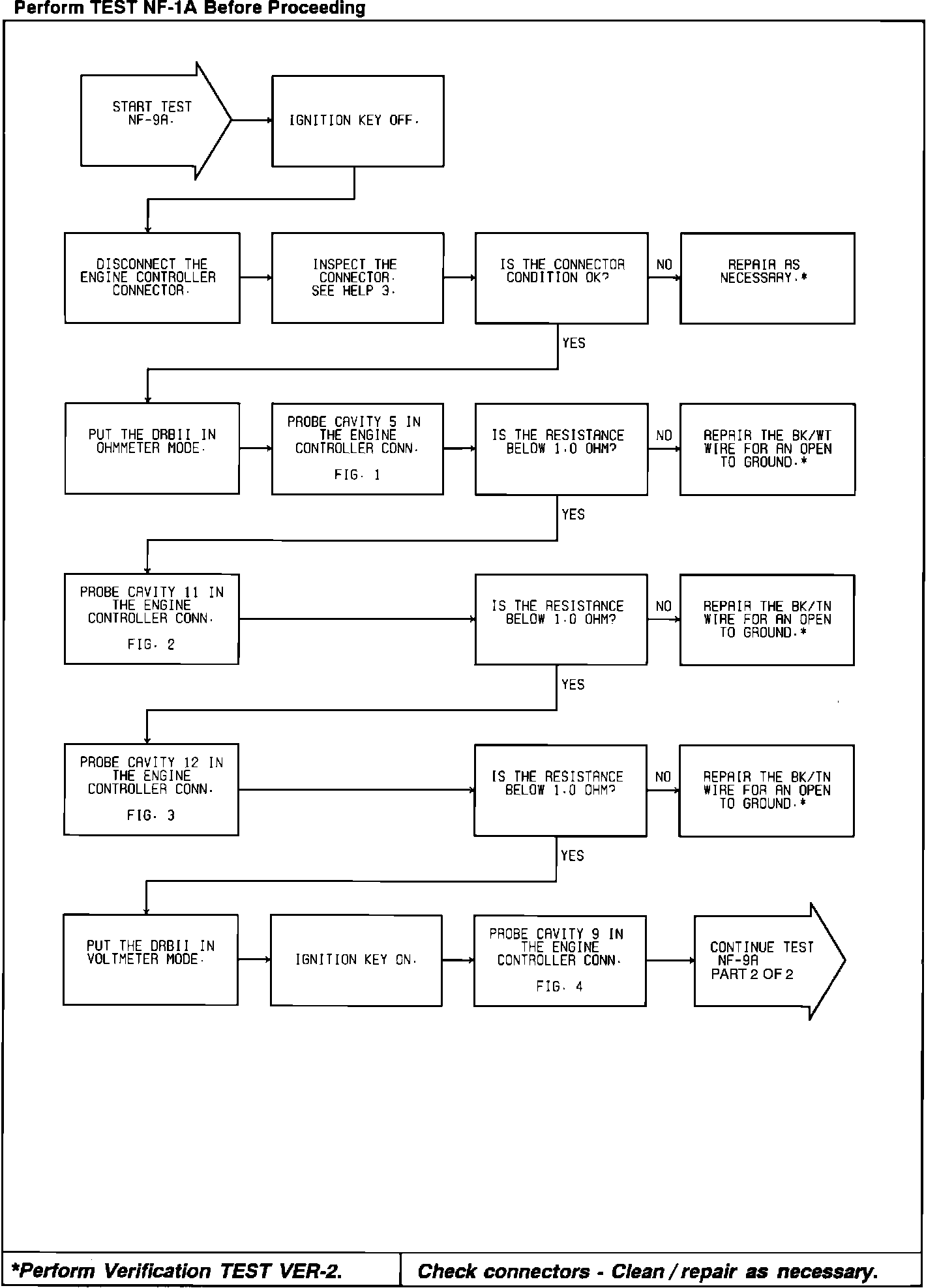

Checking Engine Controller Grounds And Power Circuits:

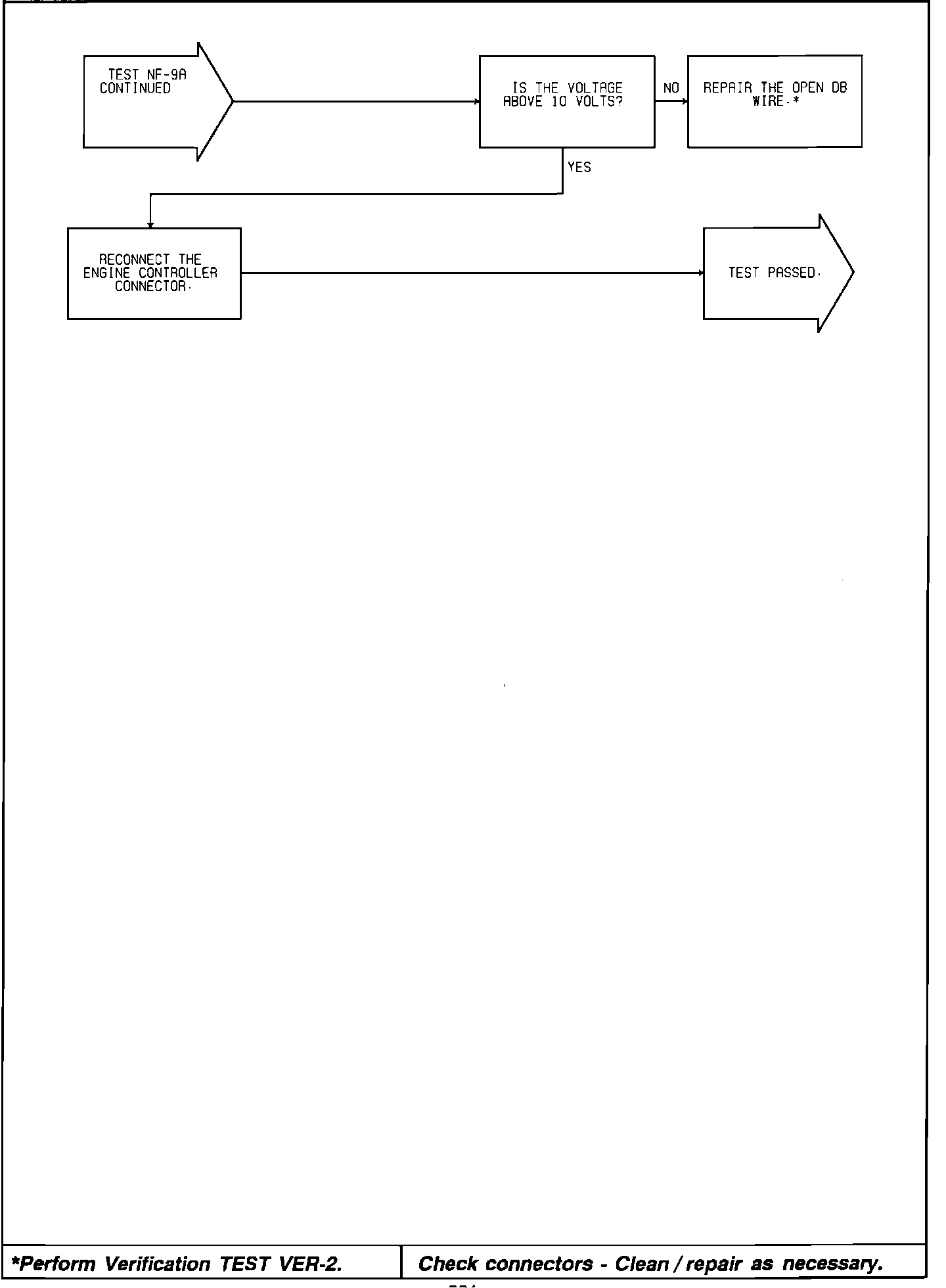

Checking Engine Controller Grounds And Power Circuits:



Checking Engine Controller Grounds And Power Circuits:
