Coolant Temperature Sensor Removal and Installation

WARNING: Wait until the temperature Is below 50°C [120°F] before removing the coolant system pressure cap. Failure to do so can cause personal injury from heated coolant spray.

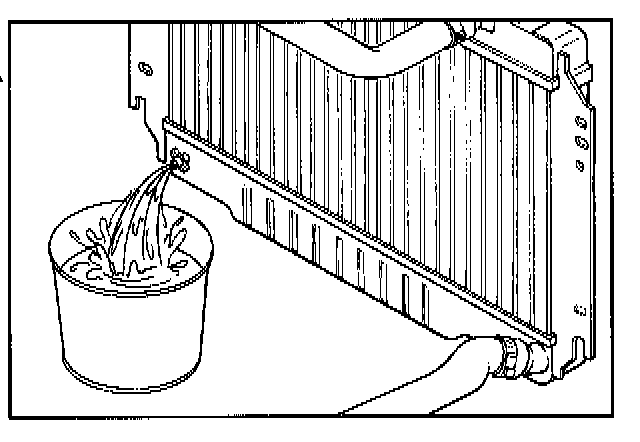

Drain the coolant system by opening the drain valve on the radiator. A drain pan with a capacity of 20 liters [5 U.S. gallons] will be adequate to hold the coolant.

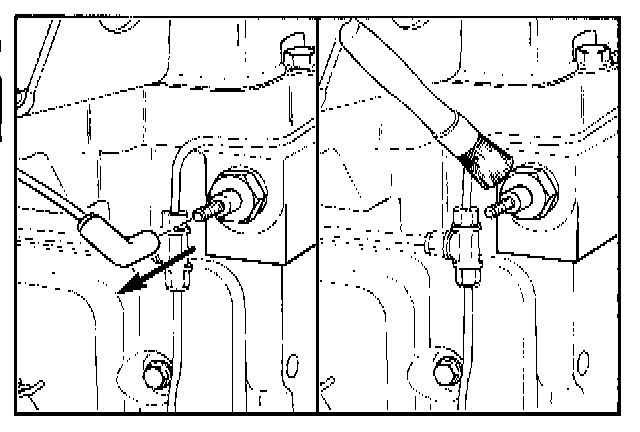

Disconnect the temperature sensor wiring. Clean the area around the sensor thoroughly.

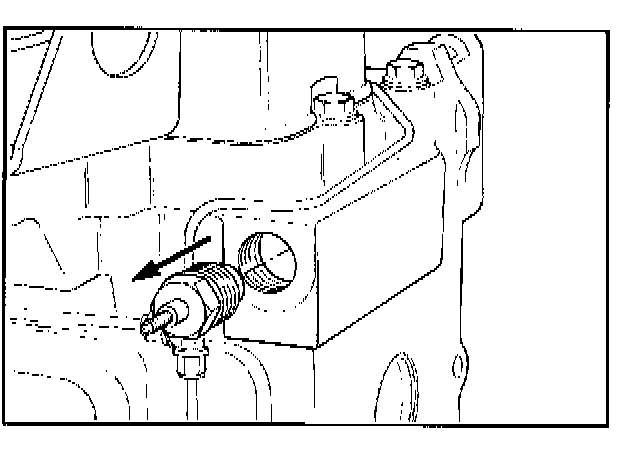

Remove the temperature sensor.





Apply liquid teflon sealant to the threads when installing the temperature sensor. Re-connect the wiring.

Tighten the sensor.

Torque Value: 24 N-m [18 ft-lbs]

Re-fill the cooling system.
