Home
>>
Dodge and Ram
>>
1994
>>
Caravan V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
>>
With Transmission Control Module
With Transmission Control Module

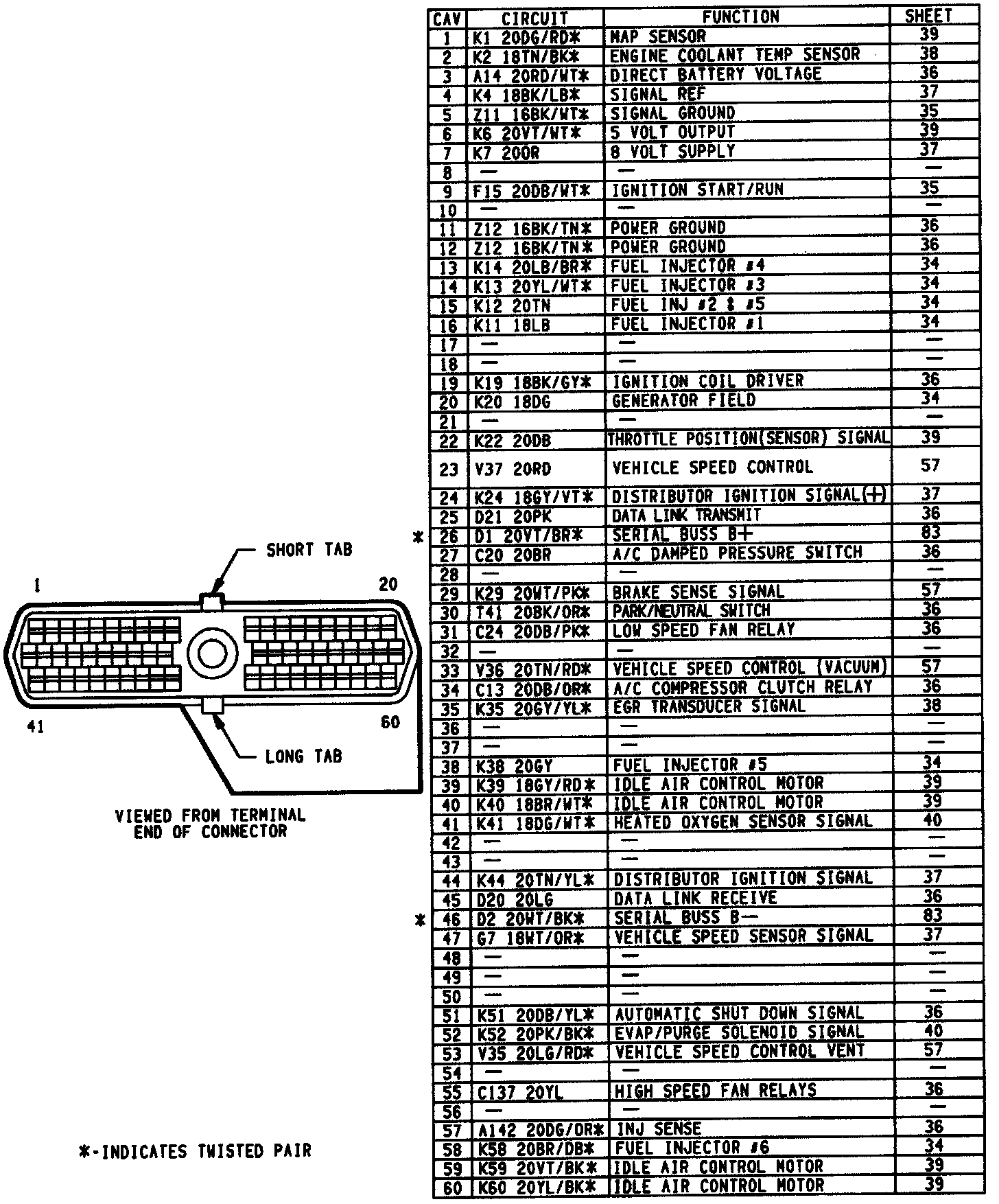

Powertrain Control Module 60 Way Connector (Engine With TCM):
