A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-5A
SC-5A

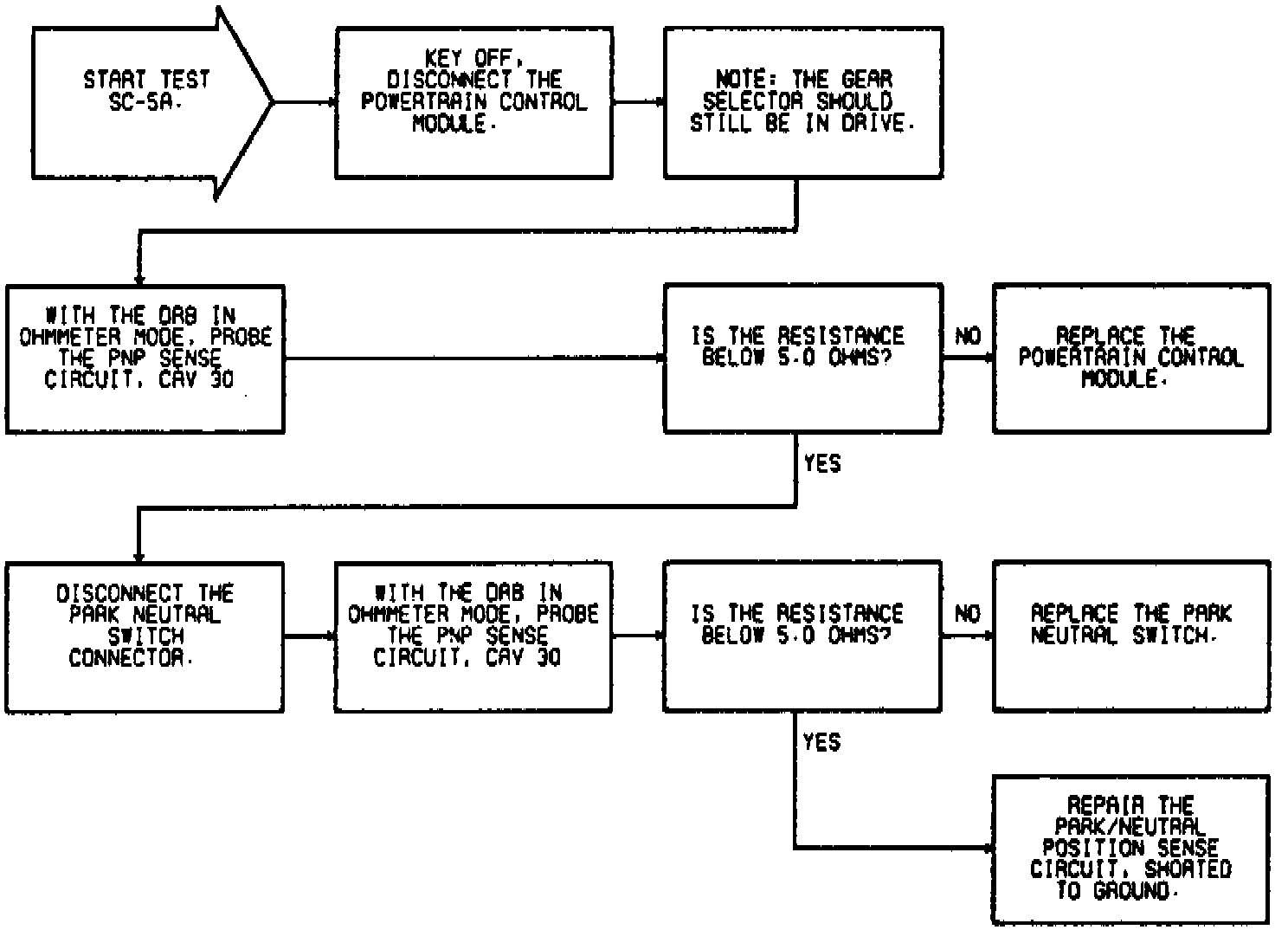

Fig. 79 Test SC-5A: Park/Neutral Position Switch Sense:
