Data Link Connector: Locations

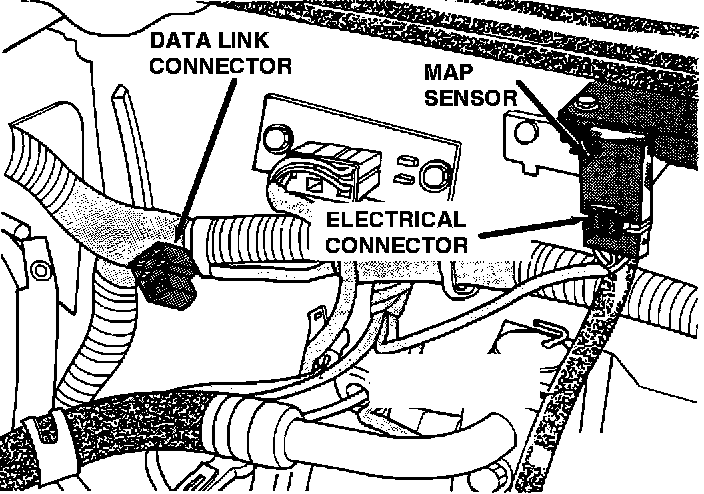

Data Link Connector Location:
Connector is located in engine compartment next to Powertrain Control Module (PCM).
