Electrical - Trailer Tow Brake Wire Location
NO: 08-41-94SUBJECT:
Trailer Tow Brake Wire Location
DATE: Aug. 5, 1994
DISCUSSION:

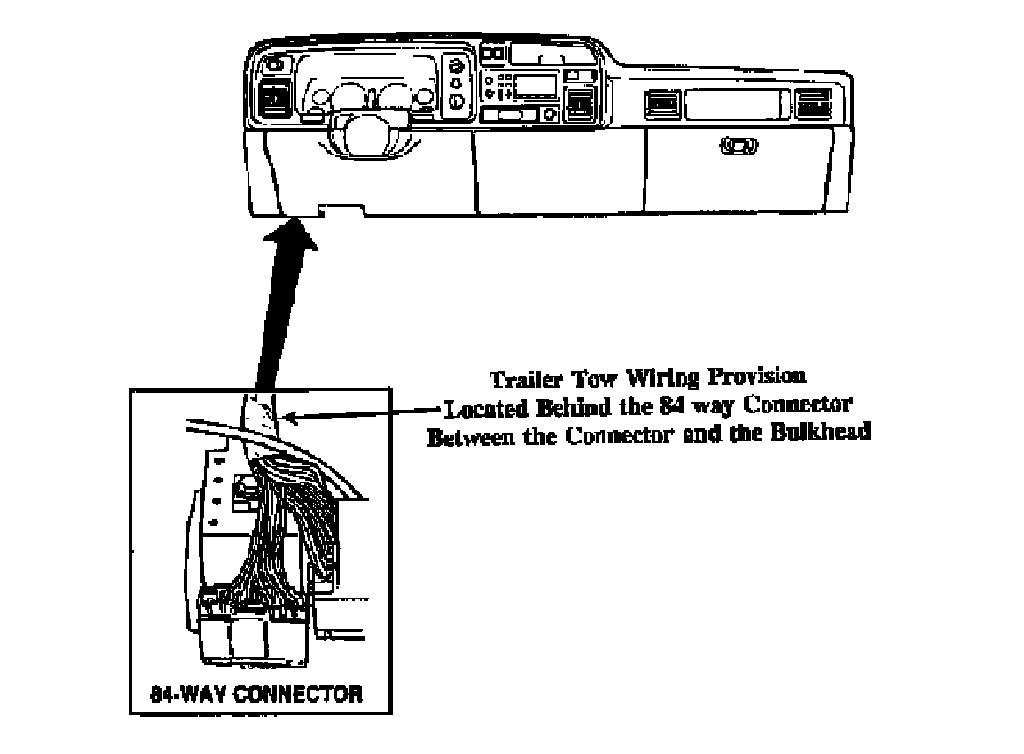

Vehicles equipped with the trailer tow package include wiring provisions for an electric brake actuator. The wire is light blue and is located under the instrument panel behind the 84 way connector. The wire is labeled "Trailer Tow" and taped to the main harness. The wire connects the trailer brake actuator output to pin 2 of the 7 way trailer tow connector. (See illustration)
POLICY:
Information Only
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
