Servo Installation

1. Install rear servo piston, spring and spring retainer. Compress rear servo spring and retainer with Compressor Tool C-3422-B, or equivalent.

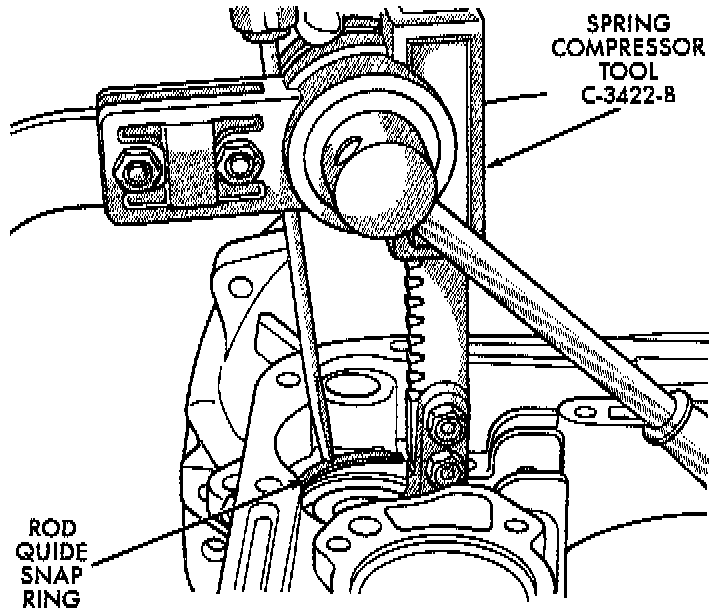

2. Install front servo piston, spring and rod guide. Compress front servo rod guide with Valve Spring Compressor C-3422-B, or equivalent and install servo snap ring, or equivalent.
