Transfer Plate Assembly

1. Install rear clutch and rear servo check balls in transfer plate.

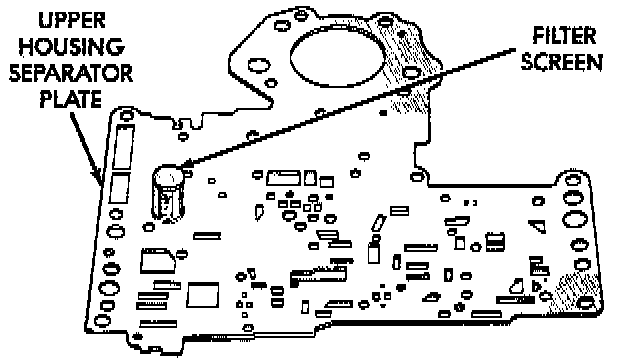

2. Install filter screen in upper housing separator plate.





3. Align and position upper housing separator plate on transfer plate.
4. Install brace plate. Tighten brace attaching screws to 4 Nm (35 inch lbs.) torque.
5. Install remaining separator plate attaching screws. Tighten screws to 4 Nm (35 inch lbs.) torque.
