Catalytic Converter: Service and Repair

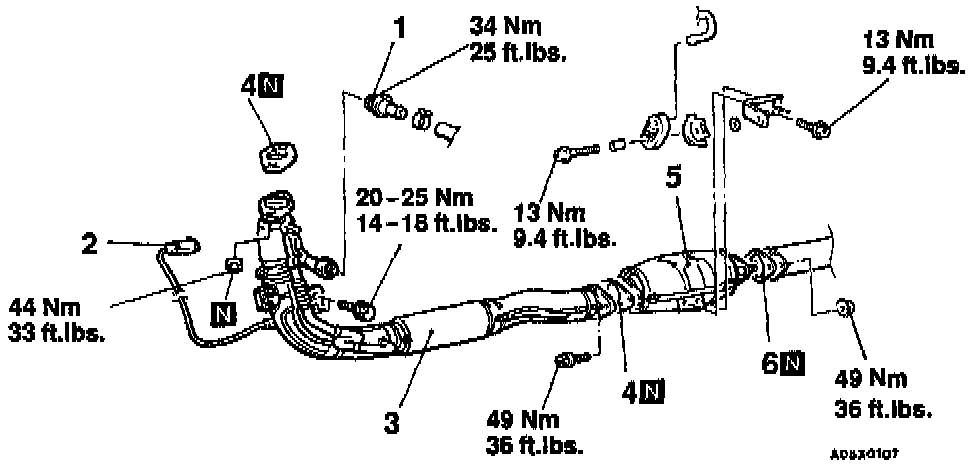

REMOVAL AND INSTALLATION
Pre-Removal Remove Under Cover

Removal Steps
1. Pulsed secondary air injection valve
2. Heated oxygen sensor connector
3. Front exhaust pipe
4. Gasket
5. Catalytic converter
6. Gasket
7. Reverse procedure to install

Post installation Install Under Cover

INSPECTION
Inspect for damage, cracking or deterioration.
- Replace the catalytic converter if obvious damage is found.
