Starter Motor: Service and Repair

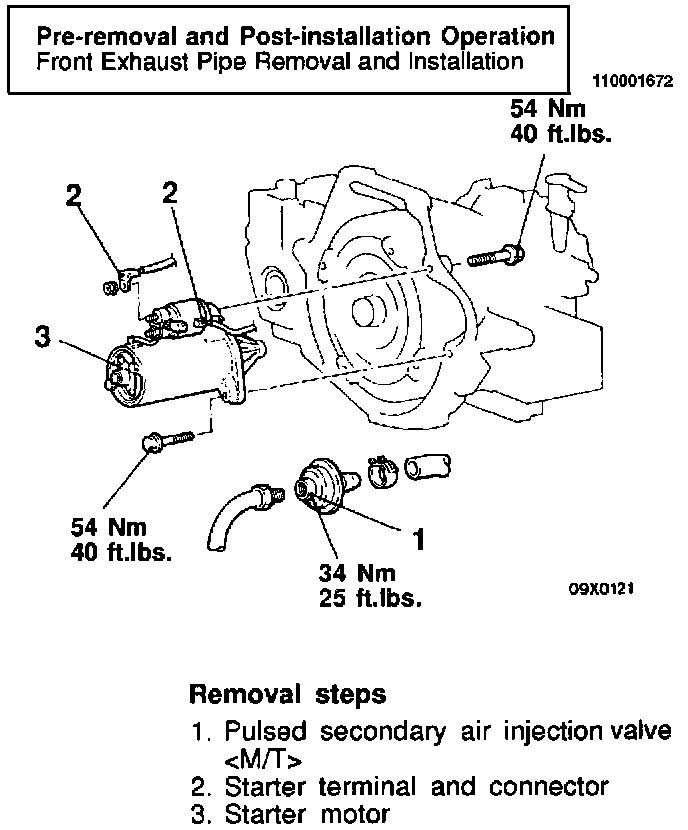

Starter Motor - Removal And Installation:
Pre-Removal and Post-Installation Operation -
Front exhaust pipe
REMOVE 1.
Pulsed secondary air injection valve
.
2. Starter terminal and connector.
3. Starter motor.
INSTALL
1. Starter motor.
2. Starter terminal and connector.
3. Pulsed secondary air injection valve
