Front Door Latch: Adjustments

LATCH/LOCK CONTROL ADJUSTMENTS
The lock knob, inside release handle and outside release handle can be adjusted when door latch components are replaced or do not operate properly.

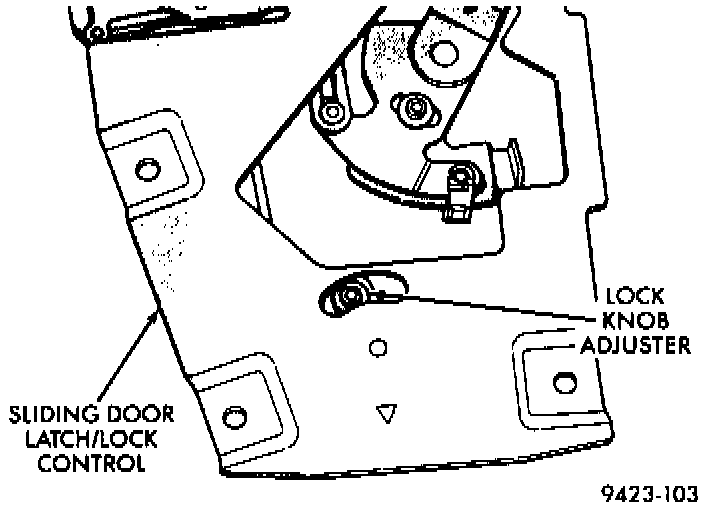

Lock Knob Adjuster:

LOCK KNOB ADJUSTMENT
1. Remove sliding door trim panel.
2. Release sliding door latch and slide the door open about 100 mm (4 in.).
3. Through elongated slot at the bottom of the control, loosen the socket head screw holding lock mechanism together.
4. Pull the lock link rod forward locking the latch.
5. Tighten socket head screw to hold lock mechanism together.
6. Test door lock operation
7. Install door trim panel.
